BERG BIM-160F - BIM-210 H;BIM-210 F Exploded Diagram

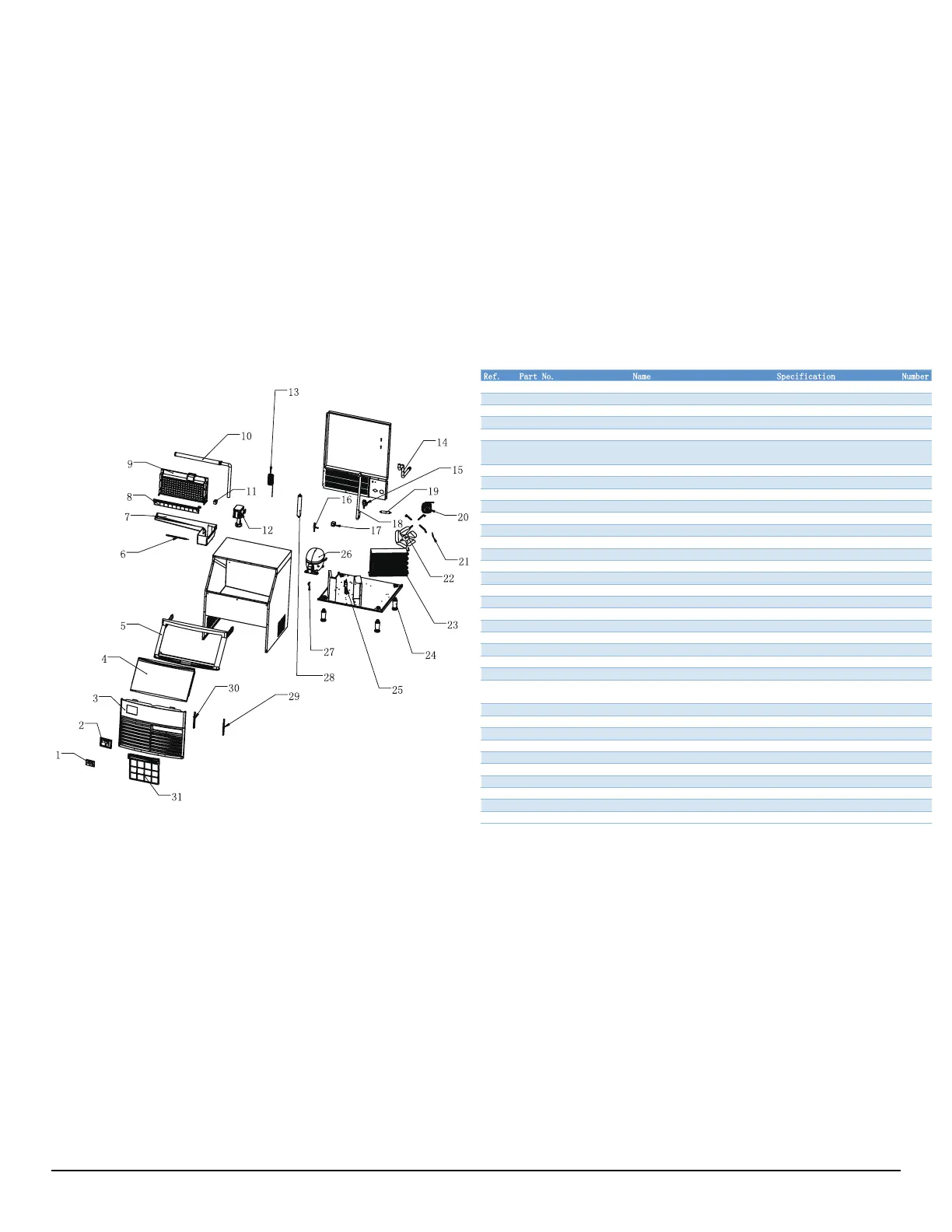

Exploded Diagram for BIM-210H/BIM-210F
32、33、
34、
35
Ref. Part No. Name Specification Number
1 03.012.043 Display Panel 66414762-01 No voice, with cleaning button 1
2 05.004.005 Display panel bracket for Vertical type ABS Injection molding Black grey 1
3 05.015.013 Front Ventilation window ABS Injection molding Black grey Front pumping 1
4 05.013.016 Door panel assembly - black gray ABS Injection molding Black grey Front pumping 1
5 05.014.009 Door frame assembly - black gray ABS Injection molding
Black grey Front pumping 1
6 06.017.003 cold light
9 lamp X3ES-A fog blue L:180 white terminal, red
and black line 1200mm
1
7 05.001.005 sink-160 160 Injection molding overflow M5002 1
8 03.004.003 Skateboard 18 Injection molding homemade M1071 1
9 03.003.008 evaporator-91 Evaporator - 91. 1
10
SL.FB.32480654.
Sprinkler tube assembly 18 columns 1
11 03.013.008 Ice full sensor - hall type 1400mm-3 line with Chuangli Logo 1
12 03.009.005 Pump assembly-60~280 White 115 v 1
13 02.002.002 capillary TP2M-OD2.8*ID1.27*T/*2600mm 1
14 17.009.001 Off-board drain Bellows grey 1.6m M26 1
15 04.003.010 inlet valve 110~120V 4W 50/60HZ blue 1266220 1.2L 1
16 04.005.003 Defrost valve body 6A 1
17 04.007.006 Defrosting valve coil 115V 6A 800MM 1
18 09.0
05.003 Silicone hose white φ14*φ9.5 1
19 02.005.002 dry filter φ19*150*3.1*6.5 1
20 03.006.011 fan EBM 10W 115VAC 50/60HZ 1
21 05.016.016 Condensation sensor Stainless steel probe 1000mm 1
22 17.007.003 Fan blades φ200 28° 1
23 04.010.008 Condenser Ventilated 200A 1
24 03.007.005 Foot body Ice Bin foot 4
25 03.011.038 PC board 401
Vertical type machine, switching power supply,
temperature control, with cleaning, with voice
1
26 03
.001.093 Compressor NLE8.0CN 115V / 60HZ / R290 1
27 06.016.005 LED lamp reed tube magnetic switch 1800mm 1
28 02.003.008 gas-liquid separator ￠30*220*8.1*8.1 1
29 05.016.023 Filter right card slot ABS Injection molding Black grey Front pumping 1
30 17.007.004 Filter left card slot ABS Injection molding Black grey Front pumping 1
31 05.016.024 Ventilation window filter ABS Injection molding Black grey Front
pumping 1
32 05.004.004
Vertical type machine Display board
ABS black gray 1
33 18.001.039 Control panel labeled -31 4 slots, 4 buttons, English 1
34 05.013.018 Outer door panel ABS Injection molding Black grey Front pumping 1
35 03.005.009 Foot block Injection molding φ51 M1015 4
November 2020
