BERG BIM-350F - Exploded Diagrams; Exploded Diagram for BIM-350 F;BIM-350 H

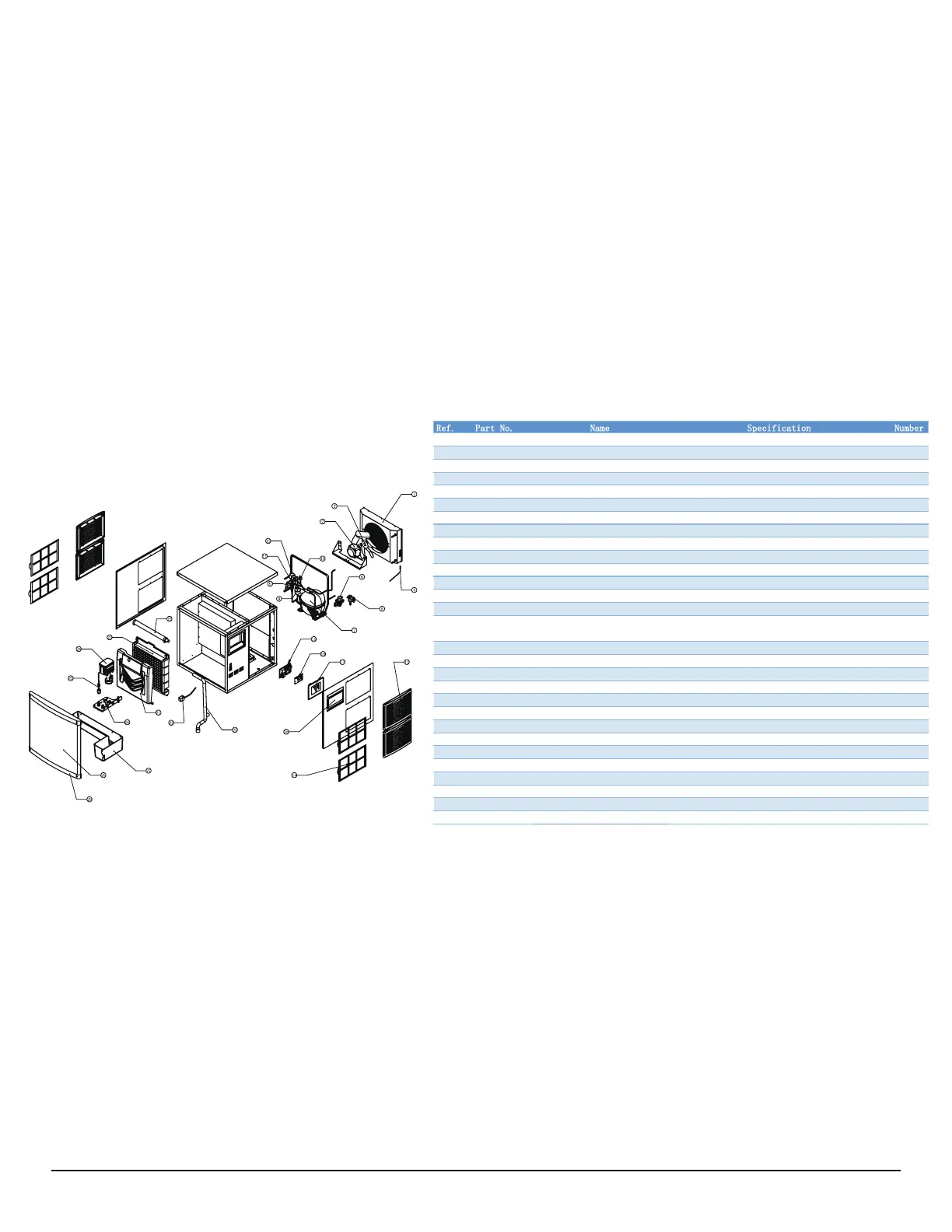

Exploded Diagram for BIM-350F/BIM-350H
Ref. Part No. Name Specification Number
1 03.005.041 microchannel condenser-329A HX-L116-99-SHCL005 1
2 03.006.028 fan-EBM
EBMPAPST M4Q045-DA11-04 70/18W 115VAC
1
3 03.007.008 Fan blades Φ254 34°, hair dryer, aluminum 1
4 04.010.008 Condensation sensor Stainless steel probe 1000mm 1
5 04.003.008 inlet valve 110~120V 4W 50/60HZ Blue 1266220 1.2L 1
6 04.002.006 drain valve DSVP12N-2LSX-120A 110V 60HZ 12W 74017-82 1
7 03.001.091 compressor-R290 SECOP, NLE11MN,115V,60Hz 1
8 02.006.002 dry filter φ19*150*3.1*6.5 1
9 04.004.017 expansion valve R290 NO.3 pool TUB 1
10 03.017.018 high-voltage
switch 2.4~1.9Mpa R290 1
11 04.005.003 Defrost valve body 6A 1
12 04.007.006 Defrost valve coil 115V 6A 800MM 1
13 05.015.003 Plastic ventilation window Injection molding Square M1075 1
14 05.016.005 Ventilation window filter Split machine M1035 1
15 03.011.038 PC board
Split machine, switch power supply, temperature
control, with cleaning, with voice
1
16 03.012.043 display board No voice, with cleaning button 1
17 05.006.004 Ele
ctrical control fixing plate Injection molding White voice M1109 1
18 05.005.002
Control panel cover - splitter
Injection Colorless transparent M1027 1
19
SL.FB.32480657.
Spray pipe 13 columns 1
20 03.003.010 evaporator 12 rows * 13 columns 1
21
SL.FB.32479801.
Skateboard ABS Injection molding White 1
22 03.013.009 Ice full sensor - Hall type 750mm-3 line with Chuangli Logo 1
23 09.001.001 upper water pipe Square tube spray pipe to water pump 1
24 03.010.001 water pump motor YJF61/20 110~115VAC 50/60Hz 4
25 04.010.016
Water level water temperature
4P 2M 1
26 05.002.003 Sink pump fixing plate Injection molding ABS white M1077 1
27 05.001.001 Sink 350 Injection molding M5004 1
28
BJ.FB.75630051.
Front panel SUS304-Drawing film-T0.6*613.94*555 1
29 05.018.001 Door plastic end cap Injection molding black main machine 1
November 2020
