BERG BIM-350F - Exploded Diagram for BIM-500 F;BIM-500 H

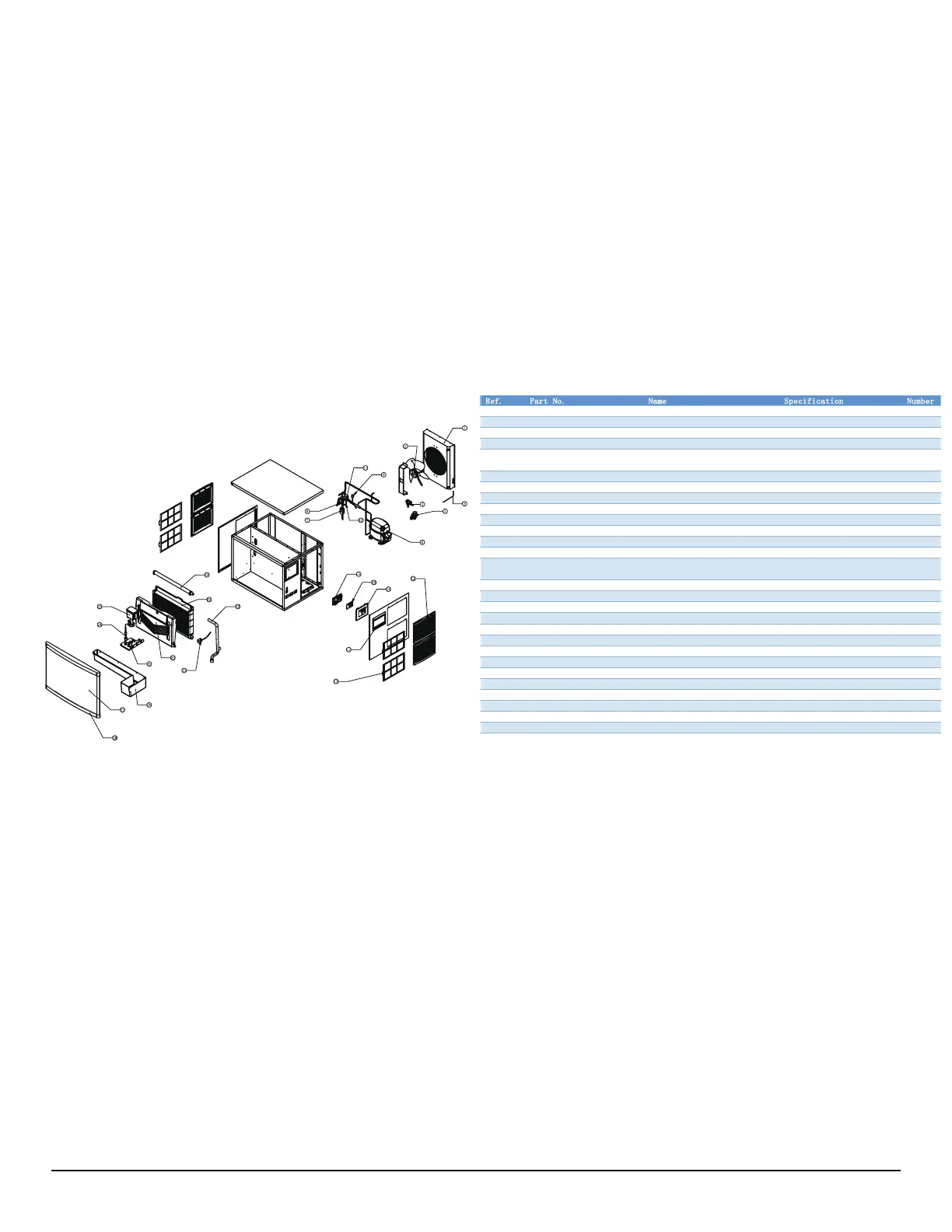

Exploded Diagram for BIM-500F/BIM-500H
Ref. Part No. Name Specification Number
1 03.005.042 microchannel condenser-529A HX-L116-99-SHCL006 1
2 03.006.021 Axial Fan YWF-4E-300B hair dryer, 110V~120V 60HZ
1
3 04.010.008 Condensation sensor Stainless steel probe 1000mm 1
4 04.003.008 inlet valve 110~120V 4W 50/60HZ Blue 1266220 1.2L 1
5 04.002.006 drain valve
DSVP12N-2LSX-120A 110V 60HZ 12W
74017-82
1
6 03.001.092 compressor-R290 115V / 60HZ / R290 1
7 02.006.002 dry filter φ19*150*3.1*6.5 1
8 04.004.018 expansion valve R290 NO.4 pool TUB 1
9 03.017.018 high-voltage switch 2.4~1.9Mpa R290 1
10 04.005.003 Defrost valve body 6A 1
11 04.007.006 Defrost valve coil 115V 6A 800MM 1
12 05.015.003 Plastic ventilation window Injection molding Square M1075 1
13 05.016.005 Ventilation window filter Split machine M1035 1
14 03.011.038 PC board
Split machine, switch power supply,
temperature control, with cleaning, with voice
1
15 03.012.043 display board No voice, with cleaning button 1
16 05.006.004 Electrical control fixing plate Injection molding White voi
ce M1109 1
17 05.005.002 Control panel cover - splitter machine Injection Colorless transparent M1027 1
18 SL.FB.32480661.00 Spray pipe 20 columns 1
19 03.003.013 evaporator 12 rows * 20columns 1
20 SL.FB.32479807.00 Skateboard ABS Injection molding white 1
21 03.013.009 Ice full sensor - Hall type 750mm-3 line with Chuangli Logo 1
22 09.001.002 upper water pipe Square tube spray pipe to water pump 1
23 03.010.001 water pump YJF61/
20 110~115VAC 50/60Hz 1
24 04.010.016 Water level water temperature sensor 4P 2M 4
25 05.002.001 Sink pump fixing plate Injection molding ABS white M1074 1
26 05.001.002 Sink 500 Injection molding M5005 1
27 05.018.002 Front panel SUS304-Drawing film-T0.6*814.7*555 1
28 BJ.FB.75630052.00 Door plastic end cap Injection molding black main machine 1
November 2020
