8.3.5. Oil level
The proper oil level in the oil tank or screw block is of critical importance for reliable and
correct operation of the compressor.
Maintenance procedure:
- Stop the compressor and close the pressure conduit valve.
- Switch off the power supply and take measures to prevent it from being unintentionally
switched on again by unauthorised persons.
- Verify that the machine has been de-energised (0 V).
- Wait minimum 5 minutes and then open the compressor cover.
- Check that the system has been emptied by slowly unscrewing the oil filler cap (use
protective clothing) (Fig.10). The compressed air can be hot.
- Check the oil level.
- If necessary, fill the oil up to the level that corresponds to 3/4 of the oil level indicator
field height, using the same type of oil.
- Screw the oil fill plug tightly by hand.
- Start the compressor.
- Check the oil fill plug for leaks, and if necessary replace the sealing ring.

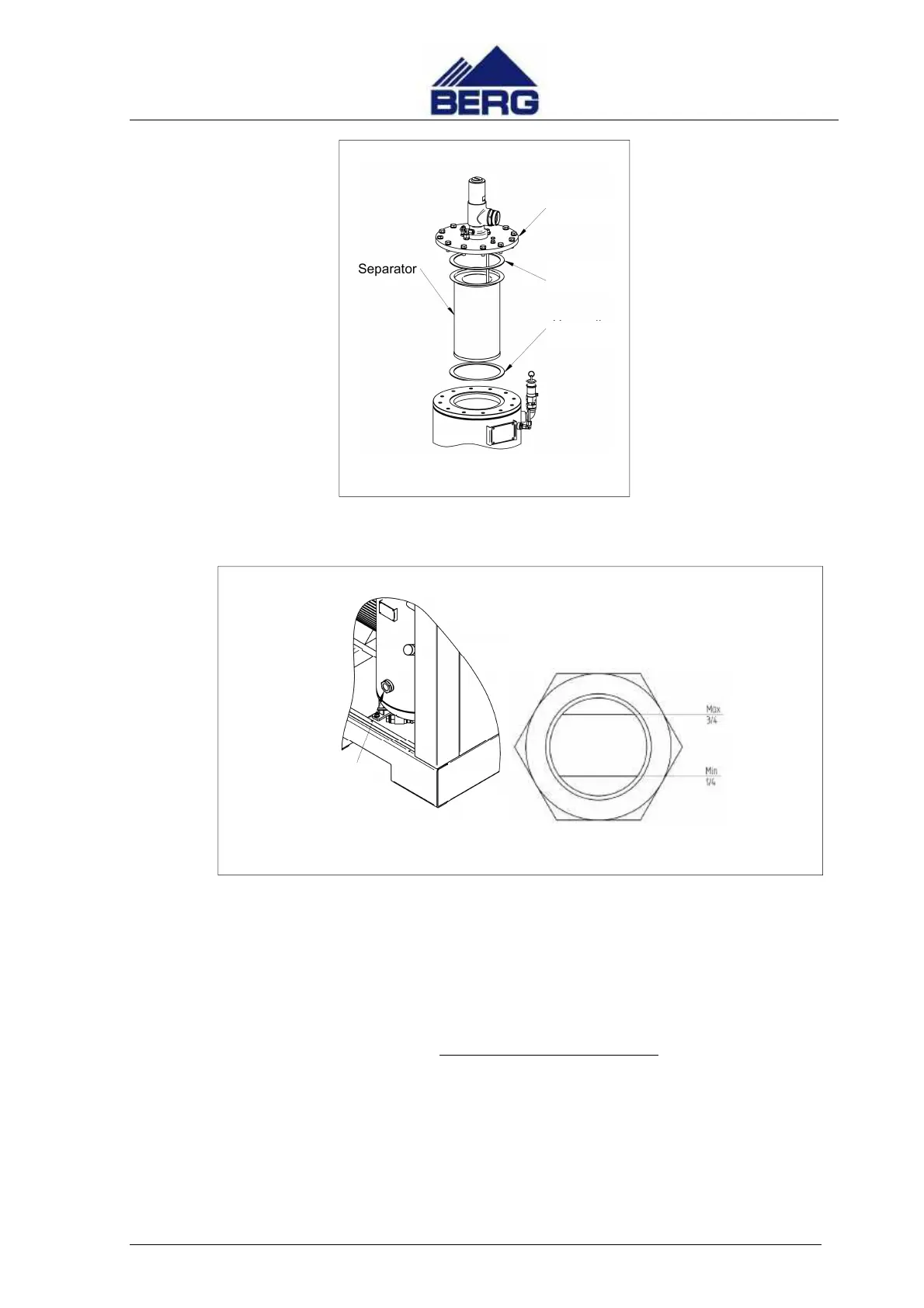

Fig. 18 Internal separator.
Fig. 19 Oil level in the compressors.
Seal
Seal
Cover
