Bergen B35:40 - Samples of Standard Panels; Control Room Panel; Load Sharing Panel: (Conv. Propulsion Only)

3.02
, Gas
Safety, Control and Monitoring System
Page 9 : 9
0211 BC

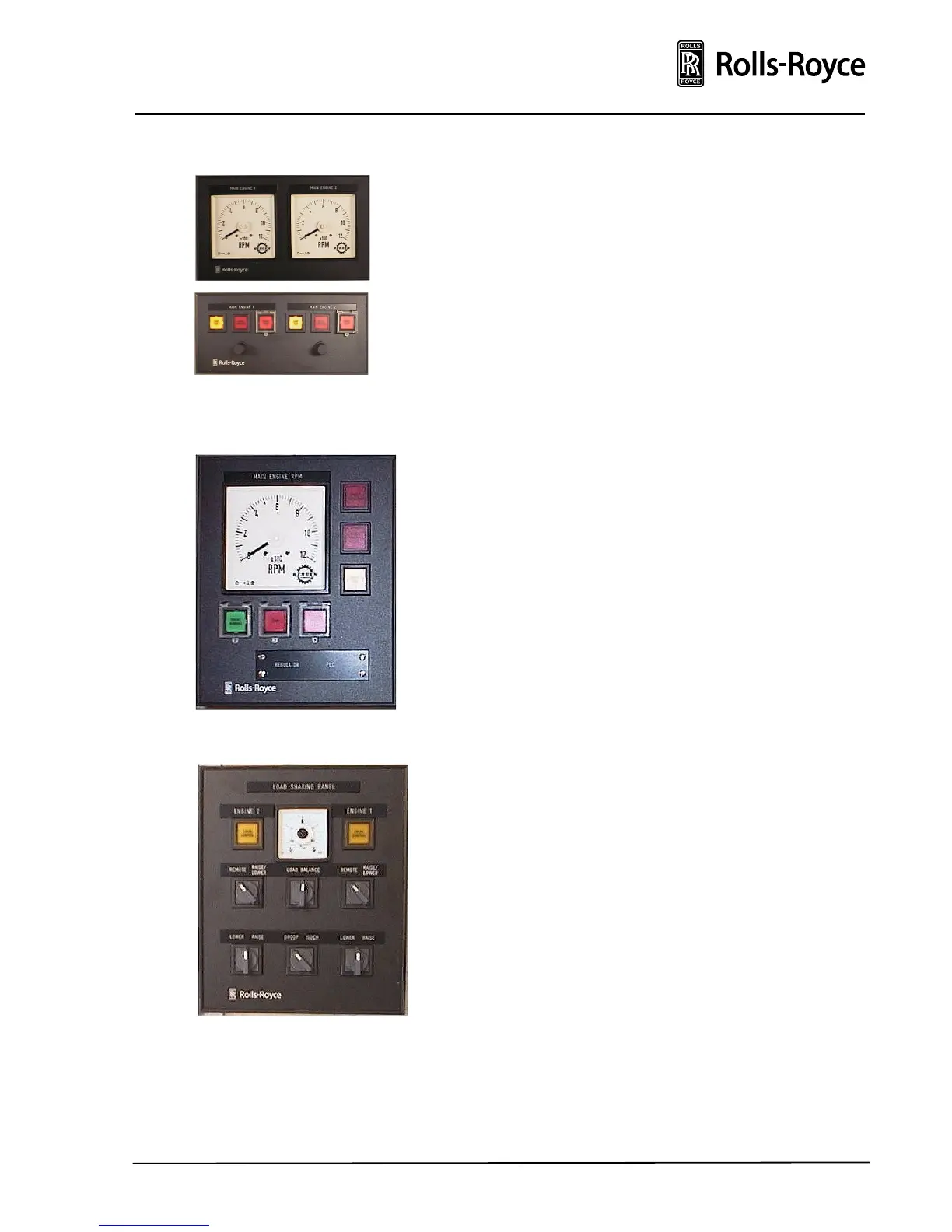

Samples of standard panels.
Bridge panel: (conventional propulsion only)
Function:
• Rpm indicator
• Emergency stop
• Indication emergency stop
• Lamp test, light dimmer
• Auto stop/override (optional and applicable if
accepted by class requirements)
Control room panel:
Function:
• Rpm indicator
• Start button
• Indication running
• Stop button
• Indication stop
• Reset
• Indication reset
• Indication start interlock
• Lamp test
• Connector for tuning of speed controller
• Connector for PLC
• Emergency stop (optional)
Load sharing panel: (conv. propulsion only)
This panel is used for two engines running on a twin-
input gear.
With help from the panel functions, the built-in load
sharing capability of the Woodward 723Plus speed
control comes to use.
This makes isochronous load sharing possible.
(i.e. load sharing at constant RPM)
Content:
• Switch for "ISOCH" or "DROOP"
• 2 switches for "RAISE LOWER" or "REMOTE"
• 2 lamps for "LOCAL CONTROL" (lights on if
switch on engine is in Local)
• 2 rocker switches for "RAISE" and "LOWER".
• 1 rocker switch for load control
• Load balance indicator
