Repair Parts 11
1
2
3
4
5
6
7
8
10
9
15A
15B
18
16
19
17
20
22
21
2825 0597
11
12
13
14
13
13
13
Nozzle
Cleanout
Port
Model and Horsepower
Key Part No. 7HN 10HN
No. Description Used 3/4 HP 1 HP
1 Motor - 60 Cycle - 115/230V 1 A100DHL A100EHL
#§2 Water Slinger 1 C69-2 C69-2
3 Seal Plate 1 L3-10 L3-10
#§4 Gasket - Seal Plate 1 C20-21 C20-21
#§5 Shaft Seal 1 U109-6A U109-6A
#6 Impeller 1 J105-8PAN J105-22PA
#7 Volute Diffuser Assembly 1 L1-23P L1-23P
8 Screw 3 U30-489SS U30-489SS
#§9 Diffuser Ring 1 L21-1 L21-1
10 Venturi (1) N32P-64 N32P-65
11 Nozzle (1) J34P-44 J34P-44
12 Quick Connect - 1/4” NPT 1 U11-217P U11-217P
13 Pipe Plug - 1/4” NPT Hex Hd. 4 U78-941ZPV U78-941ZP
14 Pump Body Assembly 1 N176-44G N176-44GA
15A Capscrew - 3/8” - 16 x 1-1/2” Lg. 2 U30-76ZP U30-76ZP
15B Capscrew - 3/8” - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP
16 Base 1 J104-9C J104-9C
17 Rubber Pad 1 C35-5 C35-5
18 Switch Tube 3/8” O.D. x 14-1/2” Lg. 1 U37-672P U37-677P
19 Quick Connect Elbow - 1/4” NPT 1 U11-218P U11-218P
20 Pressure Switch 1 U217-1216 U217-1216
21 Locknut - 1/2” NPT 1 U36-112ZP U36-112ZP
22 Connector 1 L43-5C L43-5C
REPAIR PARTS LIST
§ Seal and Gasket Kit PP1551 PP1551
# Overhaul Kit PP1563 PP1564
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
SERVICE KITS
AVC Port

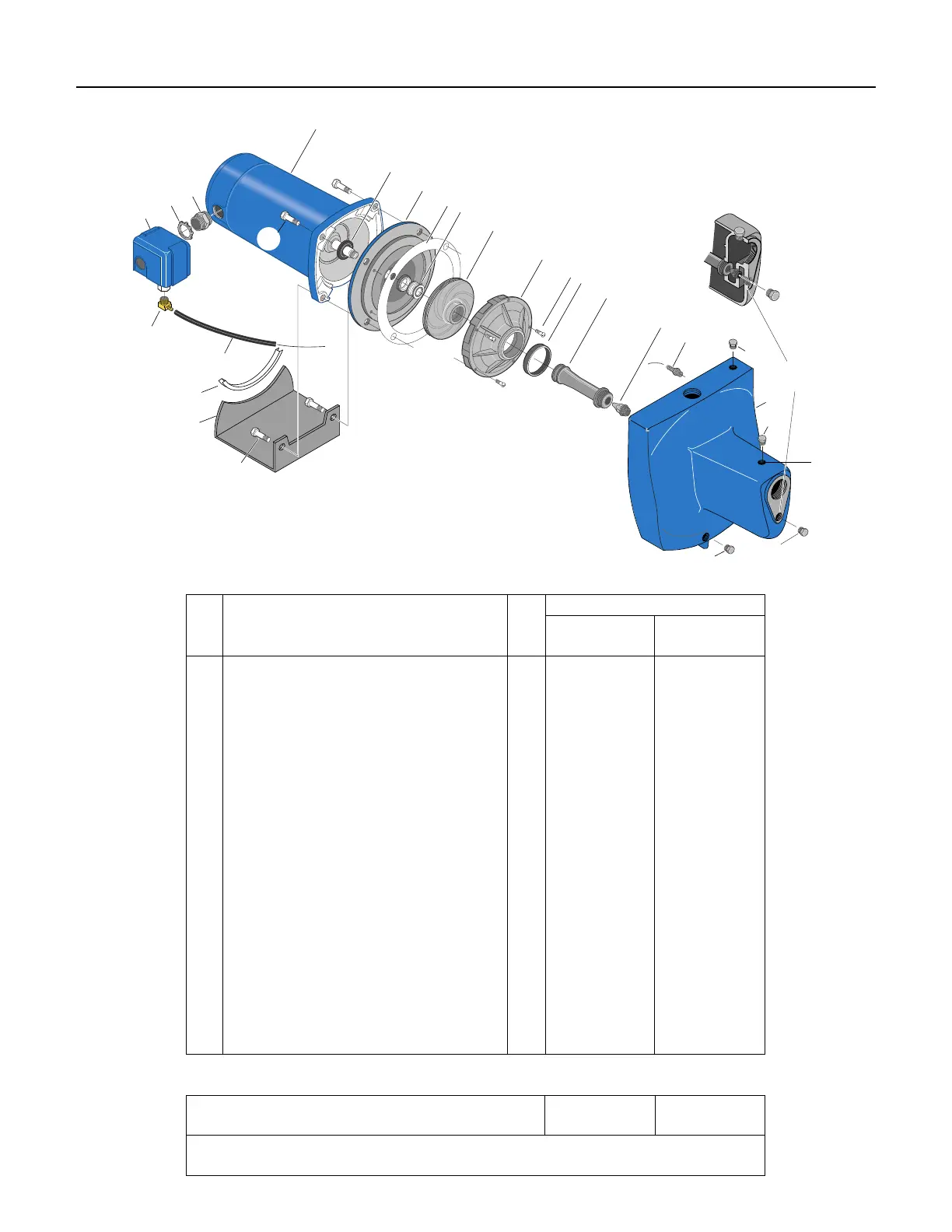

Exploded View
Models 7HN and 10HN
