Berkeley HN Series User Manual

Repair Parts 10
1
2
3
4
5
6
7
8
11
12
12
12
12
11A
9
10
11B
18
19
20
14
13
15
16
17
2763 0197
Nozzle
Cleanout
Port
REPAIR PARTS LIST
Model and Horsepower
Key Part No. 5SN 7SN 5HN
No. Description Used 1/2 HP 3/4 HP 1/2 HP
1 Motor 1 A100CLL A100DLL A100CHL
2 Hex Capscrew - 3/8” - 16 x 1-1/4” Lg. 4 U30-75ZP U30-75ZP U30-75ZP
#§3 Water Slinger 1 C69-2 C69-2 C69-2
4 Seal Plate 1 N3-9 N3-9 N3-9
#§5 Seal Plate Gasket 1 N20-35 N20-35 N20-35
#§6 Shaft Seal 1 U109-6A U109-6A U109-6A
#7 Impeller 1 J105-40P J105-42P J105-42P
#8 Diffuser 1 L1-25P L1-25P L1-25P
#§9 Diffuser Ring 1 N20-34 N20-34 N20-34
10 Quick Connect - 1/4” NPT 1 U11-217P U11-217P U11-217P
11 Pump Body Assembly 1 N176-43G N176-43GB N176-43GB
11A Venturi (1) N32P-66 N32P-75 N32P-75
11B Nozzle (1) N34P-17 N34P-21 N34P-21
12 Pipe Plug - 1/4” NPT Hex Hd. 4 U78-941ZPV U78-941ZPV U78-941ZPV
13 Base 1 J4-9 J4-9 J4-9
14 Rubber Pad 1 C35-5 C35-5 C35-5
15 Tube 3/8” O.D. x 14-1/2” Lg. 1 U37-672P U37-672P U37-672P
16 Quick Connect Elbow - 1/4” NPT 1 U11-218P U11-218P U11-218P
17 Pressure Switch 1 U217-1225 U217-1225 U217-1216
18 Locknut - 1/2” 1 U36-112ZP U36-112ZP U36-112ZP
19 Connector 1 L43-5C L43-5C L43-5C
§ Seal and Gasket Kit PP1550 PP1550 PP1550
# Overhaul Kit PP1560 PP1561 PP1561
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
SERVICE KITS

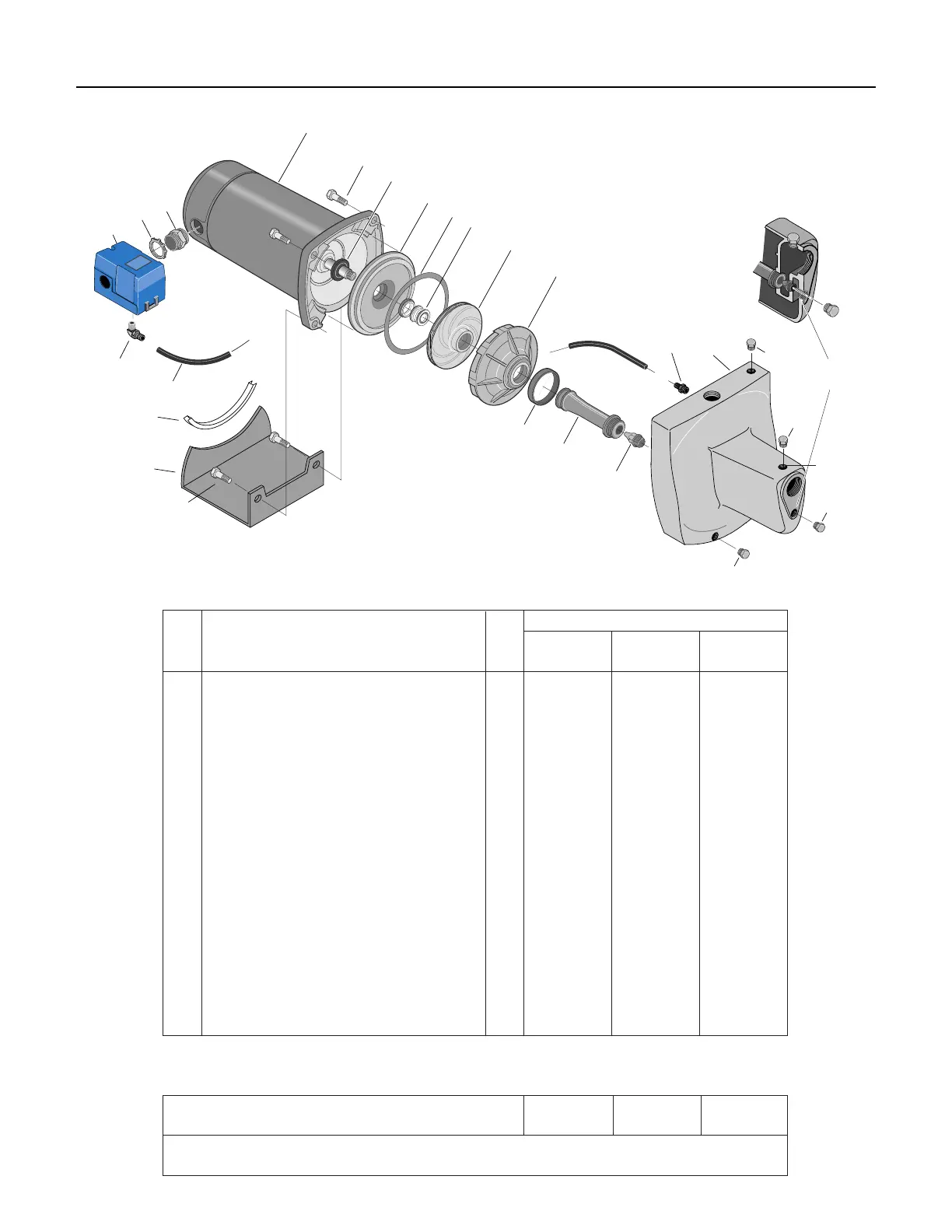

Exploded View
Models 5SN, 7SN, 5HN
AVC Port
