5.1.2 Accessing connections in connector
As the wiring is done inside the connector, you have first to remove
the connector, then open it.

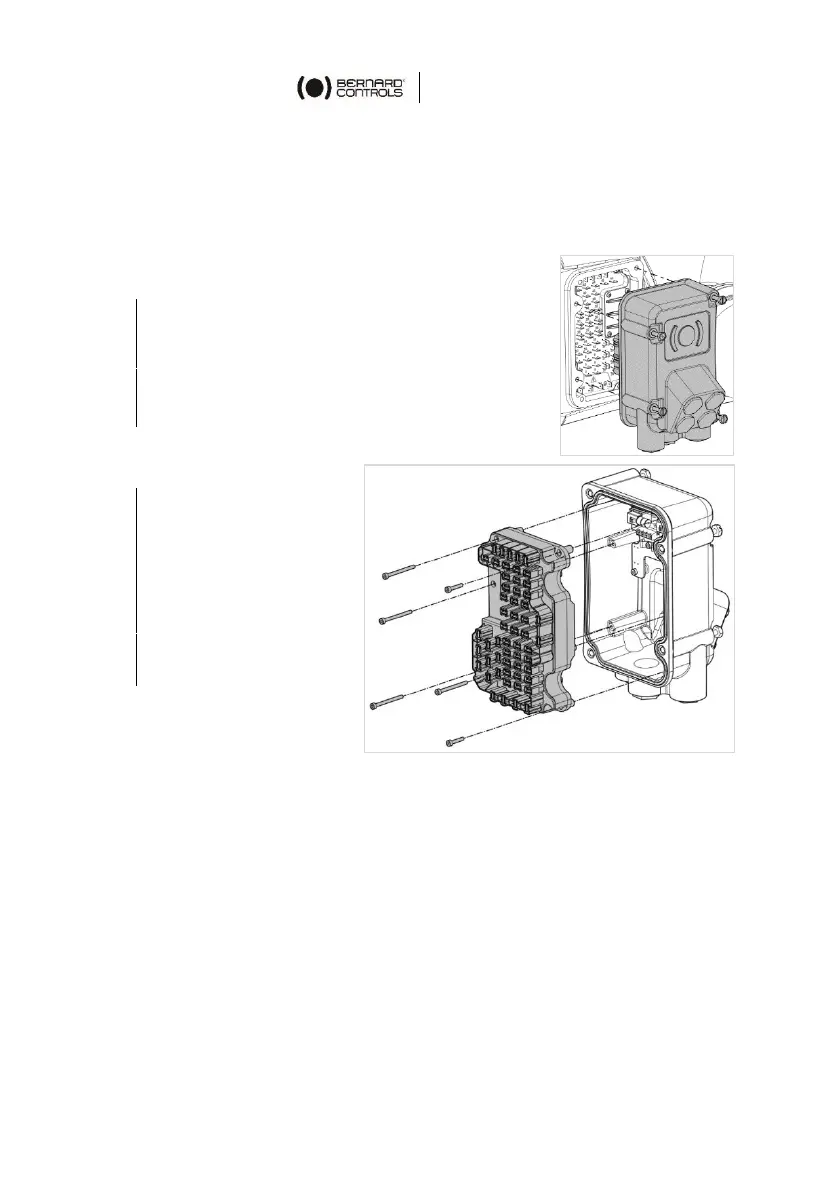

How to remove connector
1. Using a 10mm open end wrench or
10×1.5mm flat blade screwdriver,
unscrew the 4 Hex head screws
fastening cover on the housing.
2. Pull the connector out of the housing.
How to open connector
1. Using the 2.5mm
Allen key, unscrew
the 6 screws fixing
the terminal plate
on the connector
body.
2. Remove the
terminal plate.
