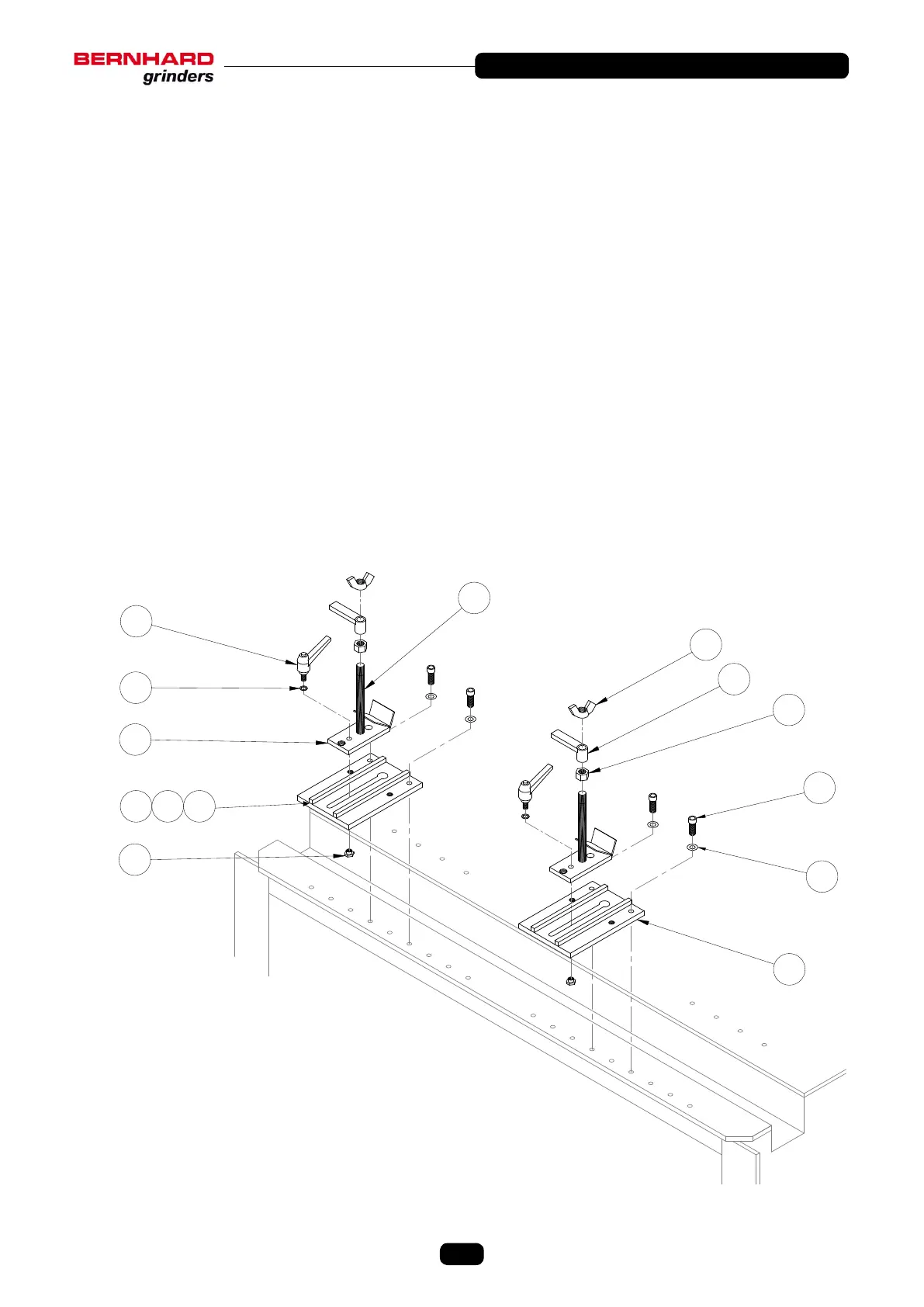

FRONT ROLLER BRACKET
________________________________________________
1 Adjustable Mtg. Brkt Base L.H................................................1 A4012
2 Adjustable Mtg. Brkt.Base R.H. .............................................. 1 A4014
3 Adjustable Mtg. Brkt.’V’ Base..................................................2 A4011
4 ‘V’ Bracket Stud M16...............................................................2 A5401
5 ‘V’ Bracket Clamp Finger ........................................................ 2 A4003
6 Wing Nut M16 ..........................................................................2 A5509
7 Hex. Nut M16...........................................................................2 A5508
8 Kip Lever M10 x 20..................................................................2 A6118
9 Slide Nut M10 ..........................................................................2 A4180
10 Cap Head Screw M10 x 25......................................................4 A5116
11 Washer M12 ............................................................................4 A5315
12 Washer M10 ............................................................................ 2 A5310
13 Base Scale ..............................................................................2 A6601
14 Button Head Screw M4 x 8 .....................................................4 A5125
Ref # Name of Part Qty. Part #
9. Parts List
1
2
3
4
5
6
7
8
9
10
11
12
1314
FRONT ROLLER BRACKET
