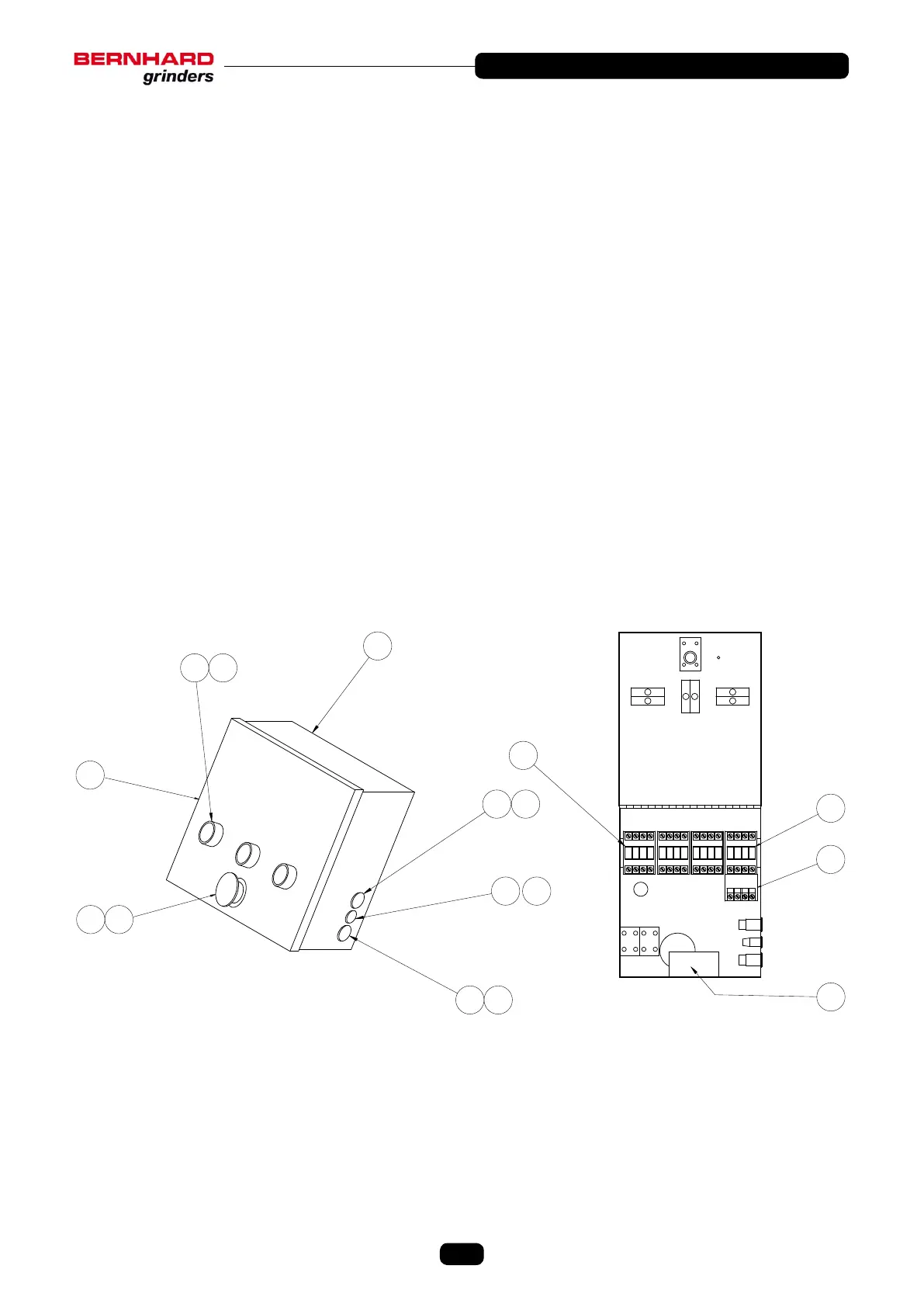

CONTROL BOX
____________________________________________________________
1 Control Box.............................................................................. 1 A6472
2 Control Box Lid........................................................................1 A6473
3 Pushbutton ..............................................................................3 A8040
4 Contact Block B3T10............................................................... 3 A8039
5 Emergency Stop Button ..........................................................1 A8073
6 Contact Block B4T02 .............................................................. 1 A8358
7 Supply Fuse 16 amp................................................................2 A8084
8 Cylinder / Traverse Fuse 2 amp .............................................. 1 A8085
9 Fuse Holder .............................................................................2 A8174
10 Fuse Holder ............................................................................. 1 A8081
11 Contactor K209A10 ................................................................. 3 A8063
12 Thermal Overload 60Hz..........................................................1 A8116
Thermal Overload 50Hz.......................................................... 1 A8117
13 Reversing Contactor K209A01 ............................................... 1 A8062
14 Traverse Capacitor 3µf............................................................1 A8148
Ref # Name of Part Qty. Part #
9. Parts List
1
2
3
6
4
5
7
8
9
11
12
13
OPEN CONTROL BOX
7
10
9
14
