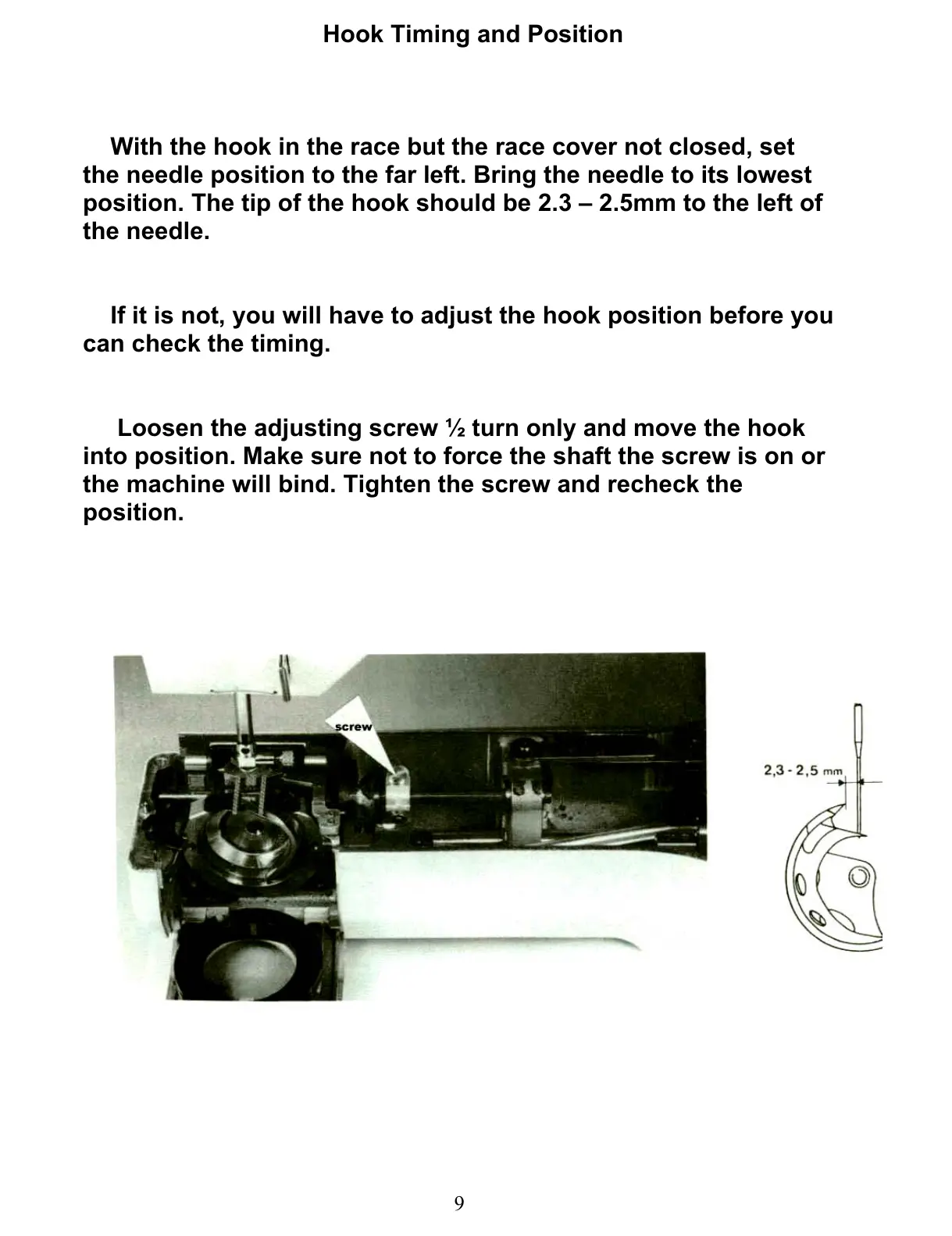

Hook Timing and Position
With the hook in the race but the race cover not closed, set
the needle position to the far left. Bring the needle to its lowest
position. The tip of the hook should be 2.3 – 2.5mm to the left of
the needle.
If it is not, you will have to adjust the hook position before you
can check the timing.
Loosen the adjusting screw ½ turn only and move the hook
into position. Make sure not to force the shaft the screw is on or
the machine will bind. Tighten the screw and recheck the
position.
