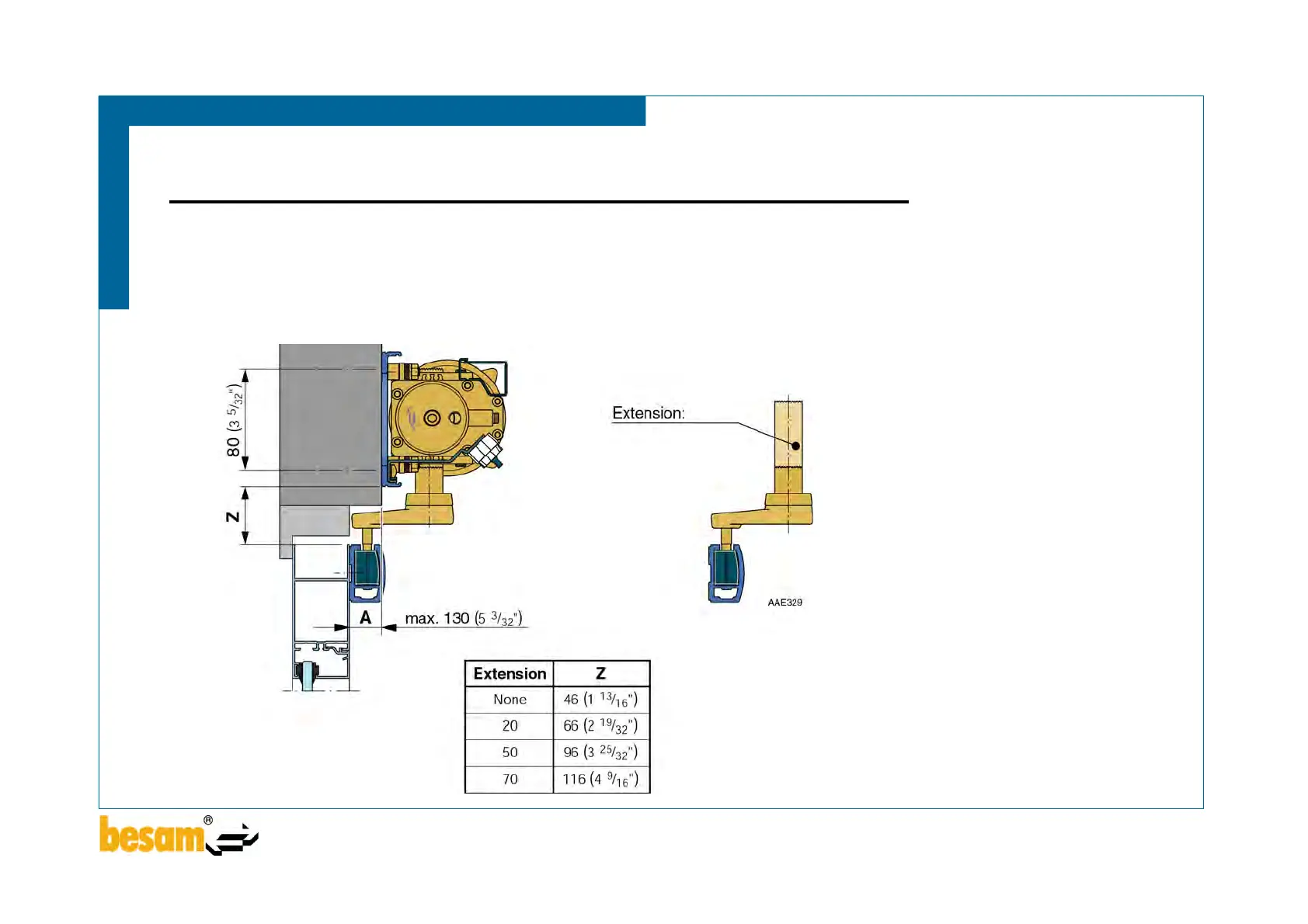

Wall mounted operator, arm system PULL
• Decide Z
• Draw a line on the wall for the underside of the mounting plate
• Door adaptor should be
mounted aligned with
upper edge of the door
• Extension has to be
used if operator must be
mounted higher up on the
wall
Note!
