Wall mounted operator and arm system PULL
Changing the direction of rotation

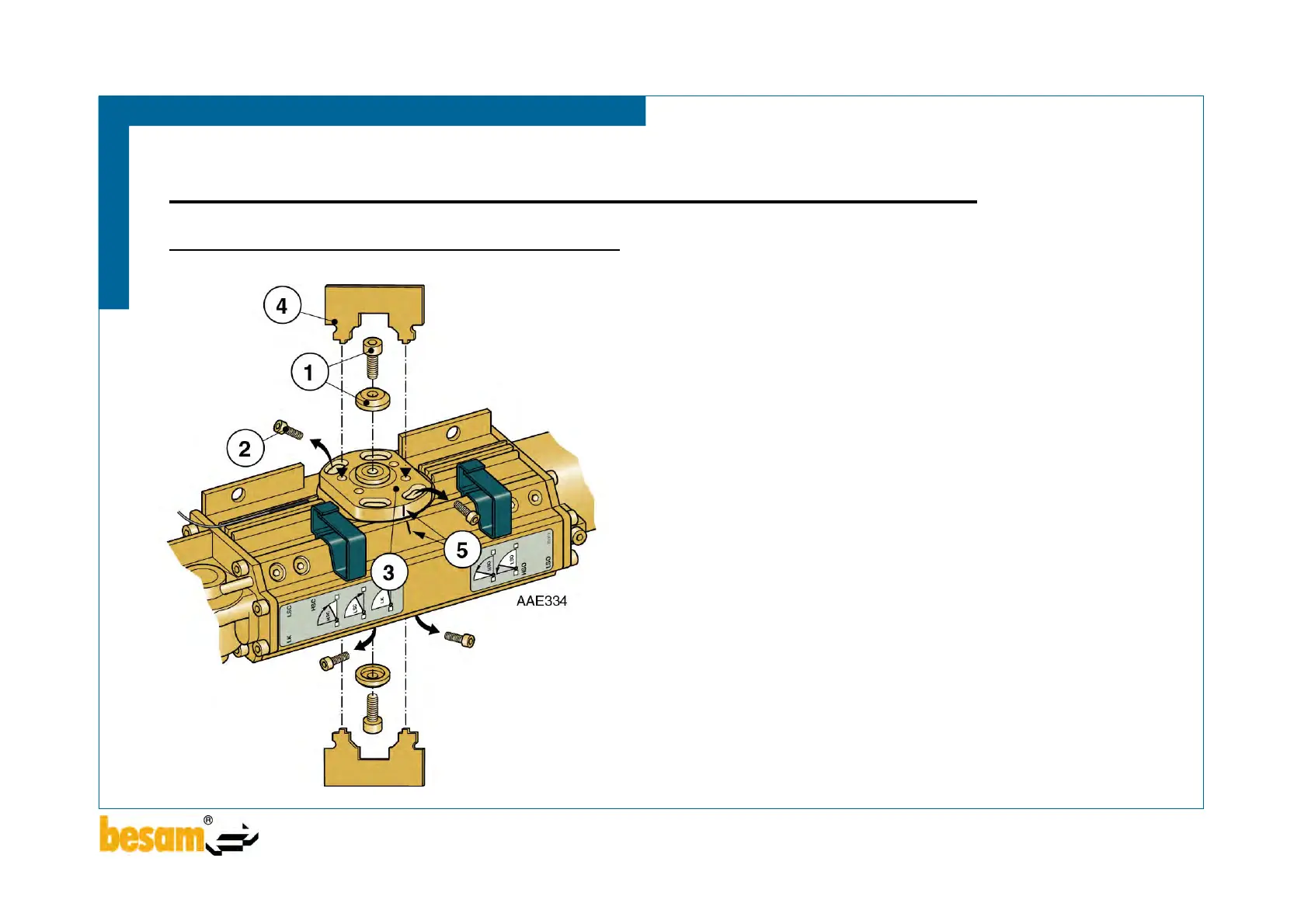

1. Mount the washer with the screw in the
drive shaft, one from each side.
2. Dismantle the screws (4 pcs) from the
bearing sleeves on both sides.
3. Fit the tools in the holes, one from each
side and turn both bearing sleeves
simultaneously approx. 165° until the
setting lines in the bearing sleeves are
aligned with the setting lines in the
housing.
4. Remount the four screws in the bearing
sleeves and dismantle the washers and
screws.
5. Setting lines.
