Best 45H - 48 H Trim Parts

48H & 49H Locks
40H Series Service Manual
7–5
48H TRIM PARTS

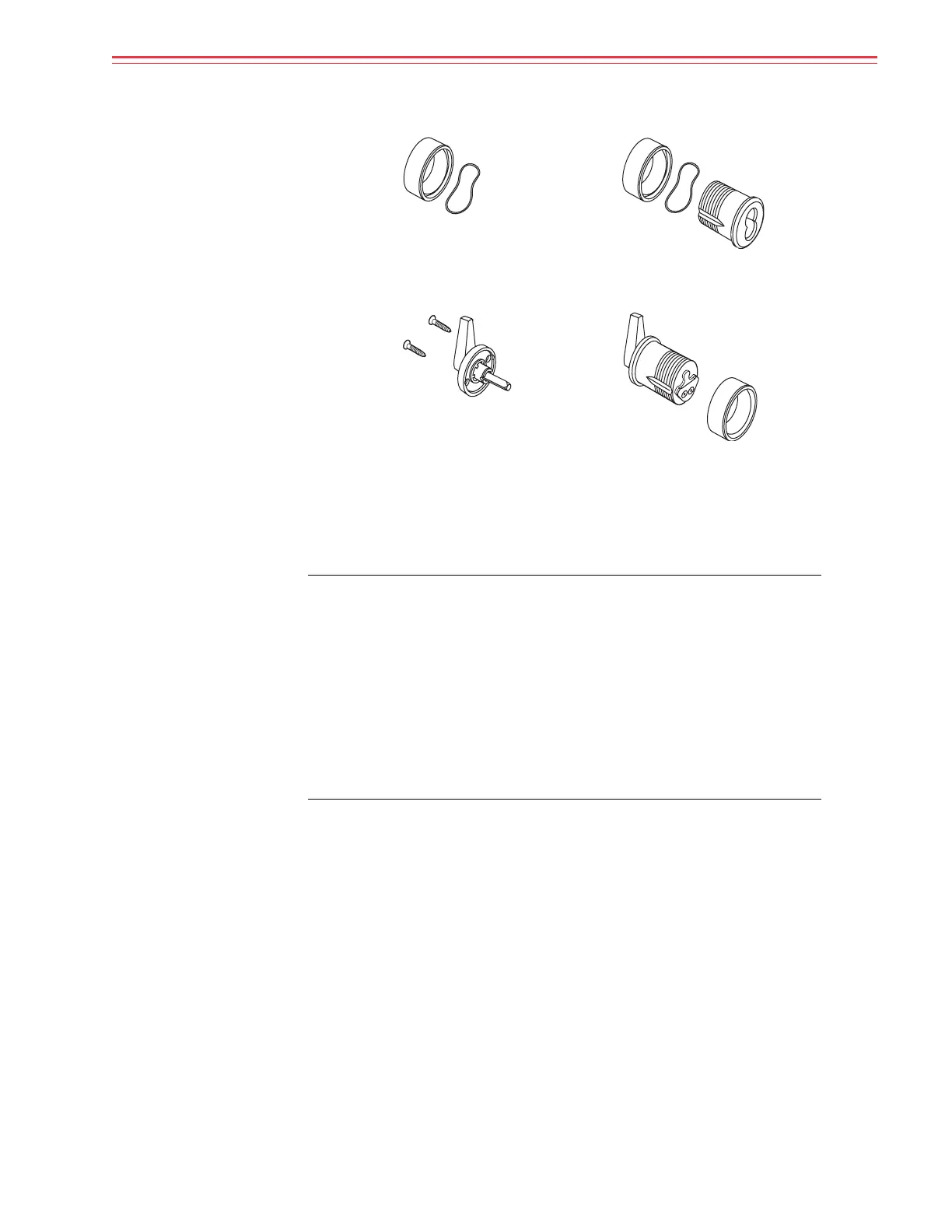

Figure 7.4 Deadbolt trim
Parts list Refer to Figure 7.4 and the table below to find the trim part you need.
4
2
3
1
Qty. per function
Description K L M R
1 1 1Cylinder ring assembly for
single-keyed functions
a
Cylinder ring assembly for
double-keyed functions
†
21
OS4 trimkit 1 1 21
IS5 trim kit 1
1Turn knob cylinder
for right hand doors
Turn knob cylinder
for left hand doors
1
Item Part No.
1 B35103
not shown
B35105
2 See page 5–3
3 See page 5–7
4 B35401
not shown
B35405
a. Includes wavy washer.
