Best 45H - Page 32

Lock Functions
3–6
40H Series Service Manual

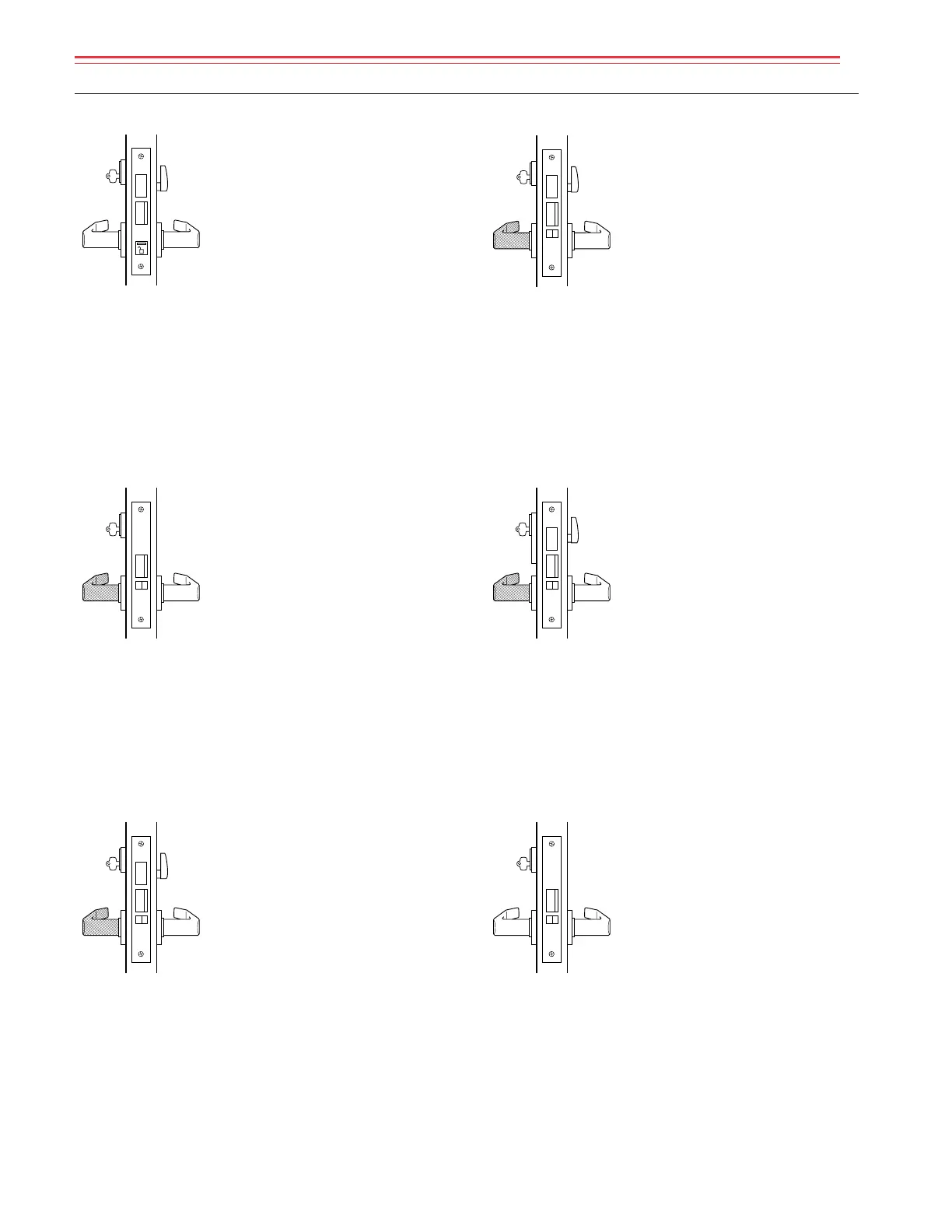

BA–Entrance lock (ANSI F08) BW–Entrance or storeroom lock
Latchbolt operated by:
■ outside key
■ outside lever when the locking
toggle is in the unlocked
position
■ inside lever when the deadbolt is
retracted
Deadbolt operated by:
■ outside key
■ inside thumb turn
Outside lever locked by:
■ extending the deadbolt
■ placing the locking toggle in the
locked position
Inside lever locked by:
■ extending the deadbolt
Latchbolt operated by:
■ outside key
■ inside lever when the deadbolt is
retracted
Latchbolt is deadlocked by an
auxiliary latch
Deadbolt operated
by:
■ outside key
■ inside thumb turn
Outside lever is always fixed
Inside lever locked by:
■ extending the deadbolt
D–Storeroom lock (ANSI F07) H–Hotel lock (ANSI F15)
Latchbolt operated by:
■ outside key
■ inside lever
Latchbolt is deadlocked by an
auxiliary latch
Outside lever is always fixed
Inside lever is always unlocked
Latchbolt operated by:
■ outside key
■ inside lever
Latchbolt is deadlocked by an
auxiliary latch
Deadbolt operated by:
■ outside special master key
■ inside thumb turn
■ inside lever retracts the deadbolt
and latchbolt simultaneously
Outside lever is always fixed
Inside lever is always unlocked
HJ–Hotel lock (ANSI F15)
Note 1: When the deadbolt is extended, the visual
indicator shows the locked icon.
Note 2: Available for 45H Locks only.
R–Classroom lock (ANSI F05)
Latchbolt operated by:
■ outside key
■ inside lever
Latchbolt is deadlocked by an
auxiliary latch
Deadbolt operated by:
■ outside special master key
■ inside thumb turn
■ inside lever retracts the deadbolt
and latchbolt simultaneously
Outside lever is always fixed
Inside lever is always unlocked
Latchbolt operated by:
■ outside key
■ outside lever when unlocked by
t
he outside key
■ inside lever
Latchbolt deadlocked by an
auxiliary latch
Outside lever locked and
unlocked by:
■ outside key
Inside lever is always unlocked
Note: Available for 45H Locks only.
