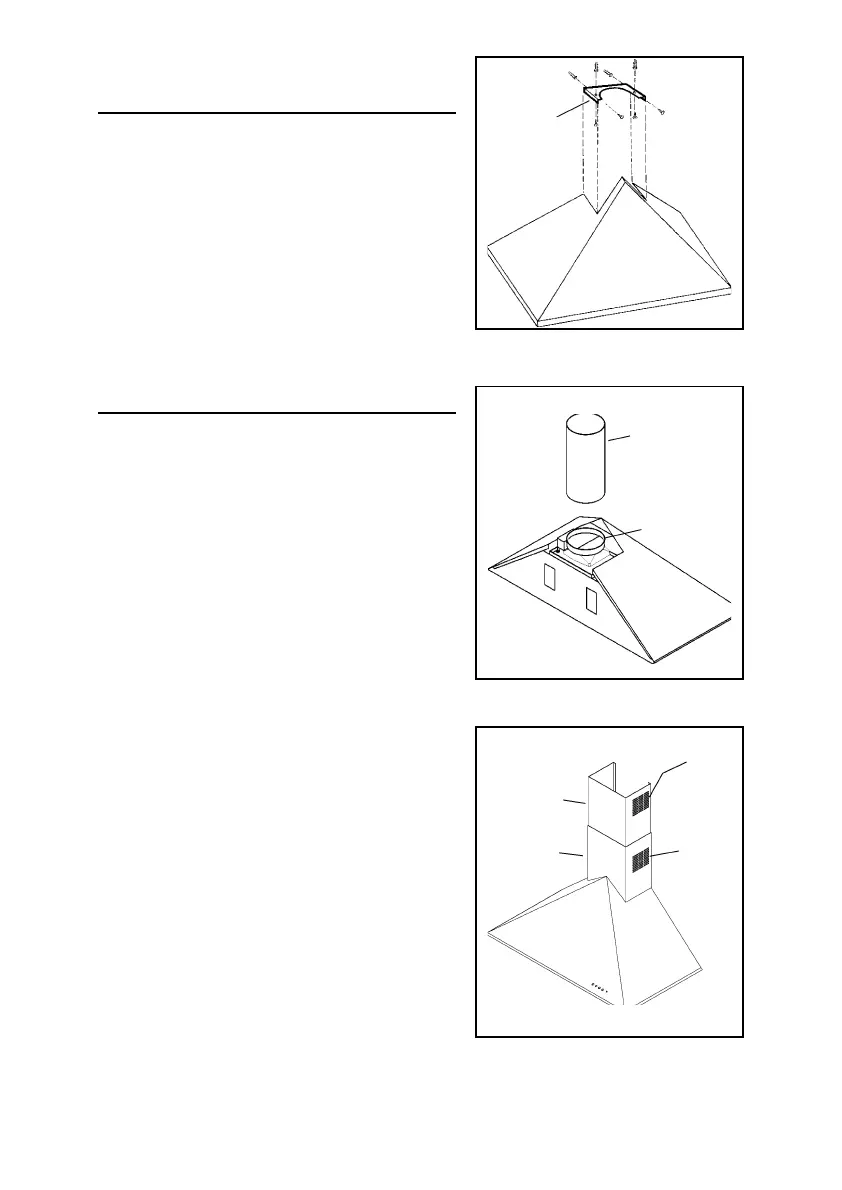

INSTALL FLUE MOUNTING
BRACKET
DUCTED AND NON-DUCTED
1. Carefully center the mounting bracket di-
rectly over the range hood location.
2. Secure the bracket assembly to the ceiling
using (2) 4.8x38mm mounting screws and
drywall anchors. Make sure the bracket is
pushed into the corner, tight against the
wall and centered over the hood.
PREPARE THE HOOD
DUCTED CONFIGURATION ONLY
Note: On stainless steel hoods, carefully
remove the plastic protective film from all
exterior surfaces of the hood and decora-
tive flues, prior to final installation.
1. Attach an adequate length of 6" round
metal duct to the range hood duct con-
nector.
2. Duct tape all joints to make them secure
and air tight.
3. Carefully place the lower decorative flue
into the recessed area of the range hood
top.
4. Carefully slide the upper decorative flue
down inside the lower flue.
Note: On 8” ceilings the air vents on the up-
per flue are concealed by installing the flue
with air vents down.
On 9” ceilings, air vents on the upper flue will
FLUE
MOUNTING
BRACKET
6” DIAMETER
METAL DUCT
DUCT
CONNECTOR
UPPER
FLUE
VENTS
EXPOSED
LOWER
FLUE
VENTS
CONCEALED
LOWER
FLUE
UPPER
FLUE
To Next Page
