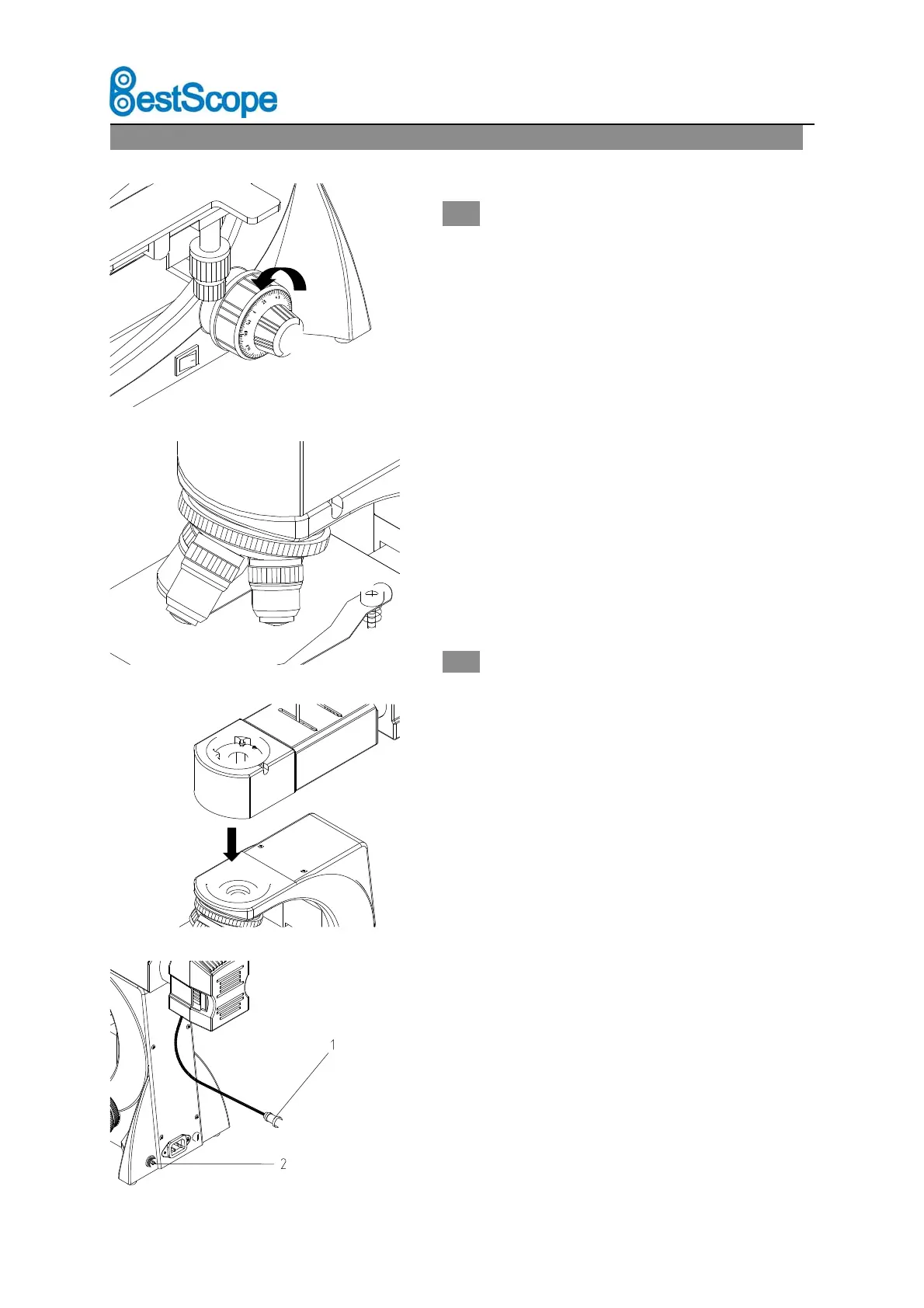

BS-6000A/AT
2.2 Installing Setps
Fig.2
Fig.1
2.2.1 Installing the Objective (Fig.1-2)
1. Adjust the coarse &fine focus knob, till the
mechanical stage to the low limited place.
2. Screw down the objective to nosepiece from left or
right side, low magnification objective first.
Install all the objective form low to high
magnification following the clock hand.
According to this way to install the objective will
make it easier to change magnification in
operation.
Clean the objective frequently.
At first, use the 10X objective to looking for
image, then change another one.
Turn the objective till hear the “Kai. Kai” sound,
make sure the objective enter the objective
center.
2.2.2 Installing the Metallurgical
Illumination Set (Fig.3-4)
1. Insert the Metallurgical Illumination Set with
Lamp House installed into the Microscope
Body. Align the position and screw down the
bolt with hexagon wrench.
2. Plug the power cord① of the Metallurgical
Illumination Set into the socket②. Then screw
the bolt firmly on the socket.
Fig.3
Fig.4
