OPERATION
Notices: Read and understand all warning and precaution statements listed in the safety
section of this operation manual prior to using this meter. Set the function select switch to
the OFF position when the meter is not in use.
AC Current Measurements
Warning: Ensure that the test leads are disconnected from the meter before making current
clamp measurements.

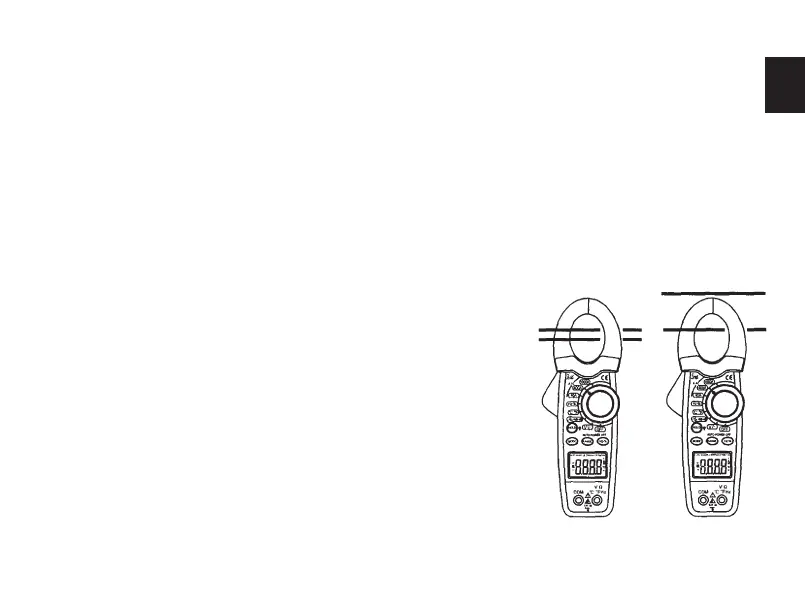

Set the Function switch to the 1000A or 400A ‘or 40A range. If the range of the measured is
not known, select the higher range rst then move to the lower range if necessary.
Press the trigger to open jaw. Fully enclose one conductor to be measured
The clamp meter LCD will display the reading
DC/AC Voltage Measurements
Insert the black test lead into the negative COM terminal
and the red test lead into the positive V terminal.
Set the function switch to the V position.
Select AC or DC with the MODE button
Connect the test leads in parallel to the circuit under test.
Read the voltage measurement on the LCD display.
