3. Unit description

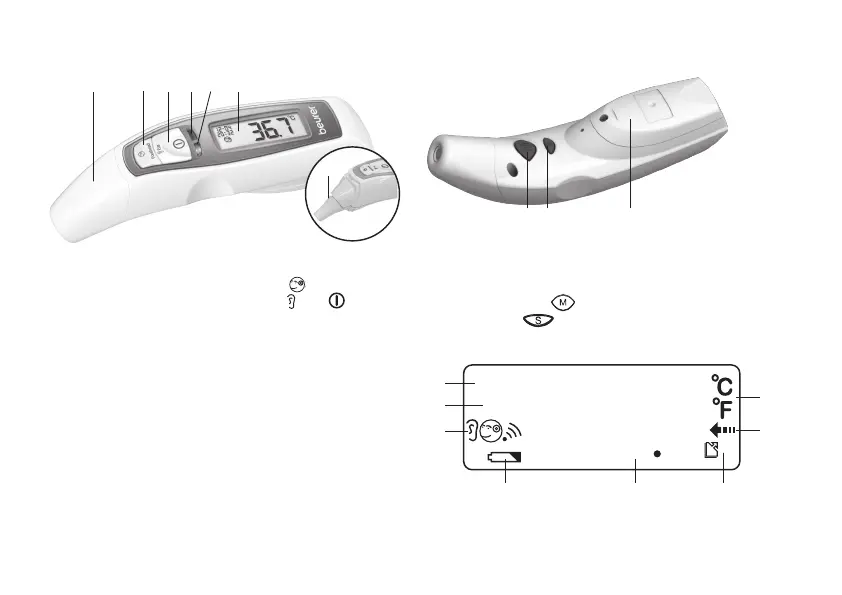

Overview
1
32 4 5 6
7
1098
1 Forehead/cover cap
2 Forehead thermometer mode button
Forehead
3 Ear thermometer mode/on button
Ear /
4 LED (red) (high temperature alarm)
5 LED (green)
6 LCD
7 Sensor tip with lens (cover cap removed)
8 Memory button
9 Set button
10 Battery compartment lid
11 Date
12 Time
13 Measurement mode (“Ear”, “Forehead”, “Object”)
14 Battery warning symbol
15 Measurement display
16 “Memory” symbol and storage space number
17 “Measurement in progress” symbol
18 Unit of measurement (°C or °F)
863
5-15
8
7:20
11
12
13
18
17
161514
