5
2.4 Operating conditions
Temperature range during operation: 0 to +50°C
Relative air humidity: 95% at +10°C not condensed
3.1 Protective devices
The machine may only be operated with the Flange head and the additional handle fitted!

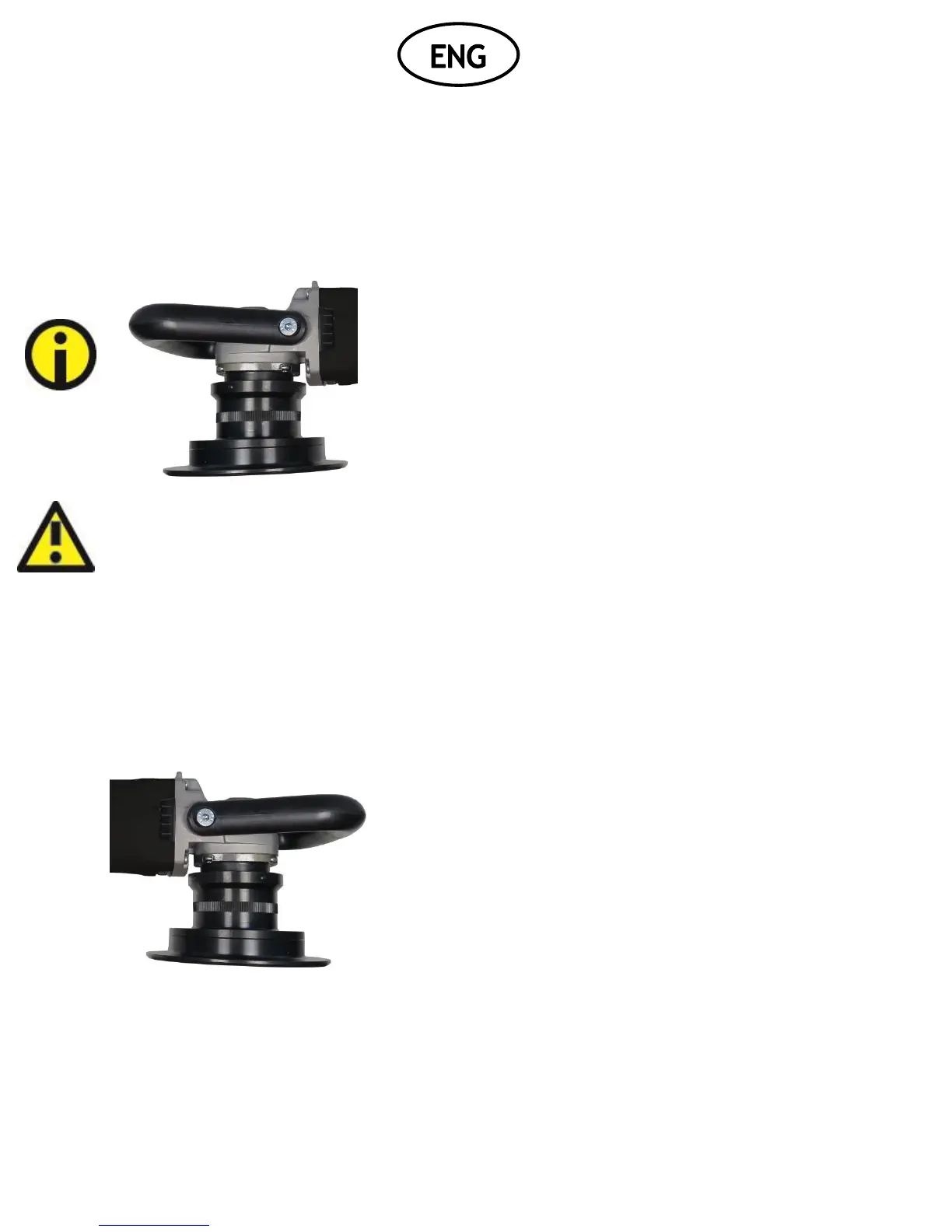

3.1.1 Flange head
Adapt Flange head
• Turn the Flange head until it has reached the right depth.
• Rotate the guide plate until the required bevel height has been set as shown by the fixed main scale.
Cleaning depth mechanism
• Remove guide bearing and bevel head.
• Turn the Flange head until it comes off.
• Clean all parts and replace defective parts.
• Lubricate the thread with Teflon spray and gears with a little multi-purpose grease.
• Re‐assemble in reverse order.
3.1.2 Additional handle
The additional handle must be screwed in at the left and right with the supplied screws.
