Opus 600 – ZAS 800 Antenna Splitter
44

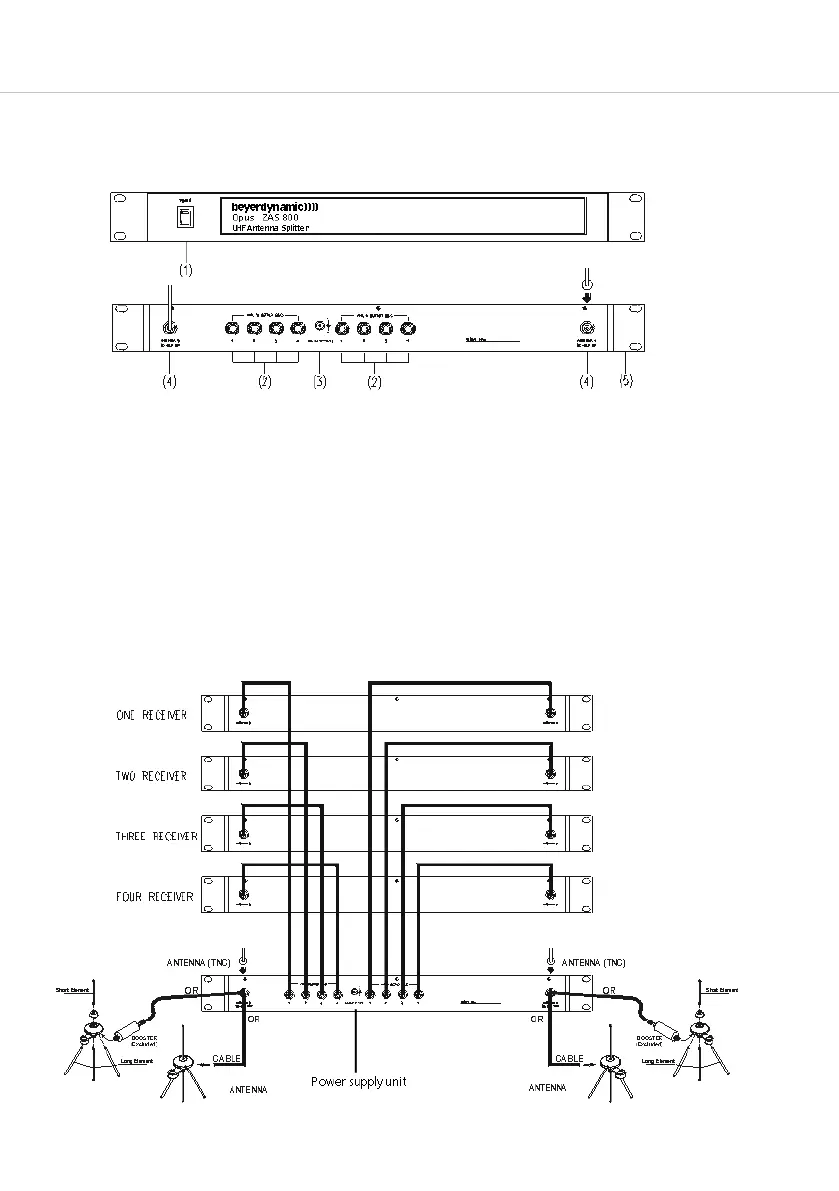

2.11 ZAS 800 antenna splitter
2.11.1 Controls and indicators
On-off switch and power on LED. When the antenna splitter is switched on, the red LED will illuminate.
Outputs to connect the receivers
DC-connection to connect the DC power supply unit (12 V)
Antenna sockets A/B. DC-Out: 8 V / 170 mA
Mounting brackets for 19" rack mounting
2.11.2 Installation
