Beyerdynamic Opus 600 - TS 600 AF Connection Options

Opus 600 – TS 600 Beltpack Transmitter
53
english

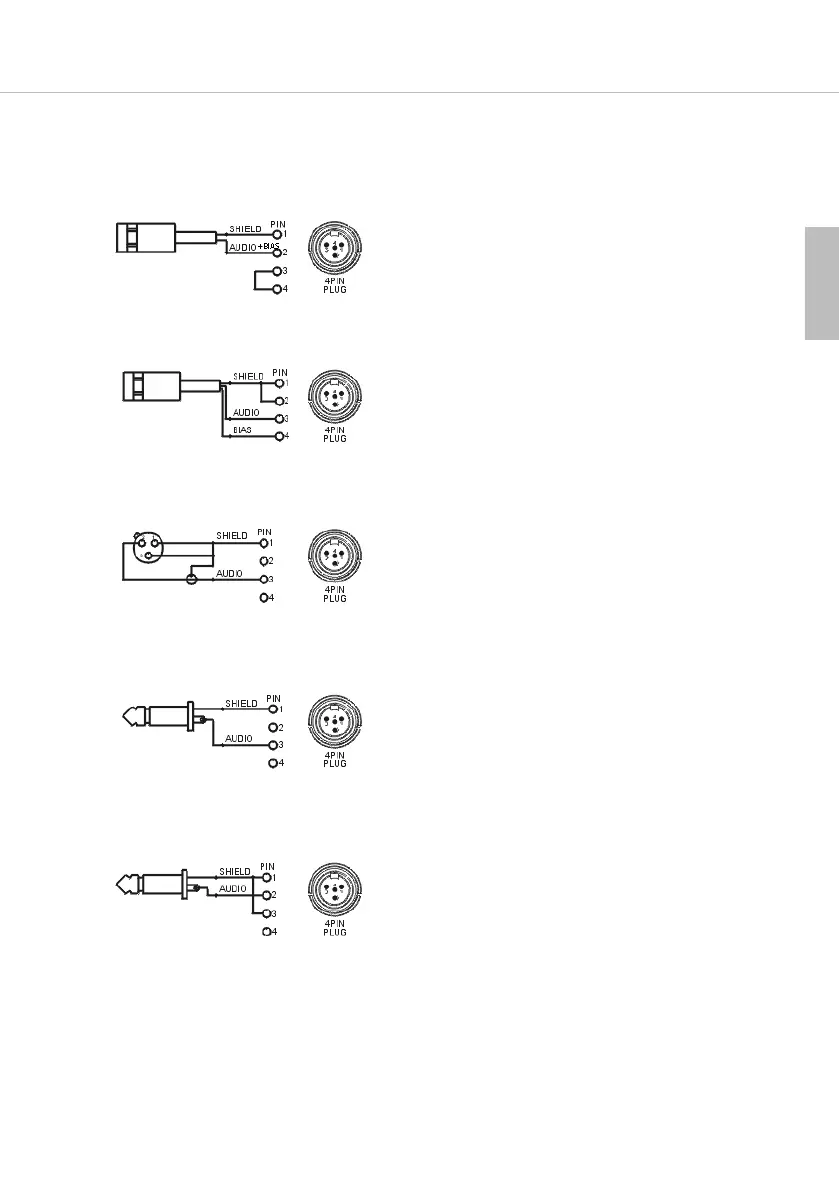

4.5 AF connection
(1) 2-wire electret condenser microphone capsule
(2) 3-wire electret condenser microphone capsule
(3) Dynamic microphone
(4) Electric guitar
(5) Line-in (impedance 8 Ω, attenuation 10 dB)
e.g. Opus 54.18,
Opus 55.18 Mk II
e.g. MCE 5.18,
MCE 10.18,
MCE 60.18
