english
TG 100 – Receiver
23
2. TG 100R Diversity Receiver
2.1 Controls and Indicators

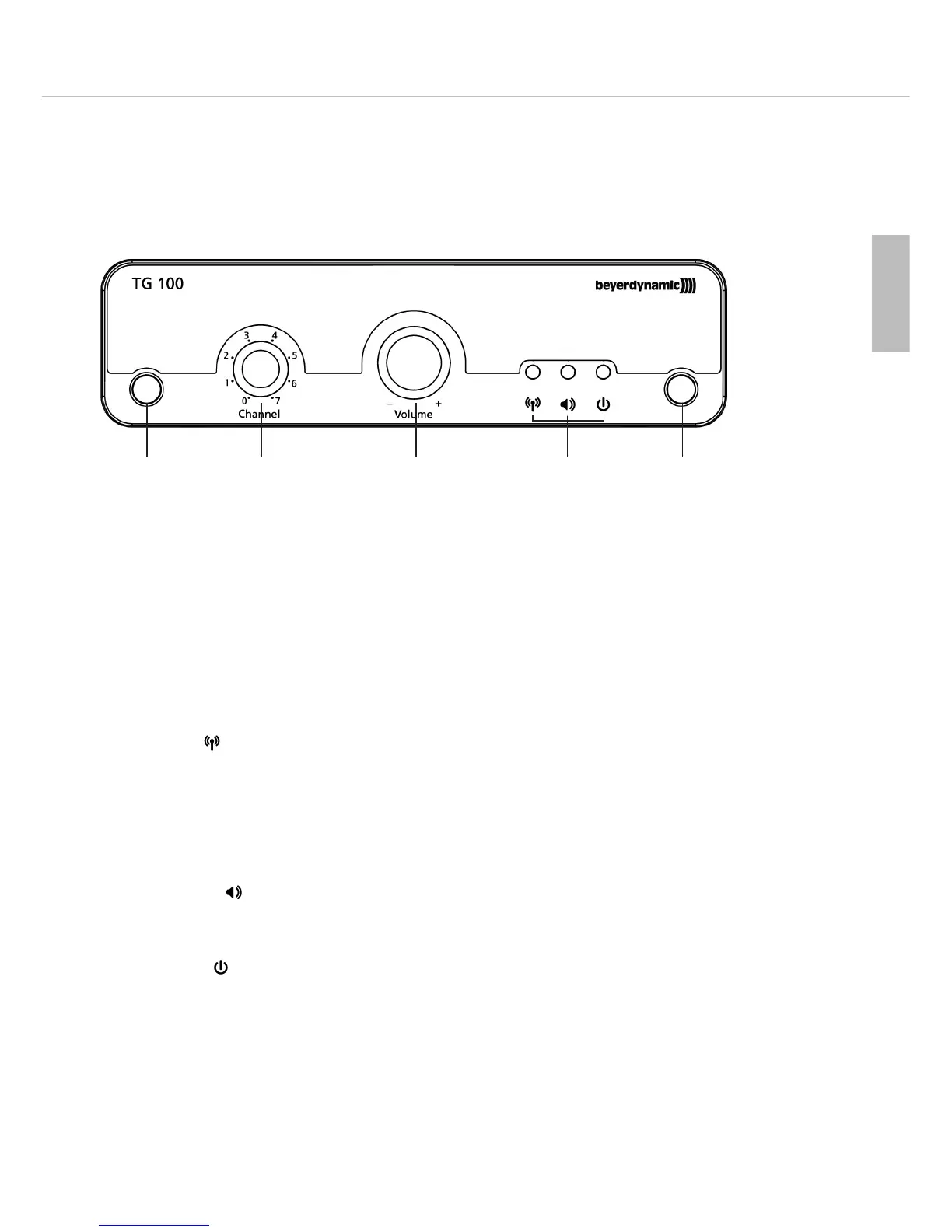

Front view
Telescopic antennae A and B for diversity operation, permanently attached.
Channel selector switch. In total there are 8 channels (0 - 7) available.
Volume control for audio output.
LEDs.
Left LED:
Illuminated permanently green: RF connection available. Battery of the transmitter is alright.
Illuminated permanently red: RF connection available. Battery voltage of the transmitter is too low
(low batt).
Flashing green: Channel/frequeny is occupied by another transmitter or radio service on this
frequency.
Off: Channel is vacant, but the transmitter is not turned on.
Middle LED:
Green: Audio signal is available.
Red: Audio peak, only with loud passages.
Right LED:
Green = Receiver is turned on (Power on).
