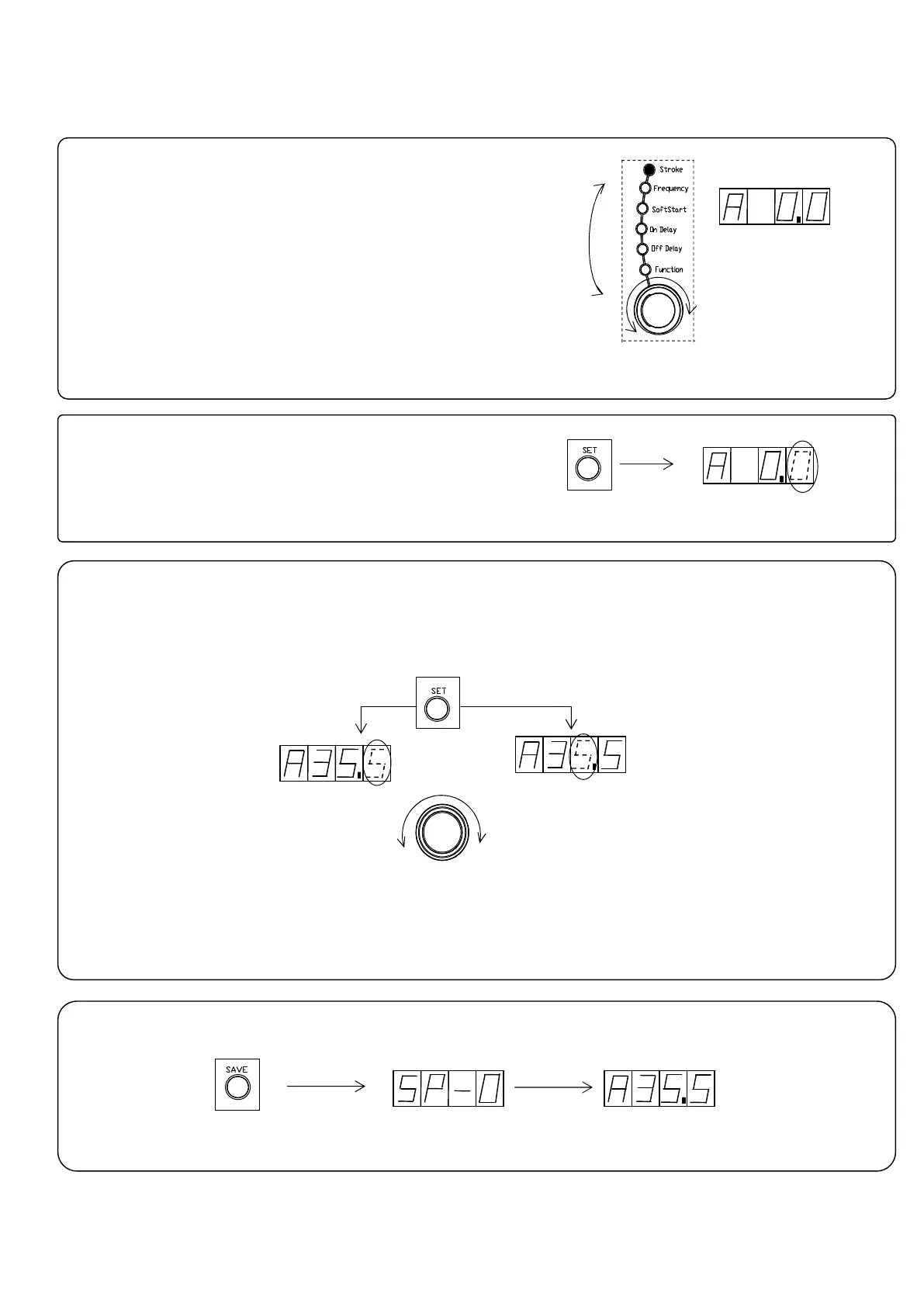

5. Dial setting encoder and set the stroke so that work pieces are discharged smoothly on the track.
Push “Set” button to shift the blinking digit from decimals to units.
The “Setting of the stroke” must be set within the maximum of the drive unit.
3. Dial “Selection Dial” and select “Stroke” turning
“Stroke” lamp on.
Selection Dial
Stroke data appears
Turning on
Dial
4. Push “Set” button to change the mode from
“Indication” to “Adjustment”.
Blinking
Push button
Setting Encoder
Dial
Blinking digit for alteration
Push button
Note: When the set value is lower than 10.0 alter the sensor feed back gain “Fb” to “Fine” or “1”.
It spreads adjustable range of the stroke six times and it makes setting easy and precise.
6. Push “Save” button to store the data having been set.
Push “SAVE” button Storing New data is stored
