BFC VMC Series User Manual

5
HTE402559 28/47
e. Size of the Sensor support

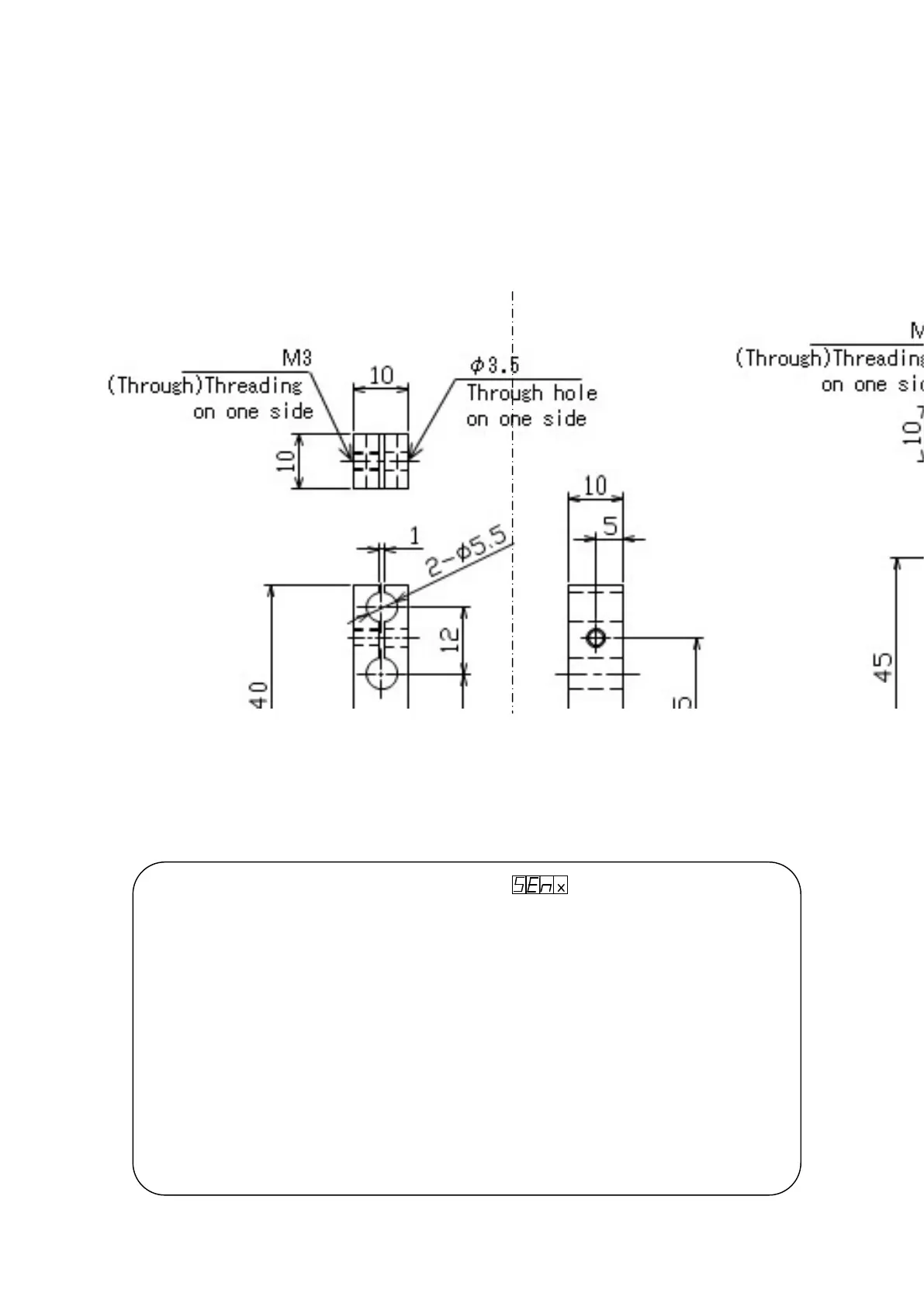

The following figure shows model of a linear feeder and the size of the Sensor support.
Function setting suits for an arrangement of the Stroke Sensor.
It is not necessary to set the Function Code according to the phase of
the air gap on the program version 6 or later.
The phase of the air gap is automatically detected when the auto-tuning of
initial setting is completed.
Manual setting is available by setting the Function Code.
Sen0: The phase is reverse. “Reverse” means when the magnet on the drive unit
pulls down the armature the air gap becomes wide.
Sen1: The phase is synchronous. “Synchronous” means when the magnet on the
drive unit pulls down the armature the air gap becomes narrow.
Sen2: Automatically set
【 Model ML-001 series 】 【 Model ML-002 series 】
