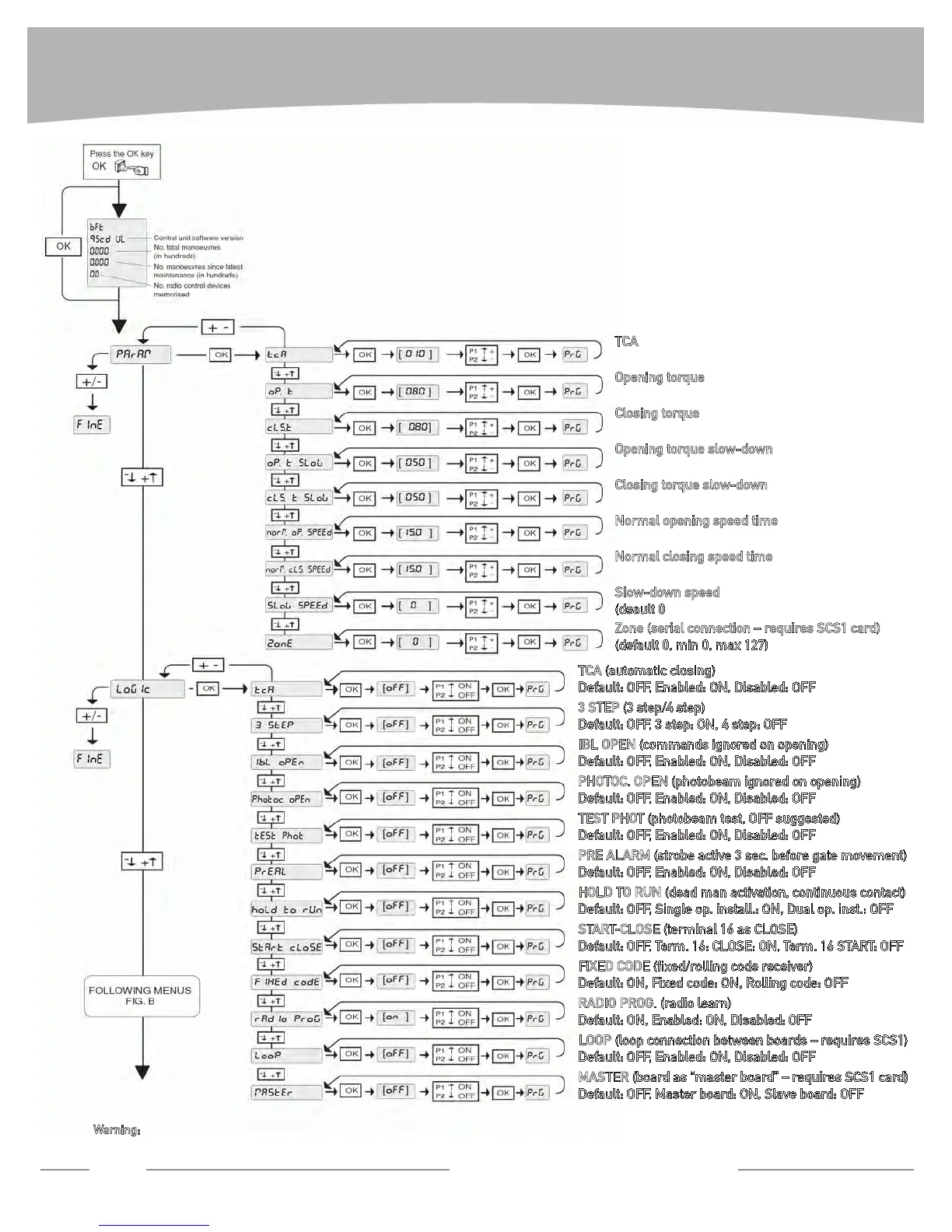

MENU FLOW CHART
14 Technical Support: 1-877-995-8155
TCA (timer to close) [sec.]
(default10sec.,min3sec.,max60sec.)
Opening torque [%]
(default80%,min1%,max99%)
Closing torque [%]
(default80%.min1%,max99%)
Opening torque slow-down [%]
(default50%,min1%,max99%)
Closing torque slow-down [%]
(default50%,min1%,max99%)
Normal opening speed time [sec.]
(default15sec.,min1sec.,max120sec.)
Normal closing speed time [sec.]
(default15sec.,min1sec.,max120sec.)
SIow-down speed
(deault 0,minslowdown0,maxslowdown3)
Zone(serialconnection–requiresSCS1card)
(default0,min0,max127)
TCA (automatic closing)
Default: OFF, Enabled: ON, Disabled: OFF
3 STEP (3 step/4 step)
Default: OFF, 3 step: ON, 4 step: OFF
IBL OPEN (commands ignored on opening)
Default: OFF, Enabled: ON, Disabled: OFF
PHOTOC. OPEN (photobeam ignored on opening)
Default: OFF, Enabled: ON, Disabled: OFF
TEST PHOT (photobeam test, OFF suggested)
Default: OFF, Enabled: ON, Disabled: OFF
PRE ALARM (strobe active 3 sec. before gate movement)
Default: OFF, Enabled: ON, Disabled: OFF
HOLD TO RUN (dead man activation, continuous contact)
Default: OFF, Single op. install.: ON, Dual op. inst.: OFF
START-CLOSE (terminal 16 as CLOSE)
Default: OFF, Term. 16: CLOSE: ON, Term. 16 START: OFF
FIXED CODE (xed/rollingcodereceiver)
Default:ON,Fixedcode:ON,Rollingcode:OFF
RADIO PROG. (radio learn)
Default: ON, Enabled: ON, Disabled: OFF
LOOP (loop connection between boards – requires SCS1)
Default: OFF, Enabled: ON, Disabled: OFF
MASTER (board as “master board” – requires SCS1 card)
Default: OFF, Master board: ON, Slave board: OFF
Warning: the logic MASTER has no relation to single/dual operator installation, it is used only if serial connection with multiple boards is required.
