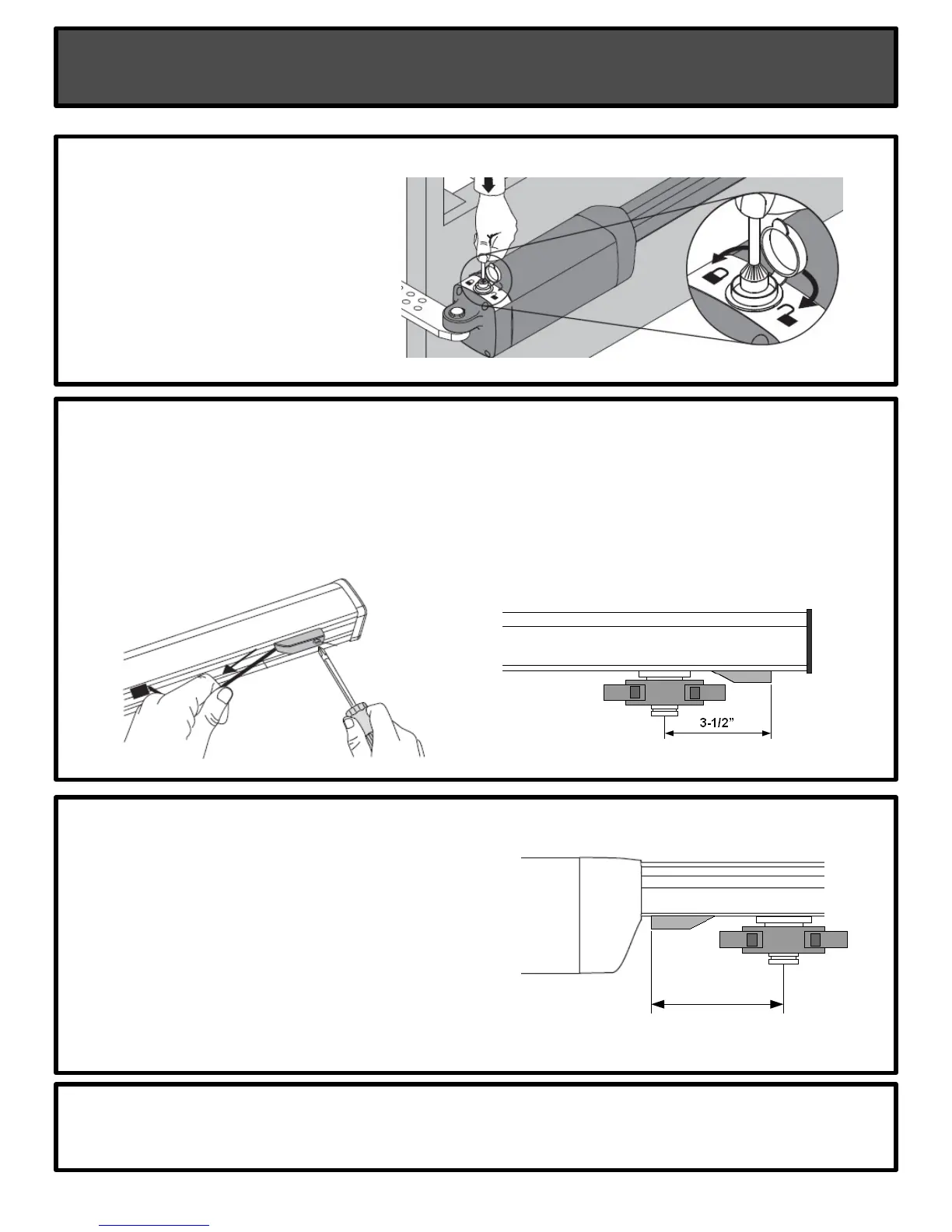

1) SET TO MANUAL OPERATION - Disengage the drive gear by using the triangular
key and turning clockwise.
2) SET THE CLOSE LIMIT - Push the gate to its fully closed position. Remove the
screw that holds the proximity sensor at the front end of the actuator. Slide it back so
that the back end of the sensor housing is 3-1/2” from the center of the drive carriage
and re-attach screw that secures sensor in place.
3) SET THE OPEN LIMIT - Push the gate to
its fully open position. Remove the screw
that holds the proximity sensor closest to
the actuator body. Slide it forward so that
the back end of the sensor housing is 3-1/2”
from the center of the drive carriage and re-
attach screw that secures sensor in place.
3-1/2”
4) RE-ENGAGE THE MANUAL RELEASE - Use triangular key and turn
counterclockwise to re-engage gears.
SETTING THE LIMIT SWITCHES14
