BFT RIGEL 5 User Manual

x1
J?LES?EC
RWNC
LMR
'2
DP?
BCS
CLE
CQN
CJCA
FWBP
0
NPCQCR


C
FGBBCL@SRRML PCJC?QC -
PCMRCQ
QP
?A
QA
GLB
CLB
?P: automatic operation, residential
QP: semiautomatic operation, residential
?A: automatic operation, commercial
1A: semiautomatic operation, commercial
'LB: dead man operation
CJCA: electromechanical operator
FWBP: hydraulic operator
BCQGBCPCB@SRRML
Exit Menù
Confirm/Switch on display
Scroll up
Scroll down

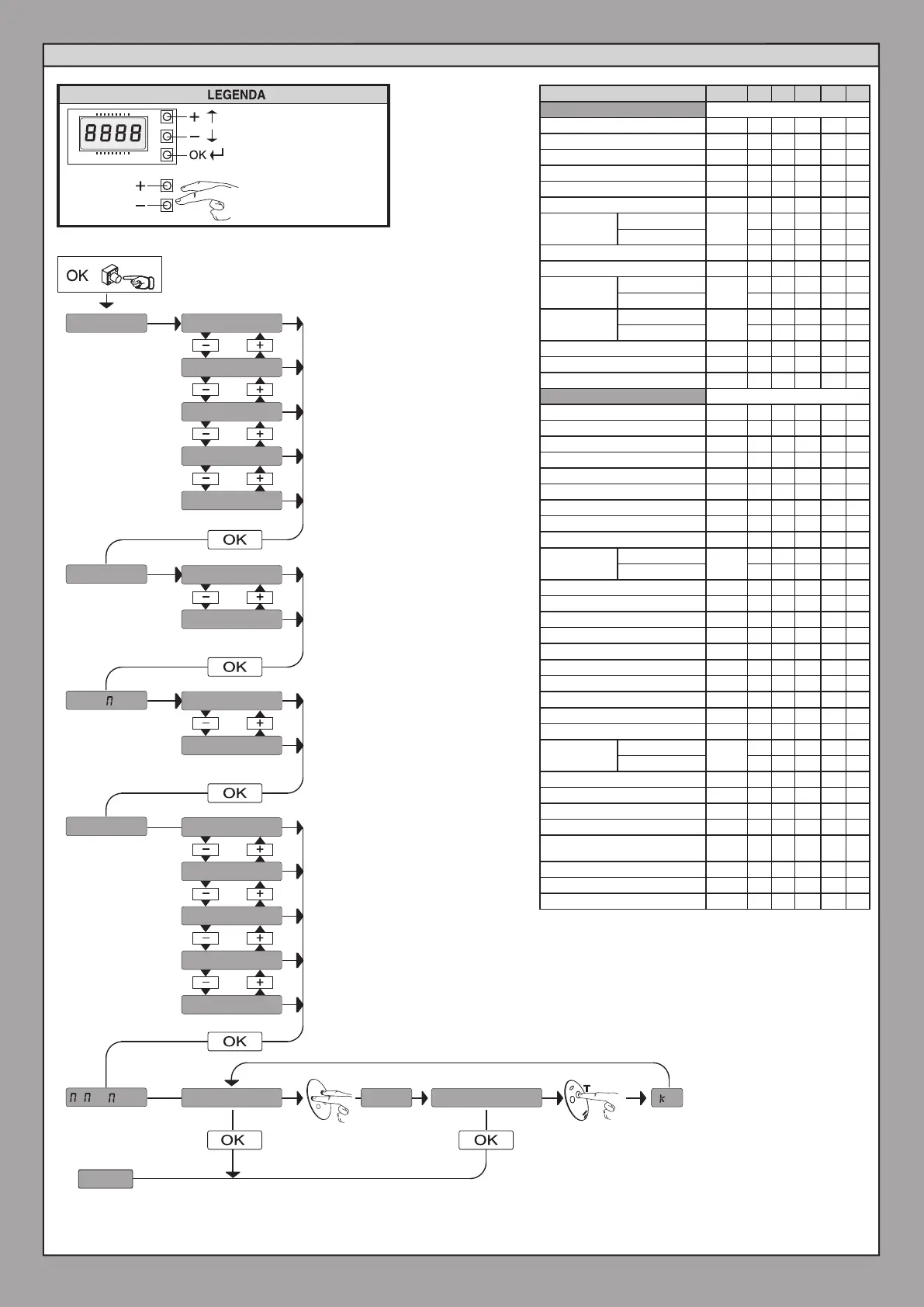

SYSTEM SETTINGS MENU
PRESET
DEFAULT
AR SR AC SC ind
PARAMETER
Automatic closing time (TCA)
40 20 40 30 40 40
Operation time motor 1
60 20 20 20 20 20
Operation time motor 2
60 20 20 20 20 20
Pedestrian operation time
6 6 6 6 6 6
Opening delay time for leaf 1
3 2 2 2 2 2
Closing delay time for leaf 2
3 2 2 2 2 2
Slow-down time
hydraulic
0
0 0 0 0 0
electromechanical
3 3 3 3 3
Trac-light area clearance time
15 15 15 15 15 15
Preheating
30 30 30 30 30 30
Slowdown motor
torque
hydraulic
40
99 99 99 99 99
electromechanical
50 50 50 50 50
Motor torque
hydraulic
40
99 99 99 99 99
electromechanical
50 50 50 50 50
Braking
0 0 0 0 0 0
Emergency braking
60 60 60 60 60 60
Zona
0 0 0 0 0 0
LOGIC
Automatic Closing
OFF ON OFF ON OFF OFF
Opening Impulse lock
OFF OFF OFF ON ON OFF
Impulse lock TCA
OFF OFF OFF OFF OFF OFF
Impulse lock on closing
OFF OFF OFF OFF OFF OFF
Ram blow on opening
OFF OFF OFF OFF OFF OFF
Ram blow in closing
OFF OFF OFF OFF OFF OFF
2-step logic
OFF OFF OFF OFF OFF OFF
3-step logic
OFF ON OFF ON OFF OFF
Pre alarm
OFF OFF OFF ON ON OFF
Lock hold
hydraulic
OFF
ON ON ON ON ON
electromechanical
OFF OFF OFF OFF OFF
Hold-to-run
OFF OFF OFF OFF OFF ON
Photocells on opening
OFF ON ON ON ON OFF
Rapid closing
OFF OFF OFF OFF OFF OFF
Photocell test
OFF OFF OFF OFF OFF OFF
Electric edge test
OFF OFF OFF OFF OFF OFF
Photocell test on opening
OFF OFF OFF OFF OFF OFF
Photocell test on closing
OFF OFF OFF OFF OFF OFF
Master/Slave
OFF OFF OFF OFF OFF OFF
Fixed code
OFF OFF OFF OFF OFF OFF
Radio transmitter programming
ON ON ON ON ON OFF
Time count
hydraulic
OFF
OFF OFF OFF OFF OFF
electromechanical
ON ON ON ON ON
Courtesy light
OFF OFF OFF OFF OFF OFF
Clock / Pedestrian
OFF OFF OFF OFF OFF OFF
Light/Alarm
OFF OFF OFF OFF OFF OFF
1 Active motor
OFF ----- ----- ----- ----- -----
Gate-open or 2nd radio channel warning
light
OFF OFF OFF OFF OFF OFF
Safety edge
ON ON ON ON ON ON
Blinking output
OFF OFF OFF OFF OFF OFF
Type of lock
OFF OFF OFF OFF OFF OFF
RIGEL 5 - 5
D811472 00100_01

BFT RIGEL 5 Specifications

General

Power Supply	230 V
Protection Rating	IP54
Control Panel	LCD
Operating Temperature	-20°C to +60°C
Inputs	Photocells, stop, opening and closing
