SUB-UL 3
D811290_04
USER’S MANUAL
ENGLISH
Thank you for buying this product, our company is sure that you will be more than satised with its performance. This product is supplied with a “WARNINGS” leaet
and an “INSTRUCTION MANUAL”. These should both be read carefully as they provide important information about safety, installation, operation and maintenance.
This product complies with recognised technical standards and safety regulations. We declare that this product is in conformity with the following directives: CAN/
CSA-C22.2 No. 247-92 UL Std. No. 325 (Certicate: 1002906 Date Issued: October 16, 2000).
1) GENERAL OUTLINE
The SUB hydraulic controller provides the ideal solution for underground hinge-pivot installations, as it brilliantly solves aesthetic automation problems. The SUB
actuator consists of a perfectly sealed single block, containing a hydraulic control unit and a jack, which provides a hidden underground installation without any
hydraulic connections. The gate is kept closed by an electric lock, or by a hydraulic lock on the SUB versions supplied with it. The versions with slow-down functions
avoid unpleasant slamming noise when the gate is brought to the nal opening and closing stages. The pushing force can be adjusted with extreme precisionby
means of two by-pass valves which provide antisquash safety. The end-of-stroke operation is electronically set by a timer on the control panel. The emergency release,
activated by the proper key supplied, can be easily reached after removing the appropriate cap found on the cover.
2) MAIN AUTOMATION PARTS
Single-block hydraulic actuator (g.1) consisting of:
M) 2-pole single-phase motor protected by thermal circuit-breaker.
P) Hydraulic lobe pump.
D) Distributor with adjustment valves.
PC) Rack - pinion jack.
Components supplied as standard: by-pass release and adjustment key, capacitor, grooved bush and instruction manual. WARNING: An actuator can be mounted on
the left or right-hand side, as identied by looking at the gate from the inside (opening direction). An actuator can be recognised as left or right-handed by observing
the position of release pivot “PST”. Fig.1 shows an actuator to be mounted on the left.
3) ACCESSORIES
- CPS Bearing foundation case (provided for automation).
- CID Non-bearing foundation case.
- BSC Slide arm (for mounting to one side of the hinge-pivot).
4) MANUAL OPENING
In case of emergency, for instance when there is no power available, the gate must be opened by hand.
5) AUTOMATION OPERATION
As automation can be remotely controlled by means of a radio control or start button, it is essential to frequently check that all safety devices are perfectly ecient. In
case of any operational malfunction, take immediate action and request the assistance of qualied personnel. It is recommended to keep children at a safe distance
from the automation eld of action.
6) MAINTENANCE
ATTENTION: The oil of each actuator must be replaced completely every two years. Only use oil of the same type (IDROLUX).
7) SCRAPPING
Materials must be disposed of in conformity with the current regulations. In case of scrapping, the automation components do not entail any particular risks or danger.
In case of recovered materials, these should be sorted out by type (electrical components, copper, aluminium, plastic etc.).
8) DISMANTLING
When the automation system is disassembled to be reassembled on another site, proceed as follows:
- Disconnect the power supply and the entire electrical installation.
- Remove the gearmotor from its xing base.
- Disassemble the control panel, if separate, and all the installation components.
- In the case where some of the components cannot be removed or are damaged, they must be replaced.
9) MALFUNCTION: CAUSES and REMEDIES
When any operational malfunction is found, and not resolved, disconnect the power supply from the system and request the assistance of qualied personnel (in-
staller). When automation is out of order, activate the manual release to allow opening and closing manoeuvres to be carried out by hand.

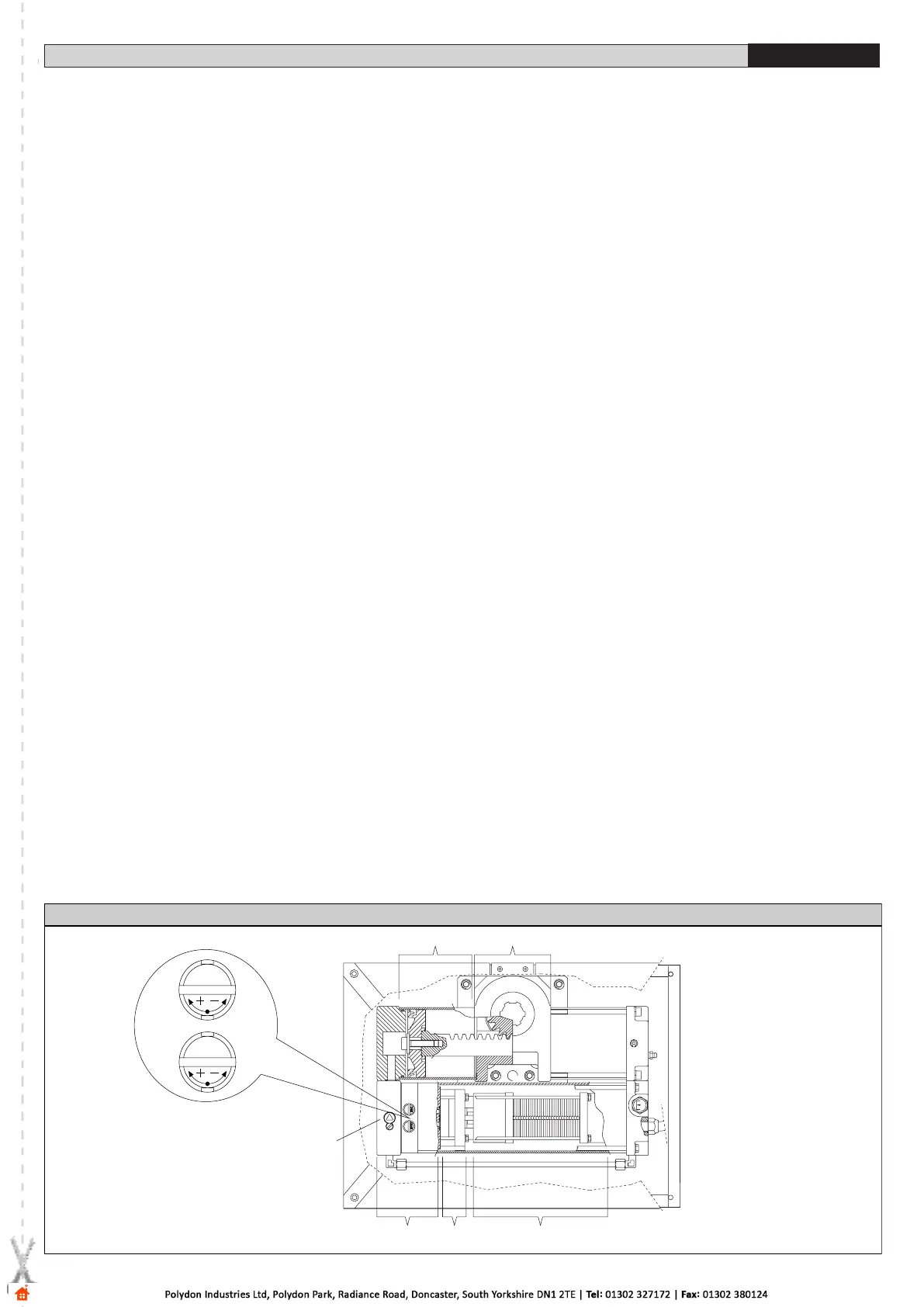

Fig. 1
OPEN
CLOSE
CPC
M
P
D
PST
CLOSE
OPEN
