Instruction Manual
BGS technic KG
Bandwirkerstr. 3
42929 Wermelskirchen
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
www.bgstechnic.com
© BGS technic KG, Copying and further use not allowed
MAINTENACE
Disconnect power and air before any maintenance!
All blasting system is prone to plugging or wear because of the abrasive material used and the
applications.
The following items should be checked for wear as indicated:
Plugged Conditions
The blast nozzle may become plugged from moist media.
Try dislodging the media with a drill bit held in your hand. You need to get rid of the most media if the
abrasive pick-up hose appears plugged cover the gun tip and force the air back through this hose.
Dust may fly up when you do this so make sure the lid is down!
Wear conditions
This is usually noted when an excessive amount of dust appears in the cabinet.
Dust will occur if:
The abrasive blasting media is worn out If it has lost its granular or spherical appearance or has a
lot of debris from the parts being blasted and mixed in replace it.
This is usually noticed when the abrasive media that exits the nozzle looks like a smoke cloud
coming instead of a stream.
The air outlet vent is lugged or air flow out is blocked. Cleaning this vent should help reduce dust
in the cabinet. This gun parts may wear may wear out.
This is usually evident when the blast pattern is too wide and ineffective, simply replace nozzle or
orifice.

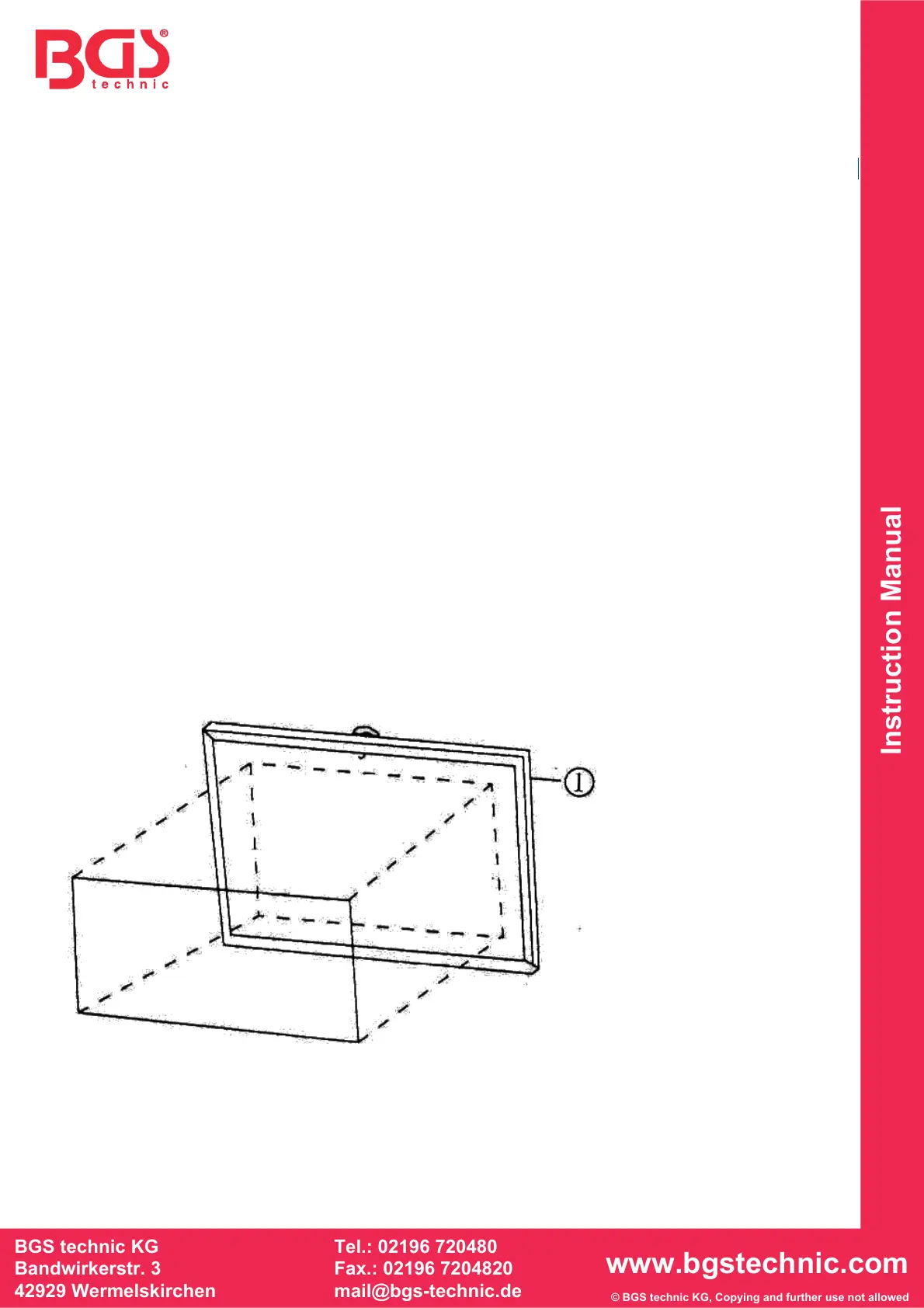

To replace the transparent PVC board
At the bottom of parts No.1 transparent top lid ,there is a 0.5mm replaceable transparent PVC board,
when at work, if the transparent PVC board is getting unclear, it may be replaced with a new one to
avoid affecting the sight during work.
0.5 mm PVC board
