BGW 150 - Performance Metrics; Component and Physical Specifications

02150-2

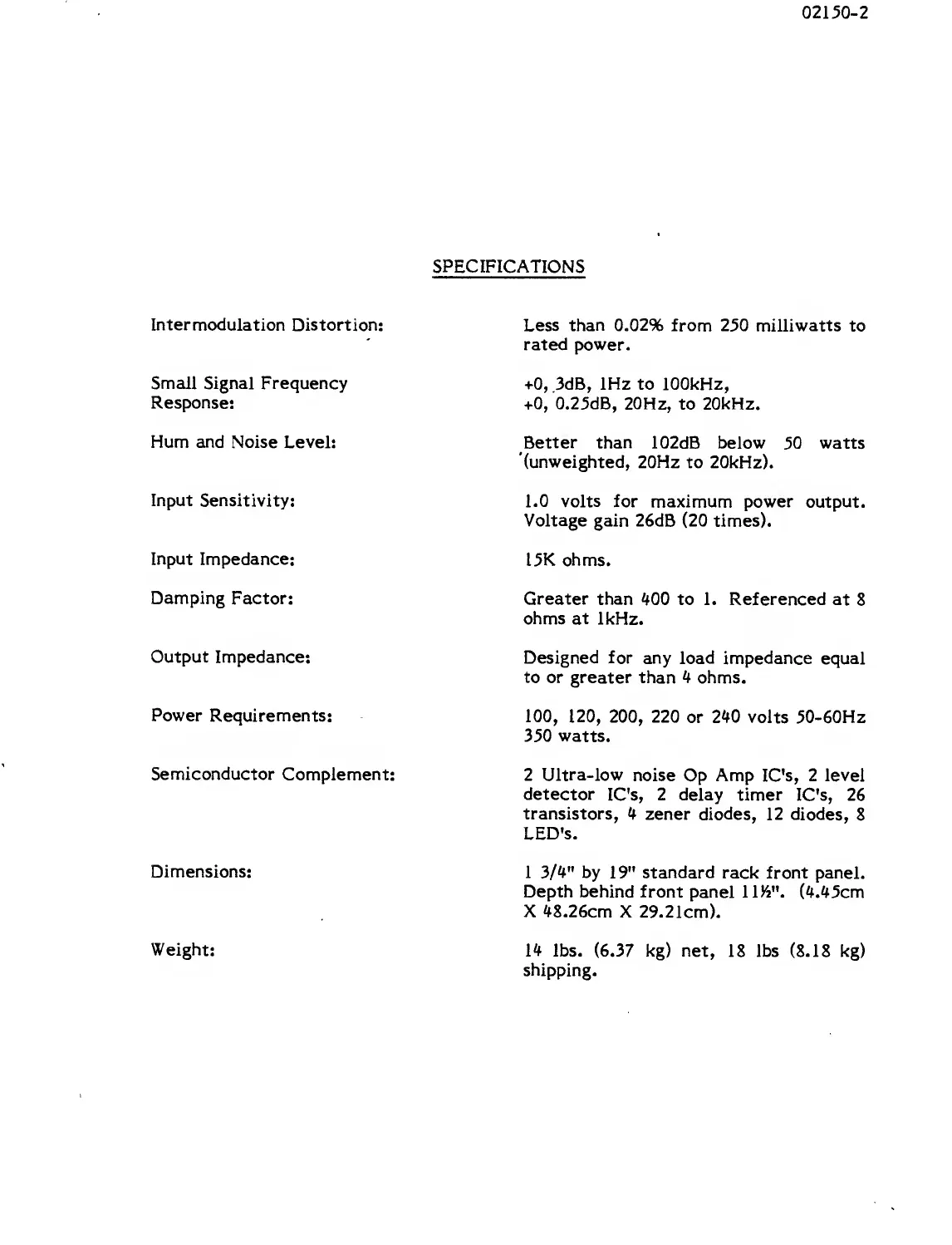

SPECIFICATIONS
Inter modulation
Distortion:
Small Signal Frequency
Response:
Less
than
0.02% from 250 milliwatts
to
rated power.
+0,
3dB, 1Hz to 100kHz,
+0,
0.25dB,
20Hz, to
20kHz.
Hum
and Noise Level:
Input
Sensitivity:
Better than
102dB
below
50 watts
(unweighted,
20Hz to 20kHz).
1.0 volts
for maximum power output.
Voltage
gain
26dB (20
times).
Input Impedance:
15K ohms.
Damping Factor:
Greater than 400
to 1. Referenced at
8
ohms
at
1kHz.
Output Impedance:
Designed for any
load impedance
equal
to or
greater than 4
ohms.
Power
Requirements:
100, 120, 200,
220 or 240
volts 50-60Hz
350 watts.
Semiconductor
Complement:
Dimensions:
Weight:
2
Ultra-low
noise
Op Amp IC's, 2 level
detector
IC's, 2
delay
timer IC's,
26
transistors,
4 zener diodes, 12 diodes,
8
LED's.
1
3/4"
by
19"
standard
rack front panel.
Depth behind
front panel
IIK
2
".
(4.45cm
X
48.26cm X
29.21cm).
14
lbs.
(6.37
kg) net,
18 lbs (8.18 kg)
shipping.
