BH ATOM 2022 - Assembly and Spare Parts; Steering Tube Assembly Details

ATOM 2022
BH
25
EA822 / EA812 / EA802 /
EA642 / EA622 / EA532 /
EA512 / EA502
EA522 / EA502 / EA402
09 ASSEMBLY AND SPARE PARTS
STEERING SPECIFICATIONS
Upper 11/8" Steerer 45º -
Lower 1,5" Steerer 45º -
STEERING SPECIFICATIONS
Upper 11/8" Steerer 45º -
Lower 1,5" Steerer 45º -
Type Type
Contact angle with the
compression ring /
forktrack
Contact angle with the
compression ring /
forktrack
Bearing dimensions Bearing dimensions

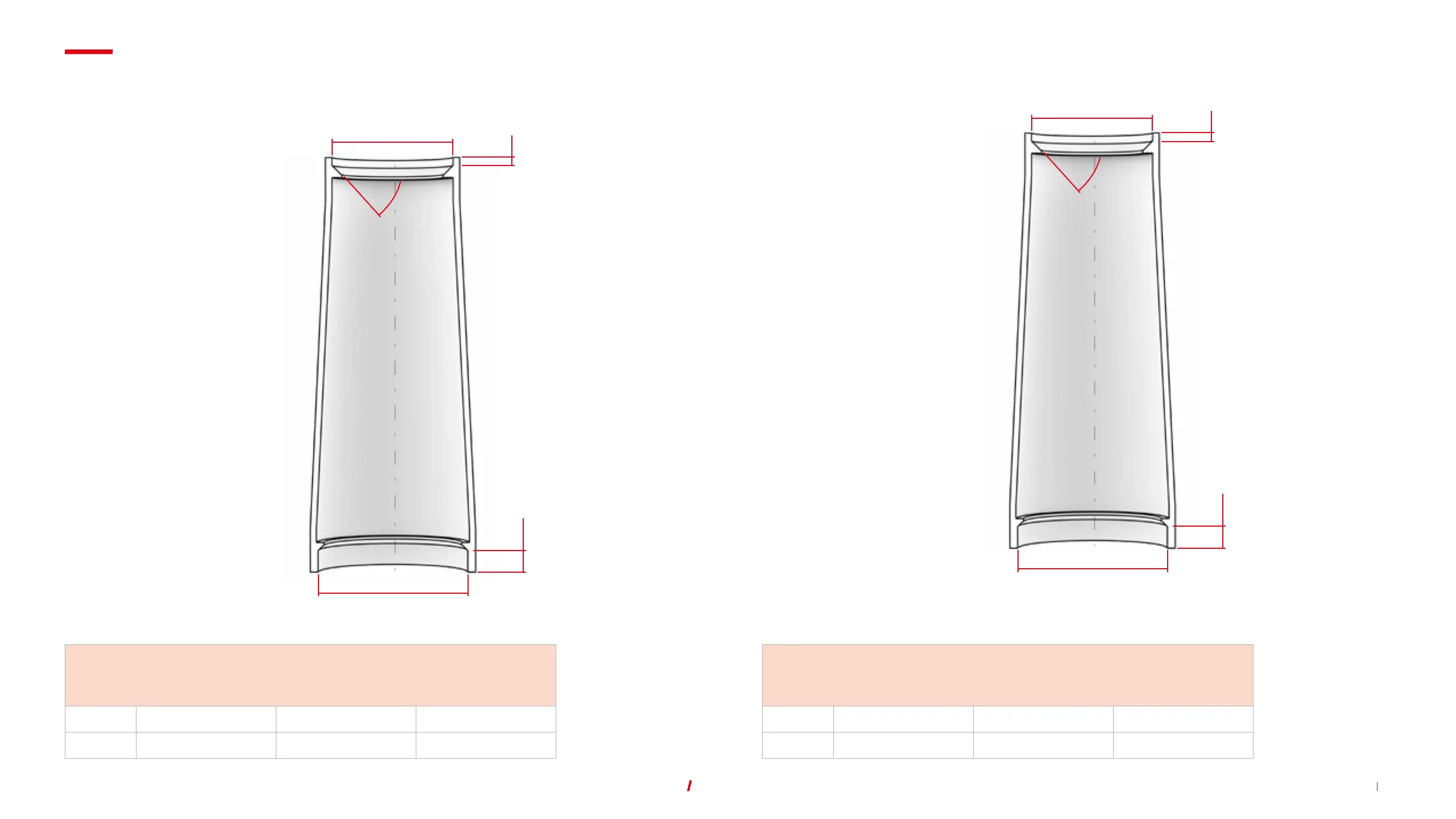

DIMENSIONS OF THE STEERING TUBE
Ø42
Ø42
3
3
7.8
7.5
45º
45º
09 ASSEMBLY AND SPARE PARTS
Ø52.1
Ø52.1
