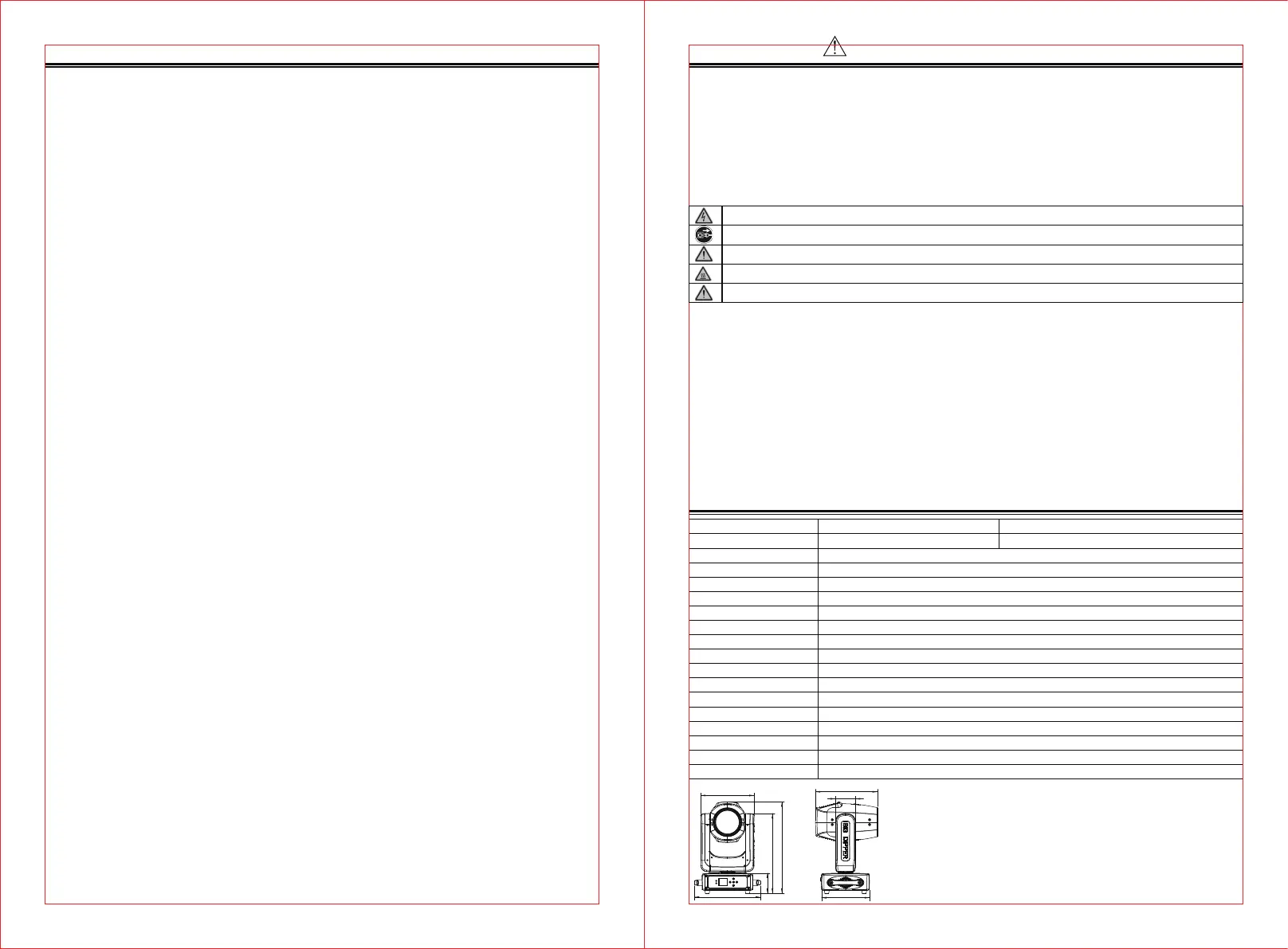

Technical Specifications
Power Consumption
Light Source (Optional)
Power Voltage
Color Temperature
Beam Angle
Movement
Dimmer/Shutter
Color Wheel
Gobo Wheel
Effect
DMX Channel
Control Mode
Display
Data In/Out
Power In
Protection Rating
Dimension
Weight
270W (CLB260) 320W (CLB260-O)
RUI 230W (CLB260) OSRAM SIRIUS HRI 251W(CLB260-O)
AC 100~240V, 50/60Hz
7800K
2.8 °
Pan: 540° / Tilt: 270° Pan/Tilt Resolution: 16 bit
Smooth dimming from 0-100%; strobe effect with variable speed
1* color wheel with 11 colors plus open and rainbow effect
1* static gobo wheel with 13 gobos plus open
1* 8-facet prism, rotatation. 1* independent frost. Fixed foucus
12 Ch
DMX512, RDM
LCD Color display
3-pin XLR (5-pin XLR is optional)
Power Connector in
IP20
275*199*428mm
6.3kgs
IMPORTANT SAFETY WARNINGS
This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe
operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this
user manual.
In order to install, operate and maintain the lighting fixture safely and correctly we suggest that the installation and
operation be carried out by qualified technicians and these instructions be carefully followed.
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept
liability for any resulting defects or problems.
This product is for indoor use only. Use only in a dry location.
The minimum distance to objects/surface must be more than 5 meters. Hot lamp explosion hazard. DO NOT open
the unit within 15 minutes after switching off.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.
Do not operate this product at a lower or higher temperature.
During initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean
that the device is defective, and it will decrease gradually within 15 minutes. Keep flammable materials away from
the fixture while operating to avoid fire hazard. Unit’s surface temperature may reach up to 85℃. DO NOT touch
the housing bare-handed during its operation.
Avoid direct eye exposure to the light source while the product is on.
The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid
vibration and slipping off during operation. Ensure that the trussing or area of installation must be
able to hold 10 times the weight without any deformation. Always install a safety cable that can
hold at least 10 times the weight of the fixture when installing.
Safety InstructionsCONTENTS
— 1 —
Safety Instructions ..................................................................................
Technical Specifications .........................................................................
Photometric Diagram...............................................................................
Control Paneloverview ............................................................................
Effect Wheels and Lamp..........................................................................
Osram Sirius Hri 251W .....................................................................................
To Replace The Lamp .......................................................................................
Lamp Replacement Warning..............................................................................
How To Set The Fixture............................................................................
Control By Universal Dmx Controller ......................................................
DMX512 connection...........................................................................................
Address Setting .................................................................................................
DMX Protocol.....................................................................................................
Error Information......................................................................................
Trouble-shooting......................................................................................
Light after-sales service...........................................................................
1
1
2
2
2
2
3
3
3
4
4
4
5
6
7
8
WARNING！Please read the instruction carefully and keep it for future reference.
CAUTION! High Voltage. Risk Of Severe Or Fatal Electric Shock.
CAUTION! Always Disconnect Mains Supply Before Removing Any Fixture Covers.
CAUTION! Never Look Directly Into The Light Source.sensitive Persons May Suffer An Epileptic Shock.
CAUTION! Never Touch The Device During Operation.covers May Be Hot
CAUTION! Indoor Use Only
380
275
331
199
257
83
83
222
