8
INSTRUMENTS AND CONTROLS - CB22 & CB33
The steering arm and control handle
provide controls for steering, forward
and reverse speed control, braking,
horn, tilting and raising and lowering the
forks. Control handles on all models
have a “belly-button” reversing switch
which reverses the direction of the truck
upon contact with the operator.
Detailed operating instructions are in
the Operation section of this manual.
A battery disconnect is mounted near
the steering arm. Pulling the disconnect
removes all power from truck circuits in
the event of an emergency.

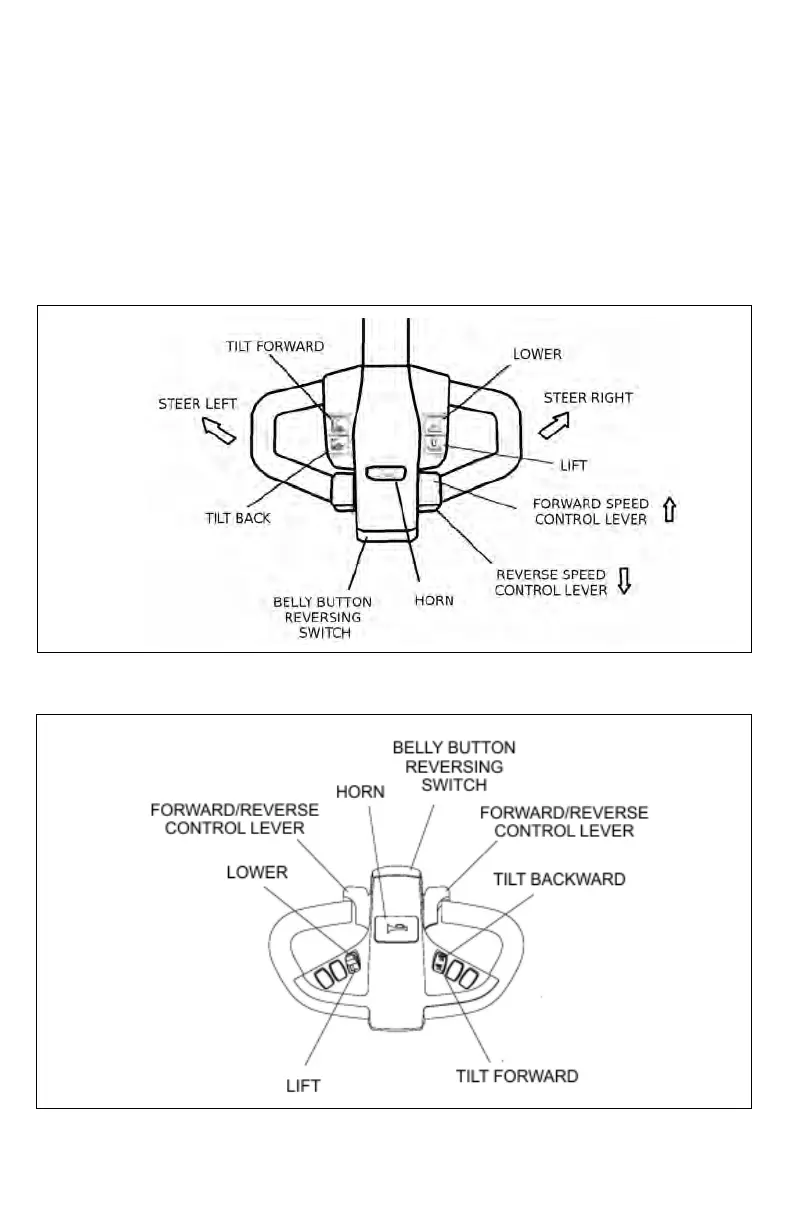

CB22 Control Handle
CB33 Control Handle
