5.3.6. Changing operating unit

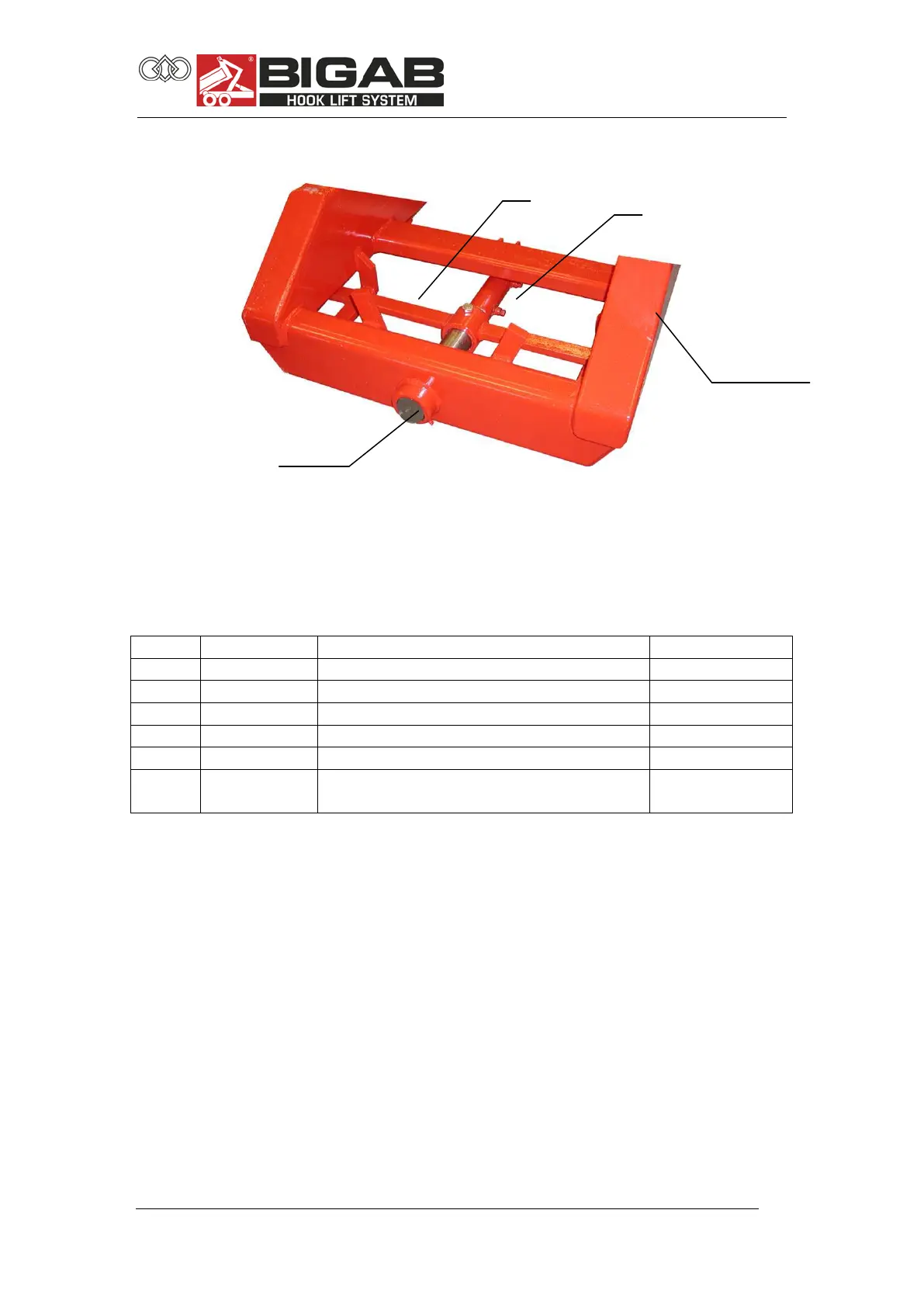

Figure 45. Changing operation unit
Changing operating unit spare parts
Table 14.
Pos.
Art. No.
Description
Note
Changing unit comp.
1
37221120
Pin
2
920515
Spring
3
37221220
Slider plate
4
37221210
Washer
5 913230 Operation changing cylinder
See chapter
3.5.1 and 5.3.8
3
1, 2, 4
5
Back frame
