BIGREP ONE GENERATION 3 - II-D Extruder Wiring

II. Electric BigRep

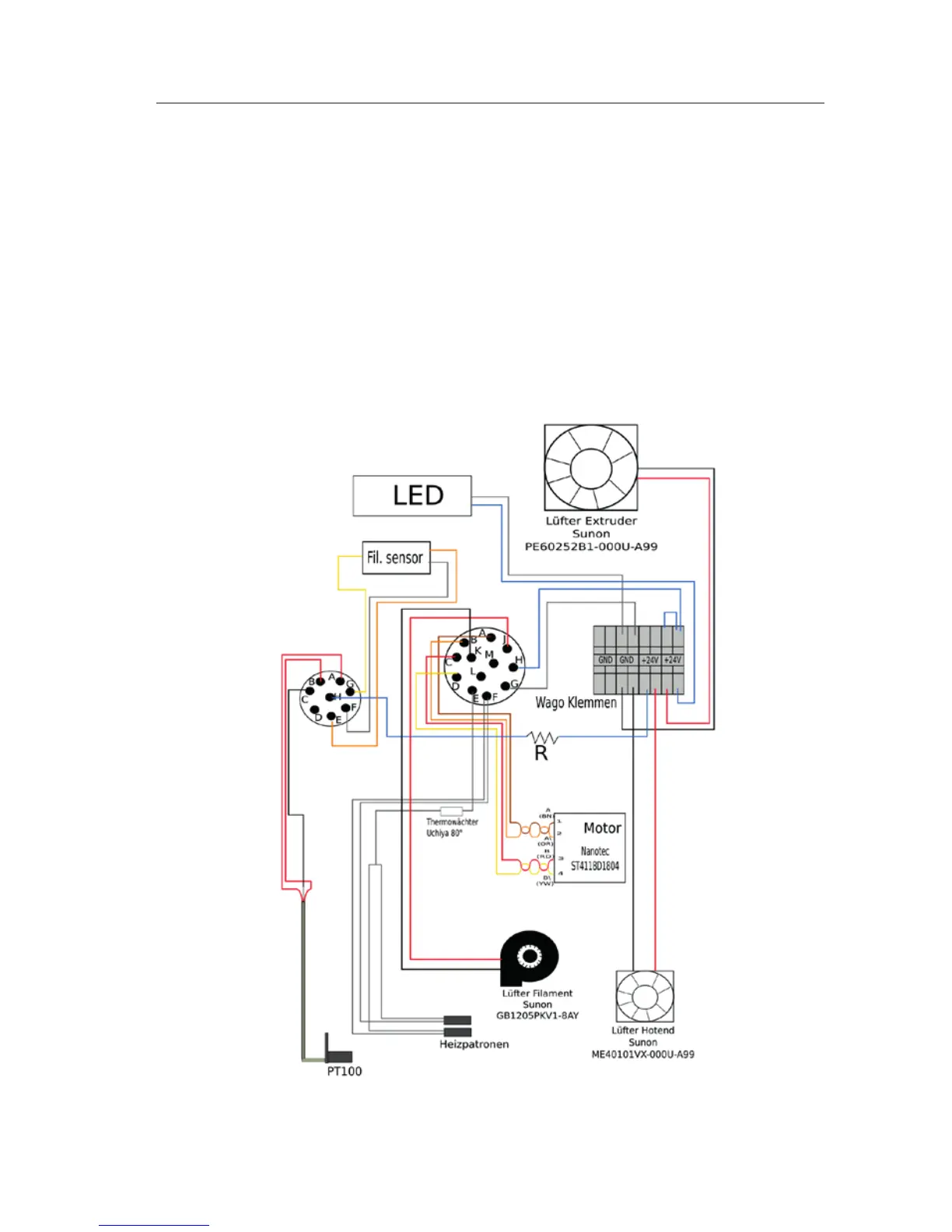

II-D Extruder Wiring
* 2016-04-07
Important: Plug out the main connectors to the printer at the back only when the
machine is switched o!
Faulty wiring means replacement of extruder.
Only wiring which can be replaced by service sta is thermocouples and heating
elements.
S/N can be found under the top cover.
II-D 1/1
