V. Maintenance BigRep

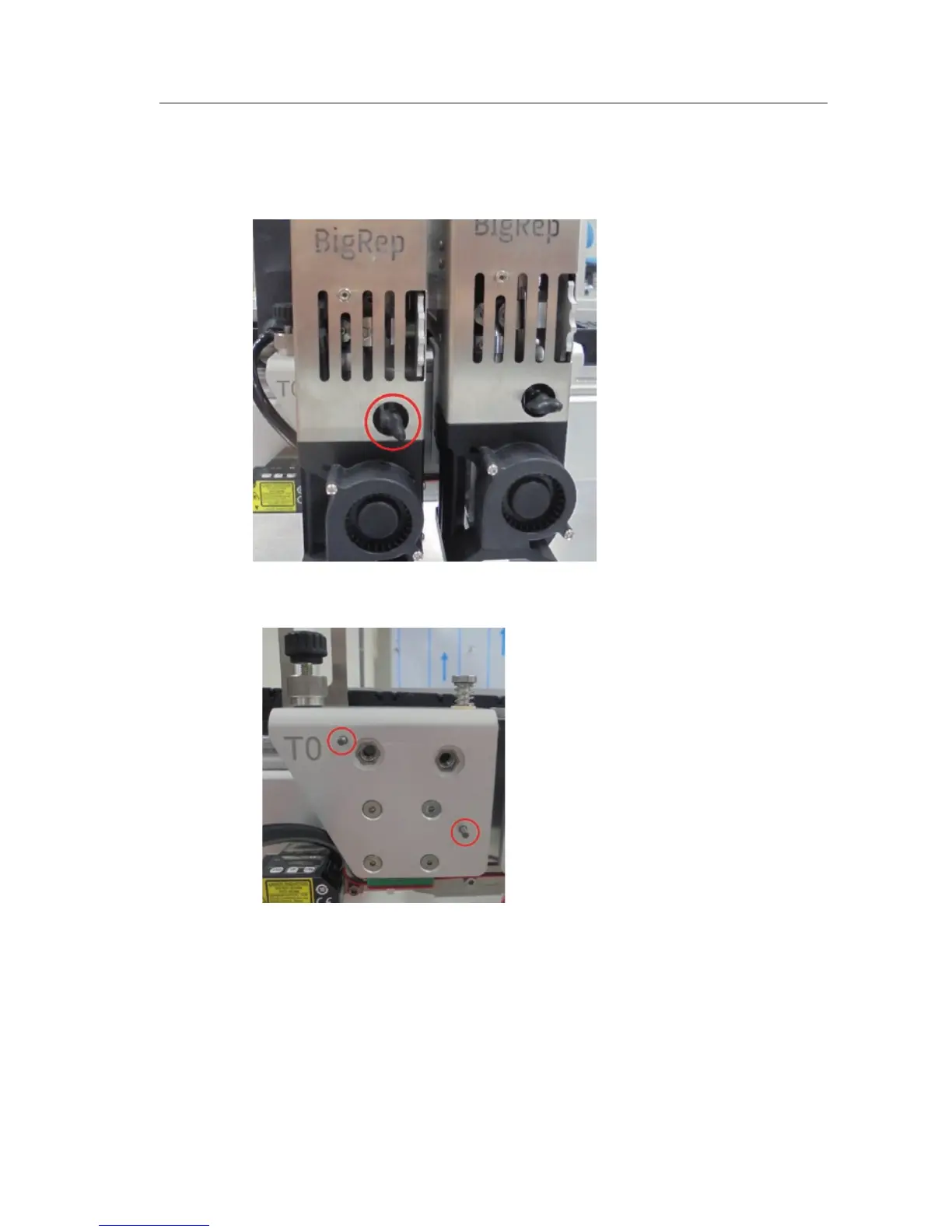

5. Loose the clamping bold at the extruders front side (no tools needed), turn
anticlockwise and make sure that you hold the extruder with the other hand
6. Take the new extruder and attach it to the plate with using the dowel pins
(marked red)
7. Screw on the clamping bold at the extruders front side (no tools needed),
turn clockwise and make sure that you hold the extruder with the other
hand
8. Attach both plugs at the extruders back
a. Screw on the security lock clockwise
9. Restart the machine
V-D 2/2
