Normal Operation
1. ON/OFF
Hold ON/OFF and start the display. The display will provide power
for the controller. Hold ON/OFF again to open the backlight. With
display on, press ON/OFF for 2 seconds to turn off the power. With the
display off, there is no battery consumption. The leakage current is no
more than 2µA.
※
The panel will go to sleep when the speed is 0 km/h for 5 minutes.

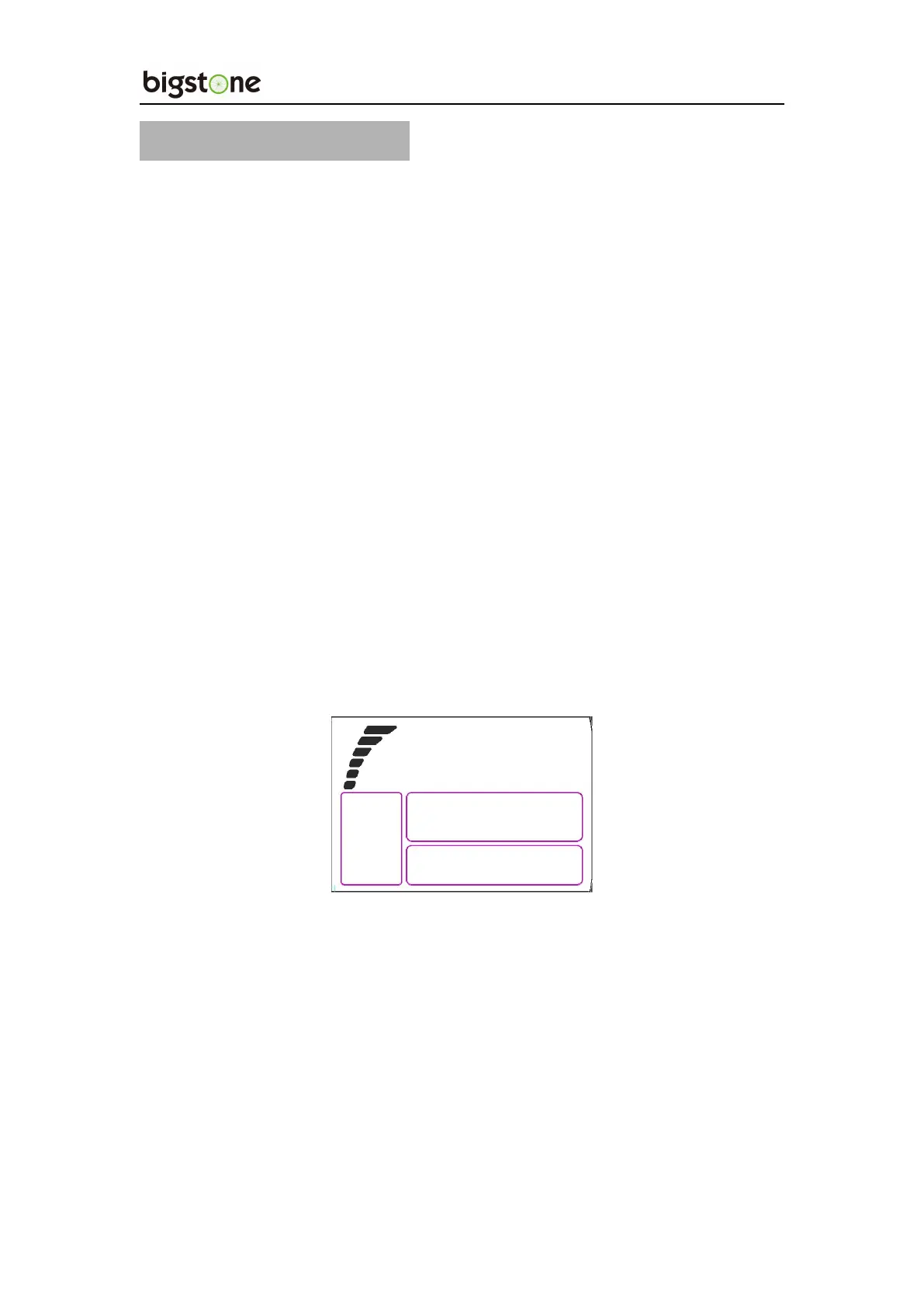

2. Current Display
That represents the discharging current of the controller currently,
each mark is 2A, six segments is >=12A.
4. Speed Display
The speed is as below, and user can select KM/H or MPH in
SET4.
