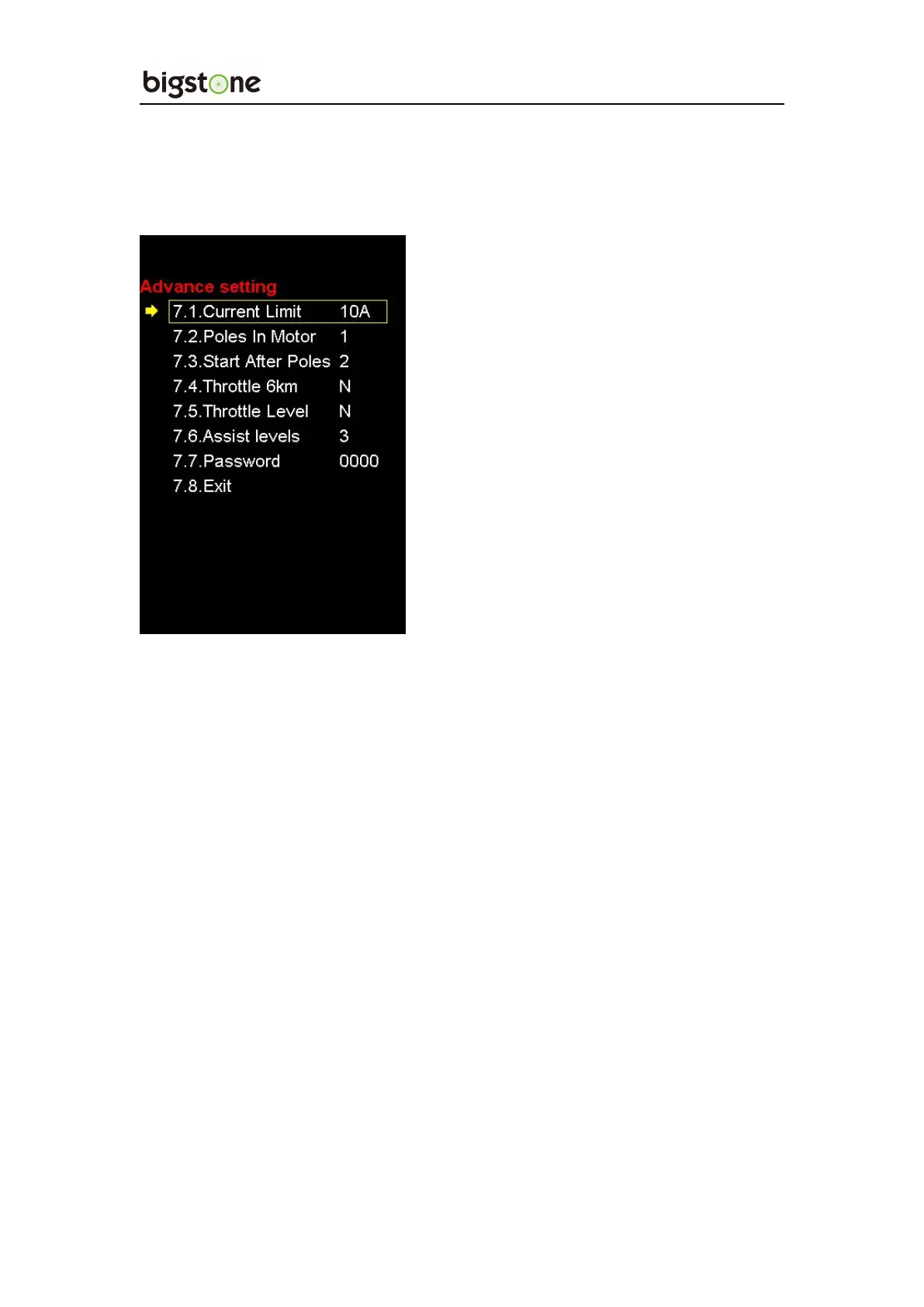

10.7: Advance setting
Click SET to enter advance setting interface.
(1) Current Limit: the range of this value is 3 - 18.
(2) Poles In Motor: the value can be set to 1 or 6.This parameter need to
be consistent with the actual parameter of motor.
(3) Start After Poles: the range of this value is 2 – 16.
(4) Throttle 6KM: select Y and turn the throttle, enter 6KM mode, select
N means the mode of throttle is normal.
(5) Throttle Level: (valid when select N in the Throttle 6KM) Y means
throttle with different level, N means throttle with one level.
(6) Assist levels: it can be set to 3,5,6,9. If user select 3, the range of
assist levels is 1-3.
