Shenzhen Big Tree Technology Co., Ltd.
BIGTREETECH
5 / 27
Product Profile
The BIGTREETECH Pad 7, a product of Shenzhen Big Tree Technology Co.,
Ltd., is a tablet equipped with pre-installed Klipper and KlipperScreen. The BTB
headers have been engineered to provide users with the flexibility to select from
various solutions, including CM4, CB1, and more.
Specifications

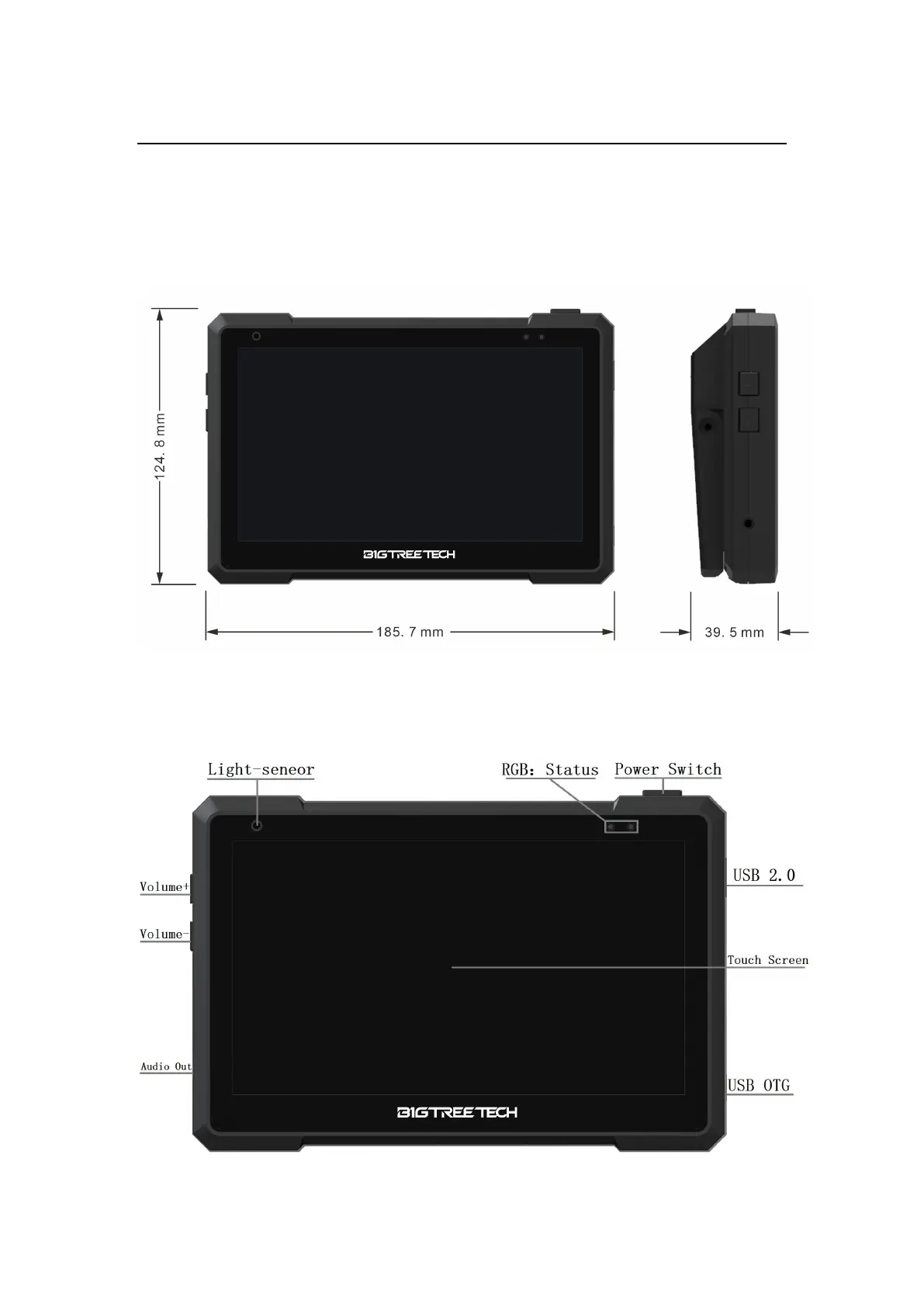

1. Dimensions: 185.7 x 124.78 x 39.5 mm
2. Display Viewing Area: 154.2 x 85.92 mm
3. Display: 7 inches, 1024 x 600 resolution, 60Hz refresh rate
4. Viewing Angle: 178°
5. Brightness: 500 Cd/m²
6. Input: DC 12V, 2A
7. Rated Power: 7.3W
8. Display Port: HDMI
9. Touch Port: USB-HID
10. PC Connection: Type-C (CM4 eMMC OS writing)
11. Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card
12. Core Board: BIGTREETECH CB1 v2.2, 1GB, accompanied by a SanDisk 32
GB memory card
Feature Highlights
1. The 7-inch IPS touch screen offers a wider field of view, high level of detail,
and a comfortable user experience.
2. Features a built-in speaker, which allows you to adjust the volume with the
volume buttons.
3. Having a 3.5mm headphone jack, which enables you to connect headphones
or external speakers.
4. The touch experience is enhanced with vibration feedback.
5. The built-in light sensor adjusts the backlight brightness automatically based
on the available light.
