To Replace CB1 with CM4

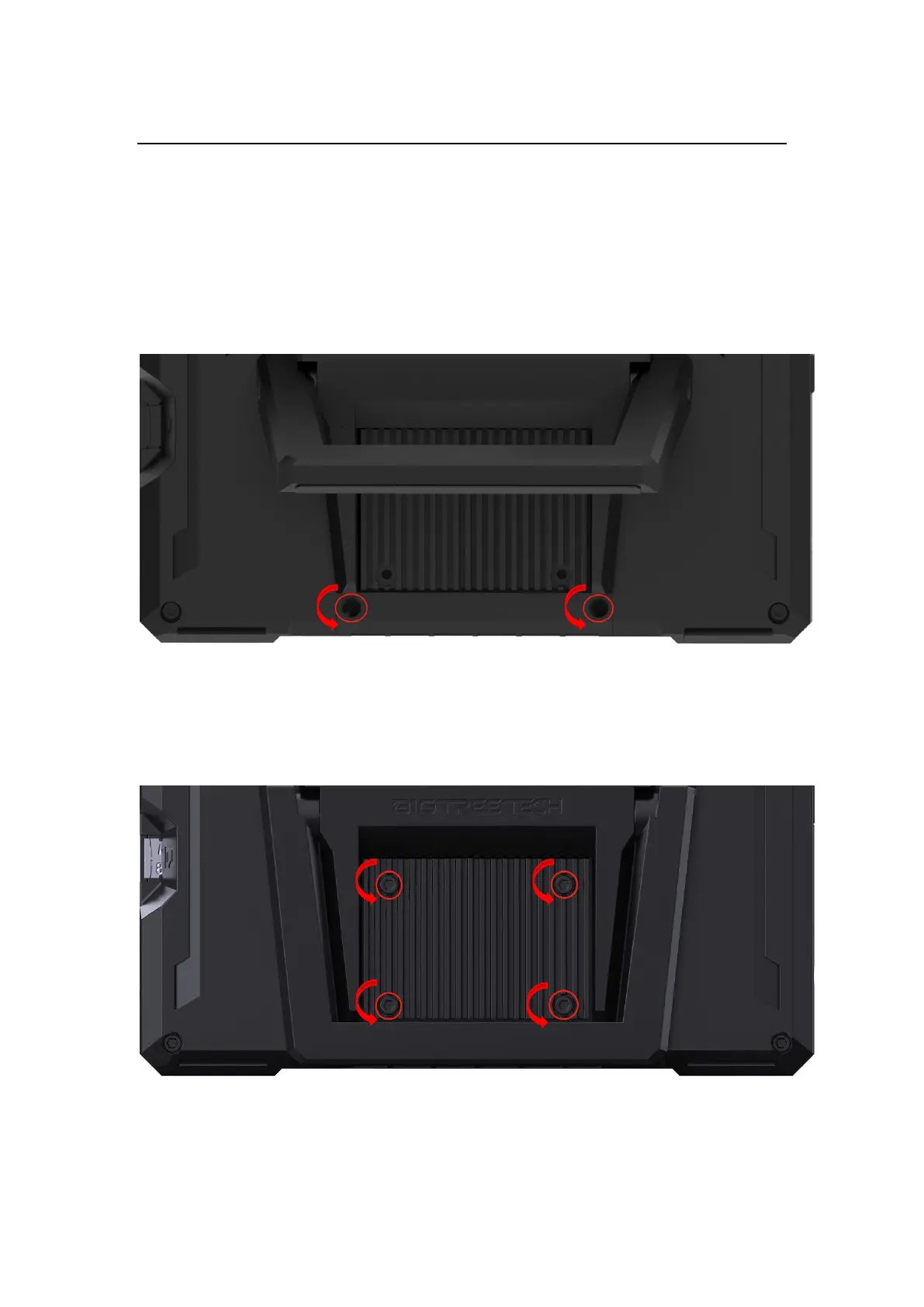

1. Disconnect the power supply, and place the Pad 7 backside up on a flat

surface.

2. Use a 1.5 mm hex key to remove the two M2.5 x 3 flat head countersunk

screws in a counterclockwise direction.

Slide the bottom cover upwards using your fingers.

3. Use a 2.0 mm hex key to remove the four M2.5 x 10 socket head cap screws

in a counterclockwise direction.

Remove the heatsink.
