BIGTREETECH TMC5160T Plus V1.0 User Manual
7
Interface Introduction
Installation and Interface

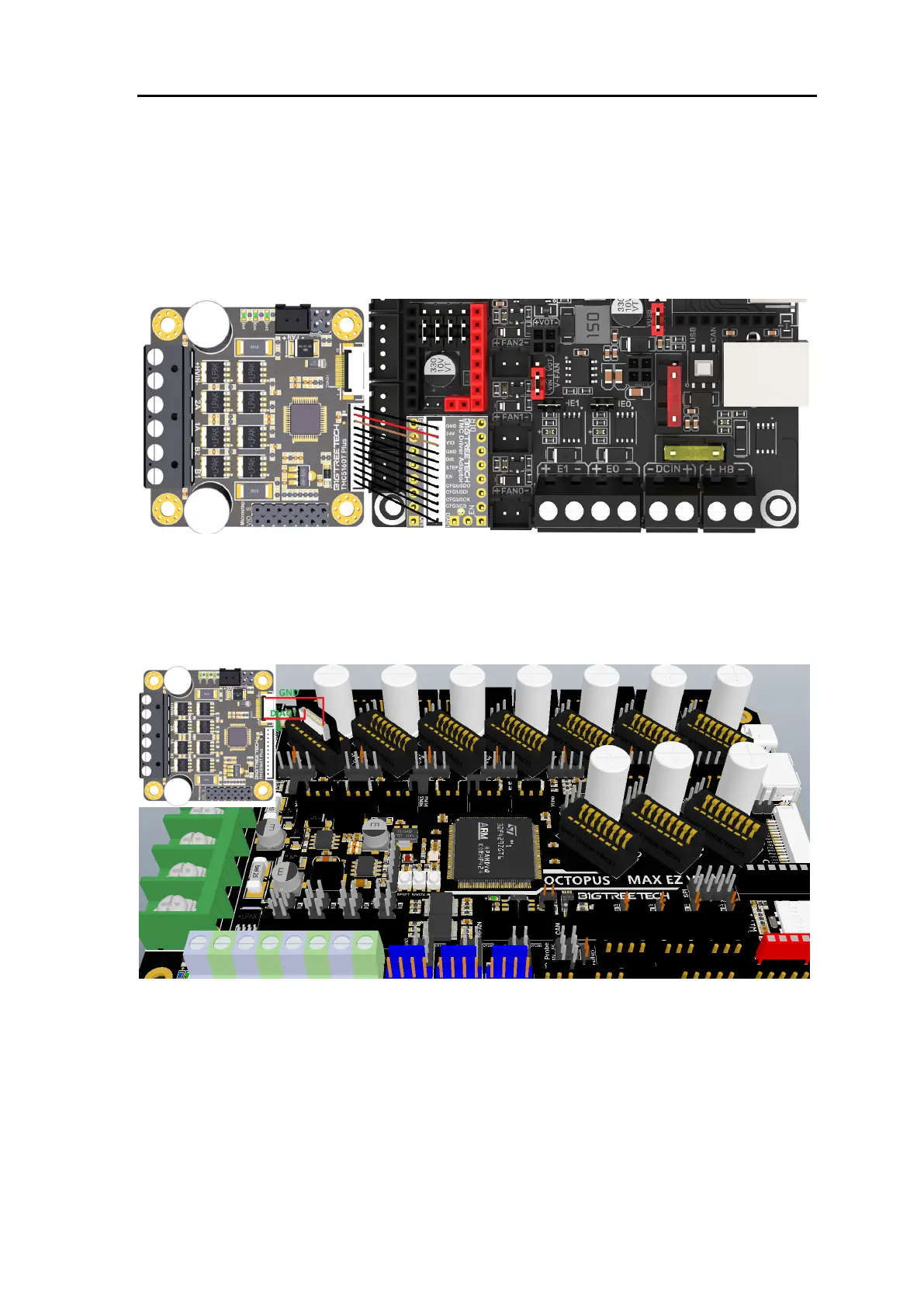

Connection methods for common motherboards (e.g., SKR3), use the supplied
TMC Driver Adaptor and cables to connect the TMC5160T Plus with SKR3 as
shown in the diagram:
For EZ series motherboards (e.g., Octopus MAX EZ), use the supplied EZ Driver
Adaptor and cables to connect the TMC5160T Plus with Octopus MAX EZ as
shown in the diagram:
