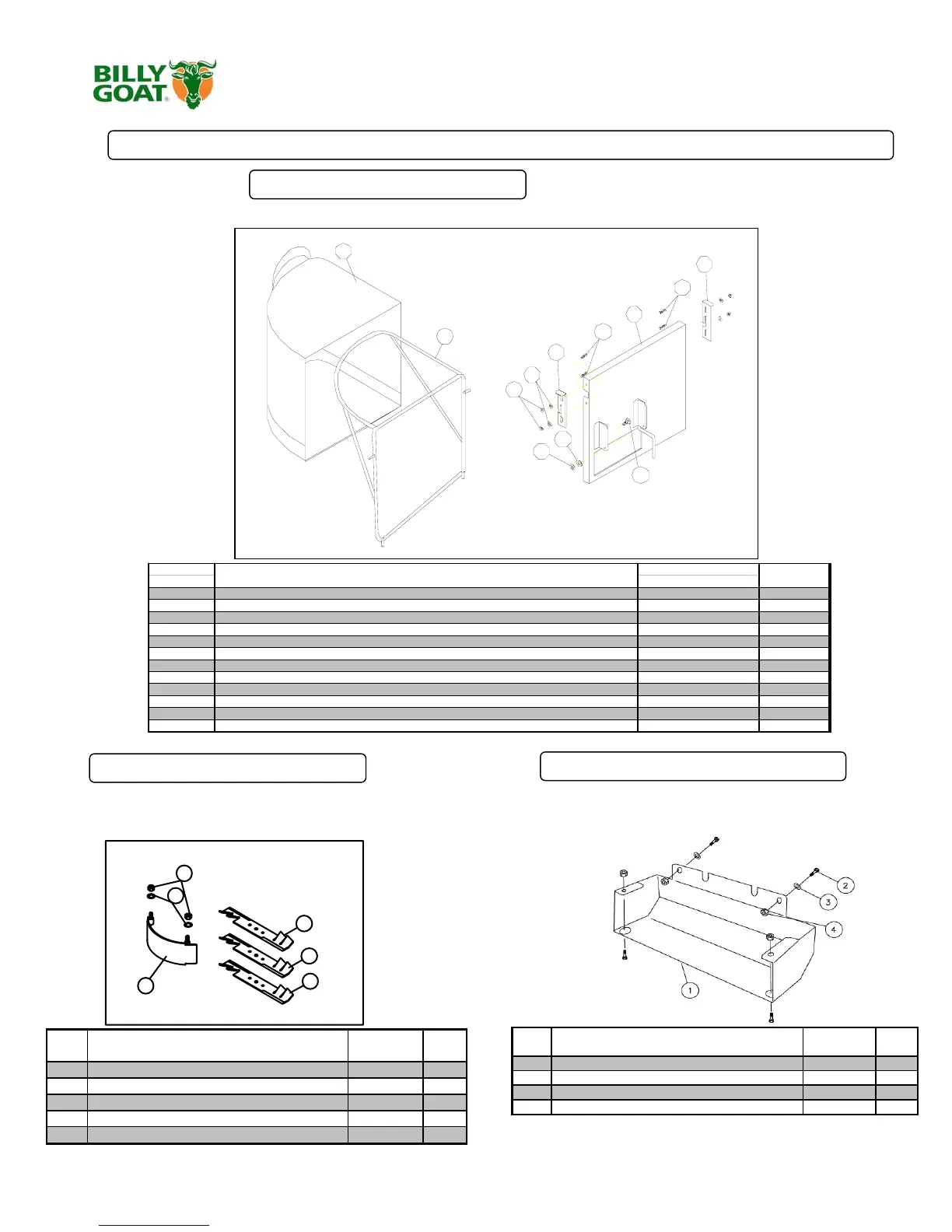

ACCESSORIES
1
2
3
10
9
11
8
6
5
4
7
10
GRASS CATCHER KIT P/N 520142
MULCHING KIT P/N 520144
TRANSAXLE GUARD KIT P/N 520155
IT E M Part NO.
NO .
1 G RA SS CA TCHER BA G 520012 1
2 W IRE FRA ME G RA SS CA TCHER FM 520038 1
3 G RA SS CA TCHER MO UNT W A FM 520069 1
4 BRA CKET GRA SS CA THCER LA TCH L FM 520059 1
5 BRA CKET GRA SS CA THCER LA TCH R FM 520060 1
6 SCREW CA P 1/4" - 20 X 1” Z P 8041006 1
7 W A SHER 1/4” FC Z P 8171002 1
8 NUTLOCK 1/4" - 20 8160001 1
9 W A SHER #8 SA E 520126 4
10 SCREW RO UND HEA D #8-32 X 3/4” CLEA R Z INC 520128 4
11 NUTLOCK #8 - 32 520129 4
12 LIT G RA SS CA TCHER KIT FM 520147 1
D E S C R IP T IO N QTY
ITEM
Part NO.
NO.
1 MULCHING PLATE WA FM 520014 1
2 BLADE 11.88” MULCHING 520002 3
3 NUTLOCK 3/8”-16 THIN HGT 8161042 2
4 WASHER 5/16 FC 8171003 2
5 LIT MULCHING KIT FM 520148 1
DESCRIPTION QTY
ITEM
Part NO.
NO.
1 BRACKET GUARD TRANSAXLE FM 520151 1
2 SCREWCAP 5/16-18X1” 8041028 4
3 WASHER 1/4 FC 8171002 2
4 NUTLOCK 5/16 - 18 8160002 4
DESCRIPTION QTY
Purpose: Reduces lawn clippings to fine nutrient-rich
particles that filter down to the soil.
Purpose: To protect the transaxle from accidental
contact from concrete curbs or other hazards.
Purpose: Easily convert your mower to bag grass and leaves.
1
3
4
2
2
2
