Figure 6a
Figure 6
Figure 7
Figure 8

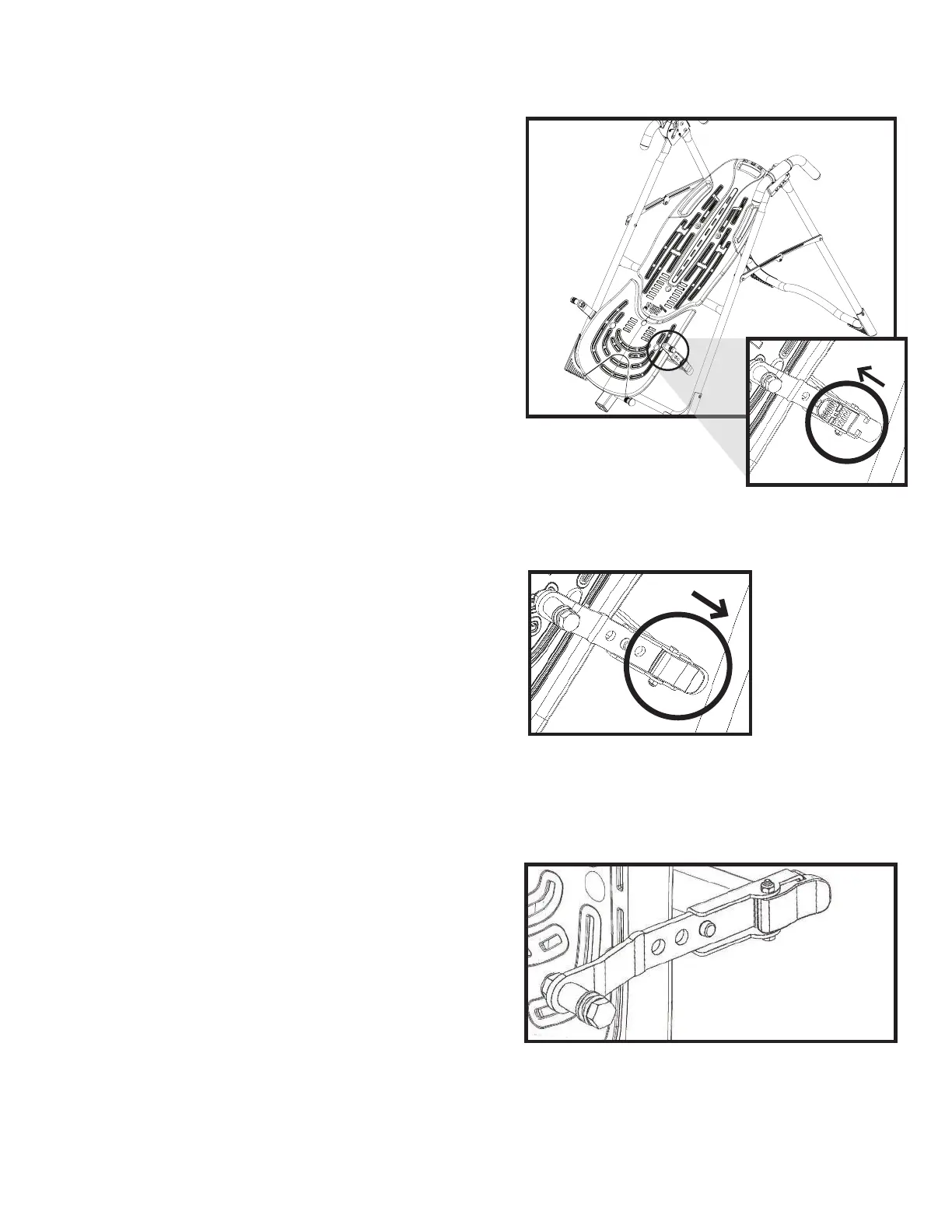

Figure 6: For ease of assembly, rest the Table Bed
against the Crossbar at the front of the A-Frame.
Figure 6a: On one side of the Table Bed, lift and
hold the Cam Lock up all the way to unlock.
In your other hand, hold one Roller Hinge near the
Pivot Pin. With the Pivot Pin facing out (away from
the Table Bed), slide the bottom of the Roller Hinge
between the Cam Lock and t
he Bracket in the
same direction as the arrow label located inside of
the Cam Lock.
TIP: Make sure that the Cam Lock is completely
open when inserting the Roller Hinge, otherwise
assembly will be more difficult.
Figure 7: Engage one of the holes in the Roller
Hinge over the Bracket Pin. Push down on the
Cam Lock to lock it and secure the Roller Hinge.
Repeat on other side. Make sure the Roller Hinges
are in the same hole setting on both sides.
Figure 8: This figure shows the Roller Hinge
installed correctly, with the Bracket Pin engaged in
Setting C. Use your recommended hole selection
based on the chart from page 6.
CLOSED / LOCKED
7
