Binary B-200-1CAT-HDIR - IR Receiver In - Receiver Only; IR Flasher Out; HDMI Out to Display

B-200-1CAT-HDIR Installation and Users Manual
pg.11
© 2013 Binary

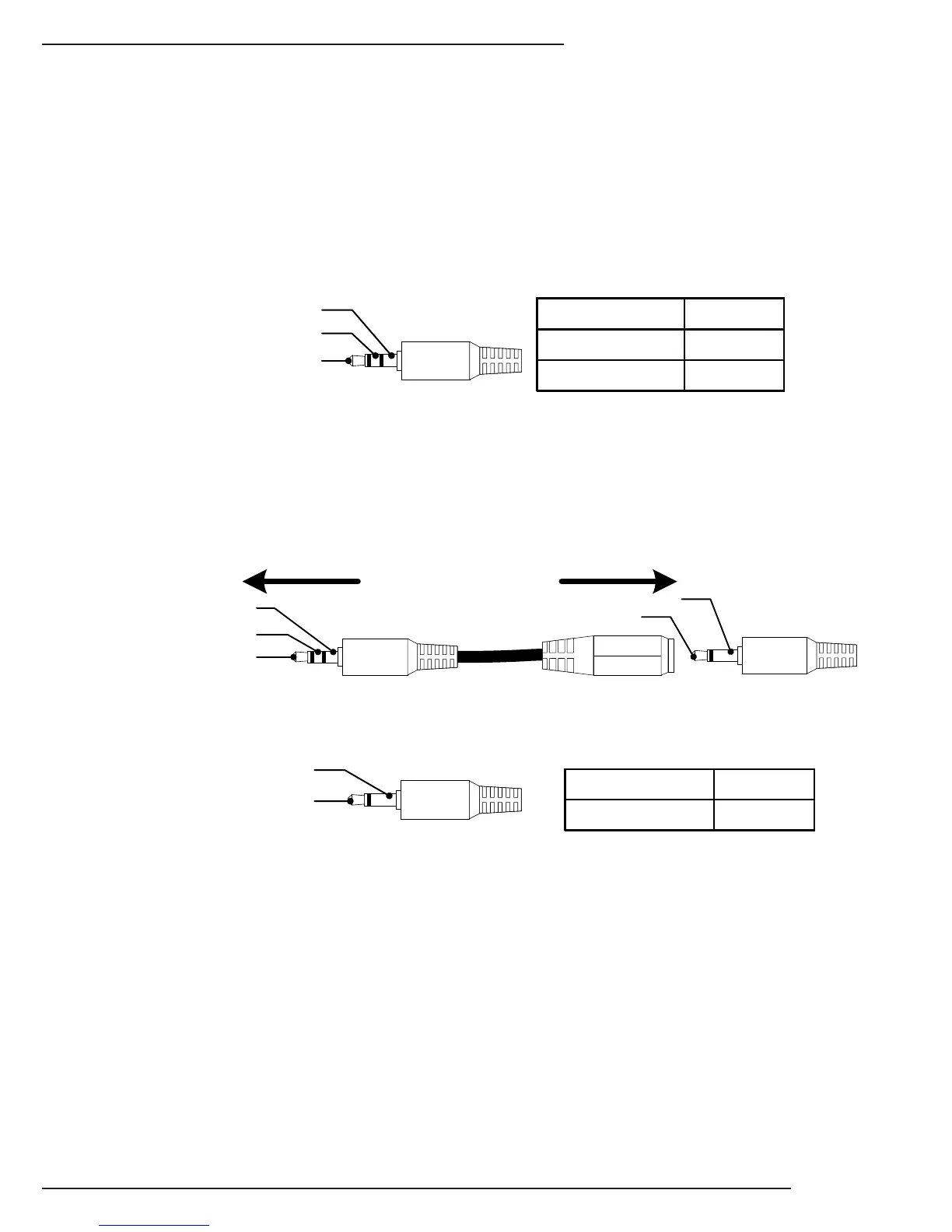

5.2.2. IR Receiver In– Receiver Only (3.5mm {1/8”} Stereo)
If the system requires connection to an Automation System or Connecting Block to
send IR to the Transmitter, the included IR Adapter Cable between the Automation
System or Connecting Block output and the IR Receiver input must be used.
IR Signal (Tip)
GND (Ring)
9V DC (Sleeve)
IR Signal Tip
GND (Ground) Ring
+9V DC Sleeve
IR Signal (Tip)
GND (Ring)
9V DC (Sleeve)
IR Signal (Tip)
GND (Sleeve)
To IR Receiver In
To IR Control System
or Connecting Block
The most common use of the IR Receiver port is to send an IR signal from a powered
IR Receiver to an IR Flasher connected to the Transmitter. This connection includes
+9V DC power for an IR Receiver. A 3.5mm {1/8”} Stereo Cable is used to connect
directly to an IR Receiver, DO NOT connect a mono cable to this connection as
damage may occur.
5.2.3. IR Flasher Out– Transmitter and Receiver (3.5mm {1/8”} Mono)
5.3.1.1. Recommended Cabling
 • 1 meter or shorter HDMI Cable
IR Signal (Tip)
GND (Sleeve)
IR Signal Tip
GND (Ground) Ring
5.3. HDMI Out to Display (HDMI)
