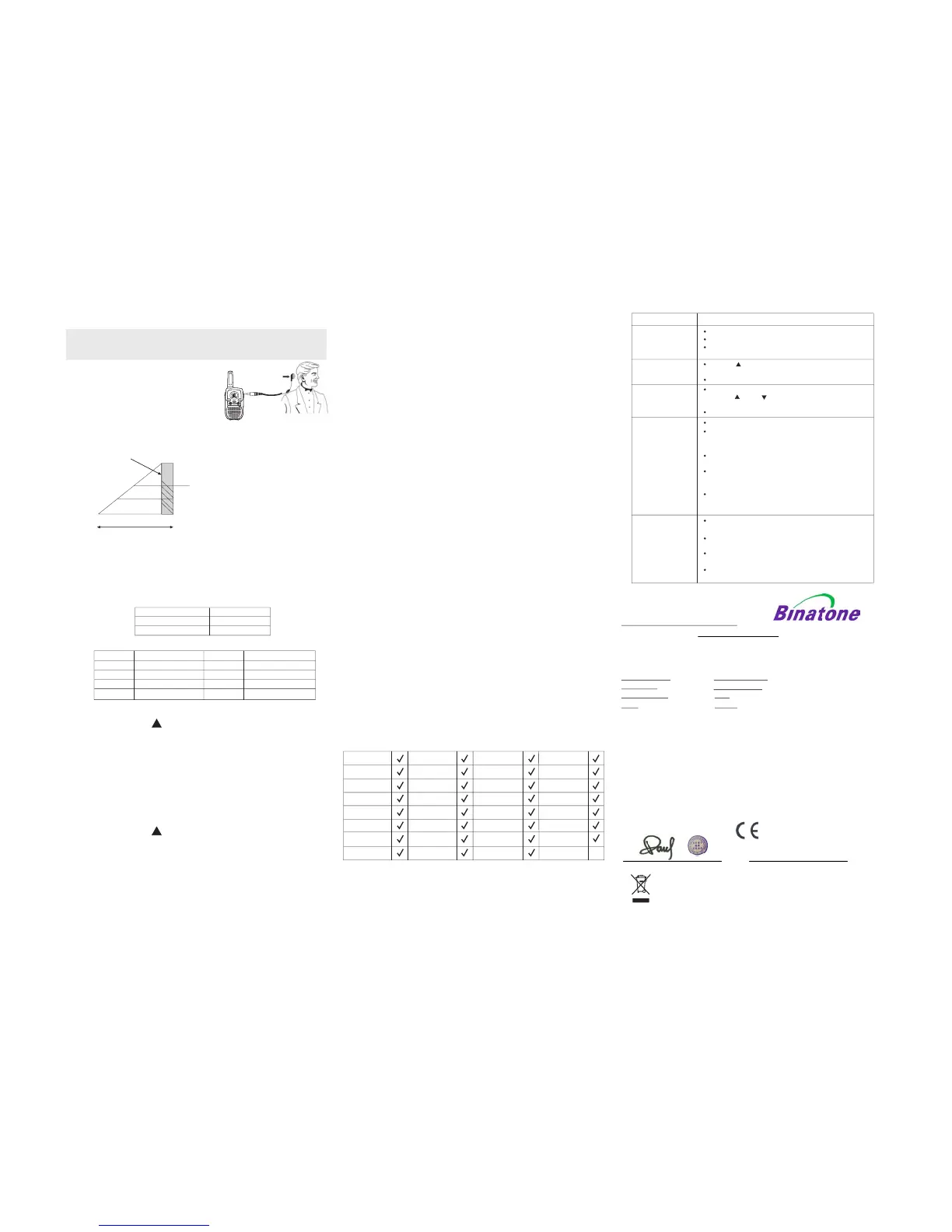

5. Specifications
Channel available 8 Channels
Output Power (TX) 0.5W
Range 7Km
Channel frequency table
Channel
Frequency (MHz)
1
2
3
4
5
6
7
8
446.00625
446.01875
446.03125
446.04375
446.05625
446.06875
446.08125
446.09375
Channel
Frequency (MHz)
Do not use any PMR that has a damaged antenna. If a damaged antenna comes
in contact with the skin, a minor burn may result.
All batteries can cause property damage and/or bodily injury such as burns if
conductive material such as jewellery, keys or beaded chains touch exposed
terminals. The material may complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any charged battery, particularly
when placing it inside a pocket, purse or other container with metal objects.
Do not place your PMR in the area over an air bag or in the air bag deployment
area. Air bags inflate with great force. If a PMR is placed in the air bag
deployment area and the air bag inflates, the PMR may be propelled with great
force and cause serious injury to the occupants of the vehicle.
CAUTION
Damaged Antenna
!
Batteries
WARNING
!
6. Safety
terrain where it is being used. The following diagram attempts to guide the
user on the sort of performance to expect for every day use.
Range (Km)
7
0
Range Slope
Heavily built up area (3)
Medium ground based
obstruction (2)
Optimum (open area) (1)
Signal strength
4.6 Range Check
The transmission range will be affected as shown in the above diagram.
The transmitting range typical values for different environment conditions
only guide values as actual achieved distances will be dependent on the
4.5 Effective Range
The transmission range of the product is dependent on the environment and
For Vehicles with an Airbag
4.4 Using a Hands free kit (Headset)
You can plug a hands free kit into the socket
4.3 Microphone/Earphone/Charger Jack
The Terrain 200 is equipped with an auxiliary microphone, earphone,
and charge jack located at the opposite side to the PTT button.
N
ot
e
:
It requires a microphone/earphone with a 2.5mm, 3-pole jack connector,
and this is not supplied with your Terrain 200.
on the right side of your Terrain 200 handset.
With a hands free kit, press the PTT button
to transmit and talk to other radios.
will be (1) 7km ,(2) 3 km ,(3) 1.5km. It should be remembered that these are
environment and terrain.
Austria
Belgium
Bulgaria
Croatia
Cyprus
Czech
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Liechten ste in
Luxember g
The Nether lan ds
Norway
Poland
Portugal
Slovenia
Spain
Sweden
Switzerl and
Turke y
UK
Romania
This equipment is intended for use in the following countries:
This product is guaranteed against manufacturing defects for a period of 1 Year.
This does not cover the product where the fault is due to misuse, abuse, use in
contravention of the instructions, or where the product has been the subject of
unauthorised modifications or alterations, or has been the subject of
In the event of a problem with the product within the guarantee period please
return it to your nearest Argos store.
If the item is shown to have had an inherent defect present at the time of sale,
the store will provide you with a replacement.
Your statutory rights remain unaffected.
Guarantor; Argos Ltd
489 - 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
commercial use.
To avoid possible interference with blasting operations, turn your PMR OFF near
blasting caps or in a "blasting area" or in areas with warning signs to turn off
Cleaning and Care
To clean your PMR, use a soft cloth dampened with water. Do not use cleaners or
solvents, which may cause damage that may not be covered by guarantee.
Blasting Caps and Areas
Do not replace or charge batteries in a potentially explosive atmosphere. Contact
sparking may occur while installing or moving batteries and cause an explosion.
Batteries
**Please note that all calls are charged at local rate
www.binatonetelecom.com
Binatone Helpline
Monday to Friday
from 9:00am to 5:00pm
Tel: 0845 345 9677
or visit our website:
(for UK only)
unless it is type qualified for such use (for example,Factory Mutual Approved).
Sparks in such areas could cause an explosion or fire resulting in injury or
even death.
Potentially Explosive Atmospheres
Slovakia
two-way radios. Obey all signs and instructions.
Turn your PMR OFF when in any area with a potentially explosive atmosphere,
7. Product Guarantee
EC Declaration of Conformity
We the manufacturer / Importer : Binatone Telecom Plc
1 Apsley Way London
NW2 7HF, United Kingdom.
Declare under our sole responsibility that the following product
Type of equipment:
Private Mobile Radio
Model Name:
Terrain 200 Series
Country of Origin:
China
Brand:
Binatone
complies with the essential protection requirements of R&TTE Directive 1999/5/EC on the
approximation of the laws of the Council Directive 2004/108/EC on the approximation of
the laws of the Member States relating to electromagnetic compatibility (EMC) and the
European Community Directive 2006/95/EC relating to Electrical Safety.
Assessment of compliance of the product with the requirements relating to the essential
requirements according to Article 3 R&TTE was based on Annex III of the Directive
1999/5/EC and the following standard:
EMC:
Electrical Safety:
The product is labelled with the European Approval Marking CE as show. Any Unauthorized
modification of the product voids this Declaration.
Manufacturer / Importer
(signature of authorized person)
London,
Signature: Place & Date: 8th Nov, 2010
EN 60950-1:2006+A11:2009
EN 301 489 -5 V1.3.1:(2002-08)
EN 301 489 -1 V1.8.1:(2008-04))
BINATONE TELECOM PLC
1 Apsley Way London NW2 7HF,United Kingdom.
Tel: +44(0) 20 8955 2700 Fax: +44(0) 20 8344 8877
e-mail: binatoneuk@binatonetelecom.co.u
k
EN 300 296 -2 V1.2.1:(2009-02)
Product Operation Director
Symptom Solution
No power Check the batteries are installed properly
The batteries may be weak
Replace the old batteries with new ones or recharge
Press the (UP) button to increase the receiver
volume level.
The receiving signal may be weak and/or out of range.
To change channels, press the MENU button once then
press the (UP) or (DOWN) buttons to change the
current channel.
Batteries may be weak.
Batteries may be weak
Recharge rechargeable batteries or replace them with new
ones if the battery charge level is low. (The battery low
icon is flashing).
The maximum range will vary depending on terrain and
environment
Open fields provide the maximum range, while steel/
concrete structures, heavy foliage and use in buildings
and in vehicles may limit the range significantly.
Wearing the radio close to the body, such as in a
pocket or on a belt, will decrease range; change the
location of the radio.
If you are transmitting, speak in a normal tone of voice,
5cm away from the Mic (microphone).
If you are receiving, lower the volume to a comfortable
level.
Radios too close. Radios must be at least 1.5 meters
apart, increase your distance.
Radios too far apart. Obstacles interfere with transmission.
Talk range is up to 7Km in clear unobstructed conditions.
Reception
is weak
Can not change
channels
Range is limited
Sound distortion
problems
UK Argos Ver 1.0 Nov-2010
rechargeable ones.
Waste electrical products must not be disposed of with house hold waste.
This equipment should be taken to your local recycling centre for safe treatment.
8. Troubleshootion Guide
