TROUBLE SHOOTING
Product discharged from exhaust outlet.
y
Check for diaphragm rupture.
y
Check tightness of diaphragm nut.
Air bubbles in product discharge.
y
Check connections of suction plumbing.
y
Check “O” rings between intake manifold and uid caps.
y
Check tightness of diaphragm nut.
Low output volume, erratic ow, or no ow.
y
Check air supply.
y
Check for plugged outlet hose.
y
Check for kinked (restrictive) outlet material hose.
y
Check for kinked (restrictive) or collapsed inlet material
hose.
y
Check for pump cavitation − suction pipe should be sized
at least as large as the inlet thread diameter of the pump
for proper ow if high viscosity uids are being pumped.
Suction hose must be a non-collapsing type, capable of
pulling a high vacuum.
y
Check all joints on the inlet manifolds and suction con-
nections. These must be air tight.
y
Inspect the pump for solid objects lodged in the dia-
phragm chamber or the seat area.

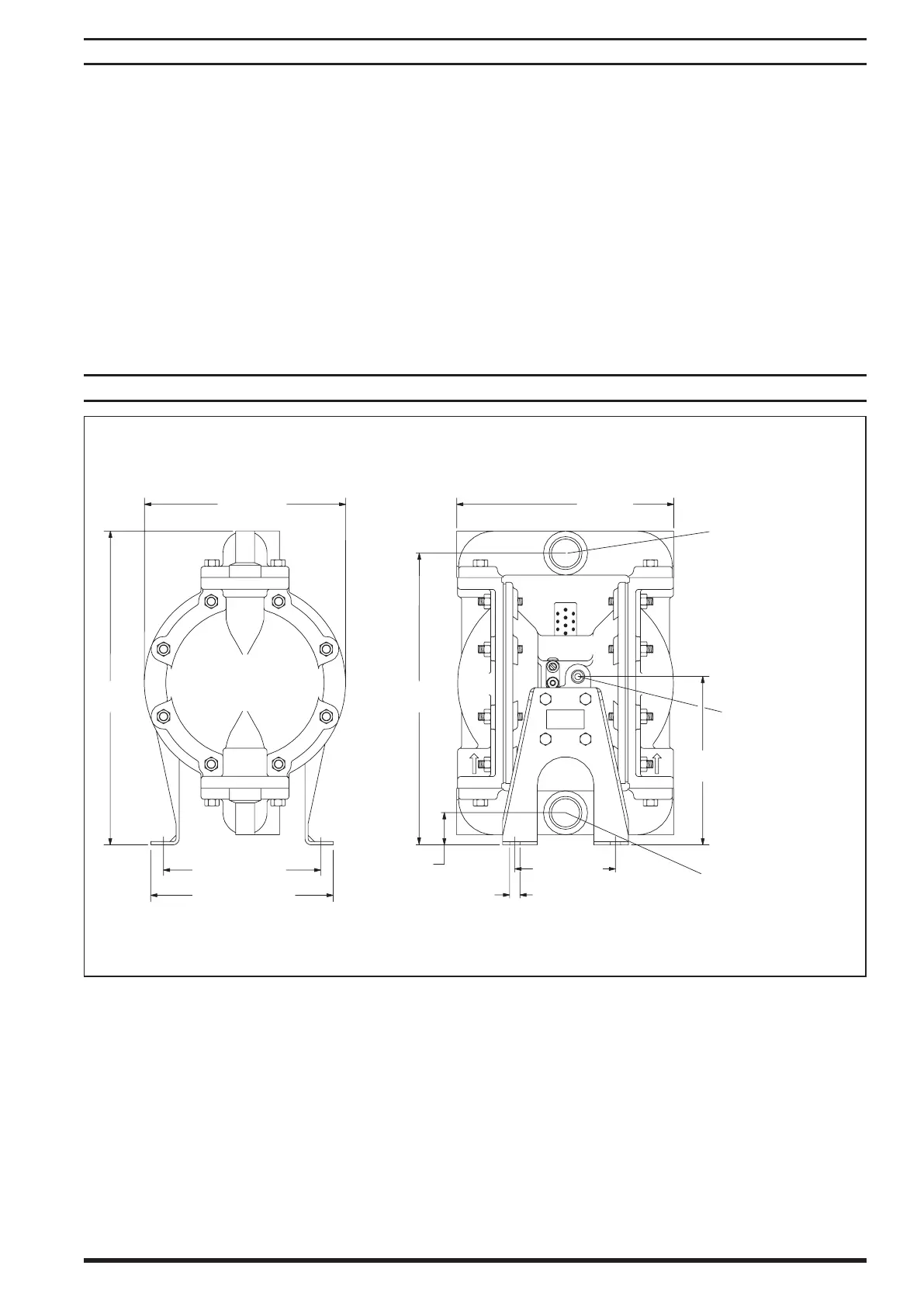

DIMENSIONAL DATA - 818820, 818821
(Dimensions shown are for reference only, they are displayed in inchesand millimeters (mm).
8”
(203 mm)
12-1/2”
(318 mm)
11-9/16”
(294 mm)
8-9/16”
(217.5 mm)
4”(102 mm)
1-1/4” (32 mm)
7-5/16” (186 mm)
Air Inlet
1/4-18 N.P.T.F. -1
13/32” Slot (10 mm)
6-1/4”
(159 mm)
6-1/2”
(165 mm)
Outlet
Inlet
Material Outlet
1 - 11 1/2 NPTF-1 (818820)
1 - 11 BSP (818821)
Material Inlet
1 - 11 1/2 NPTF-1 (818820)
1 - 11 BSP (818821)
Figure 6
