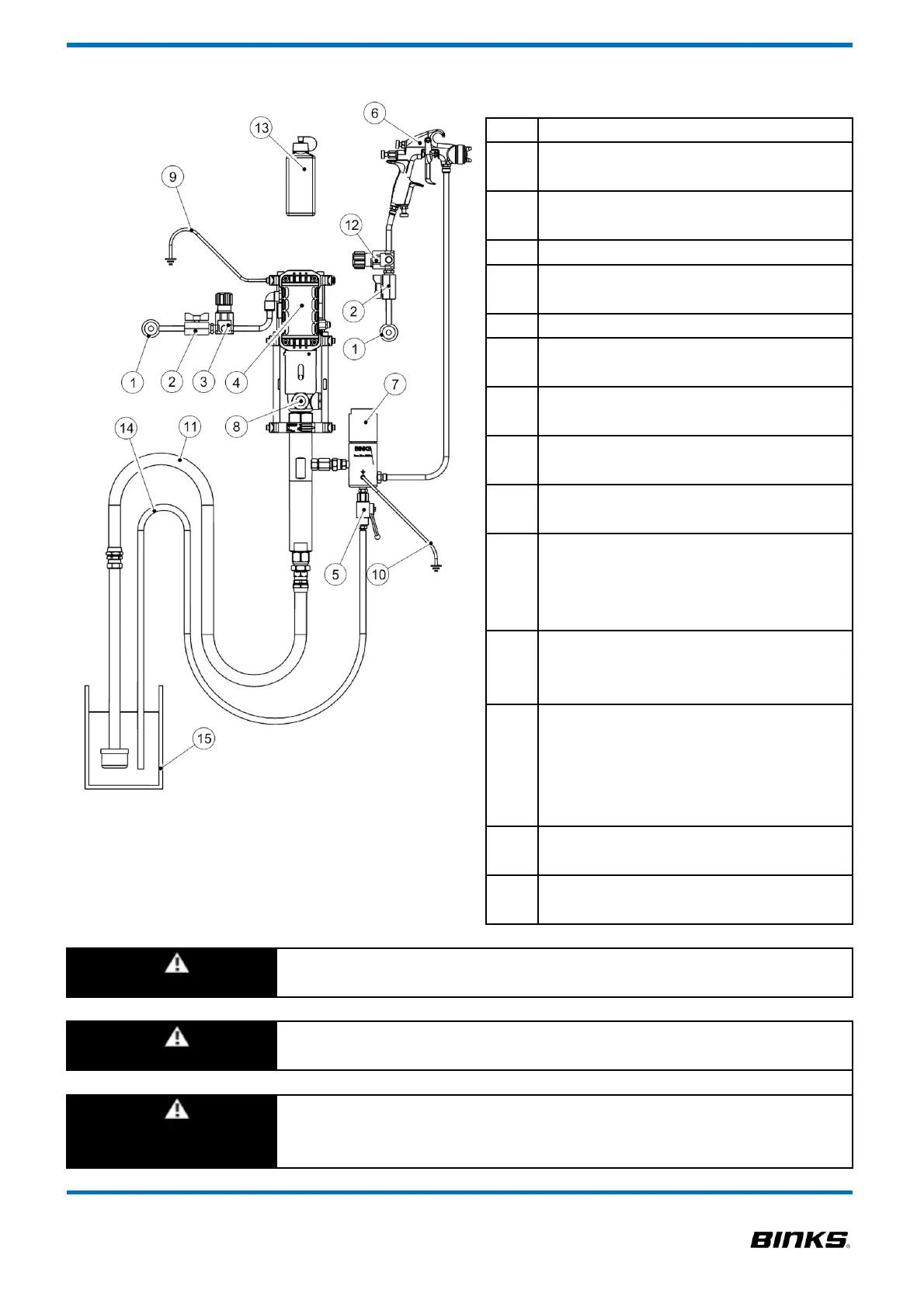

FLUID CONTAINER
WARNING
WEAR EYE PROTECTION WHEN OPERATING THIS EQUIPMENT
WARNING
PUMP MUST BE GROUNDED BEFORE OPERATING, TO PREVENT STATIC CHARGES.
SPRAY GUN
7
FLUID FILTER (IF FITTED)
8
LUBRICATION CUP & LEVEL
9
EARTH CABLE AIR MOTOR
10
EARTH CABLE FLUID FILTER (IF FITTED)
11
FLUID SUCTION HOSE/SUCTION
TUBE/GRAVITY HOPPER - DEPENDING ON
MODEL
12
AIR PRESSURE REGULATOR (SPRAY GUN)
(IF FITTED)
13
3
AIR PRESSURE REGULATOR
BINKS PUMP
14
RELIEF/RETURN HOSE (IF FITTED)
PUMP OPERATION AND CLEANING
AIR SUPPLY
2
AIR SHUT OFF VALVE (IF FITTED)
WARNING
HOSES MUST HAVE A SUITABLE WORKING PRESSURE ABOVE THE MAXIMUM
PRESSURE POSSIBLE.
5
FLUID PRESSURE RELIEF VALVE (IF FITTED)
LUBRICANT
0114-016099 SOLVENT BASED MATERIALS
0114-016100 WATER BASED MATERIALS
