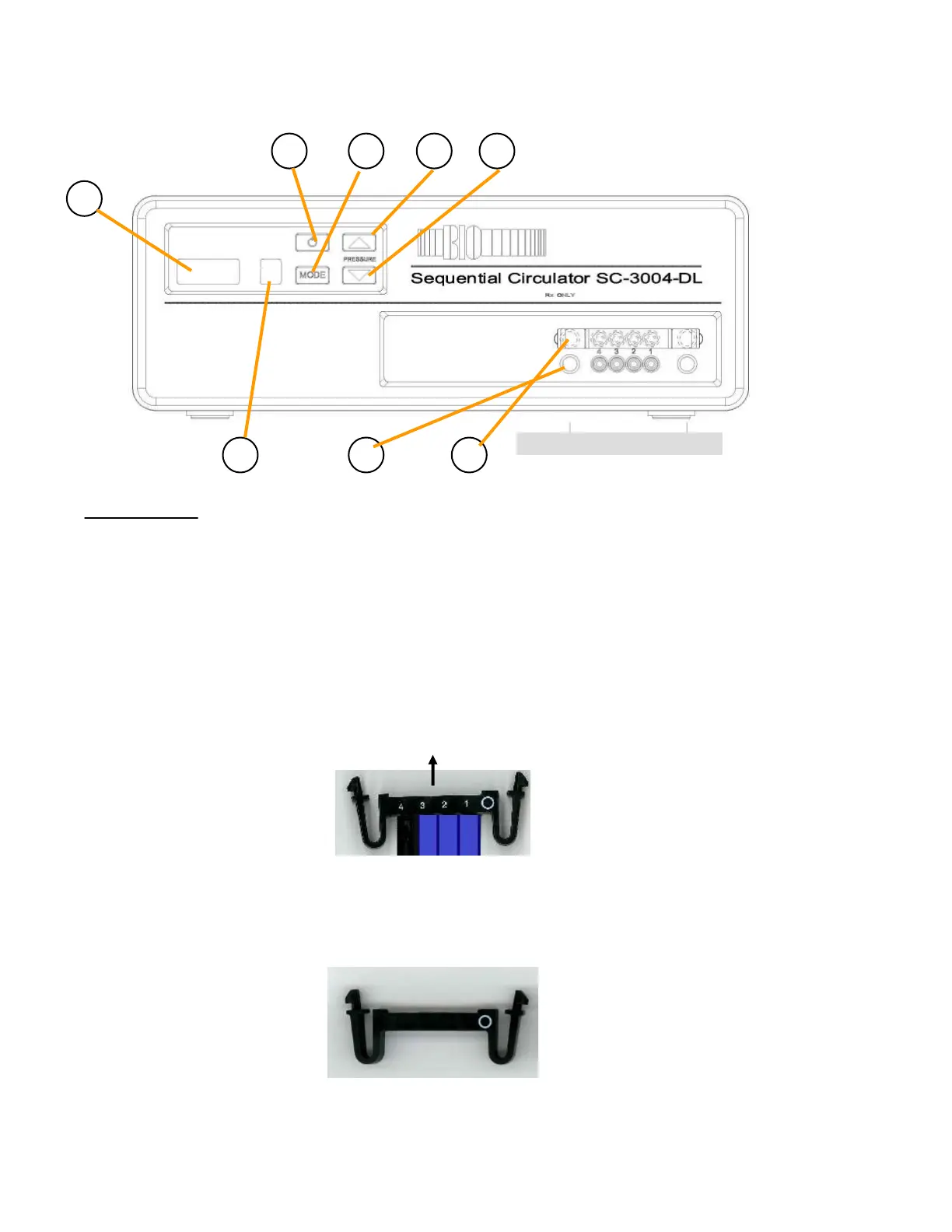

Figure 1, Front of Pump
7
FRONT OPERATING PANEL:
Key Funcon
1. POWER ON/OFF BUTTON
2. MODE BUTTON
3. INCREASE BUTTON
4. DECREASE BUTTON
5. LED DISPLAY
6. CHAMBER NUMBER LED
7. RECEPTOR PORTS FOR TUBING LATCH CONNECTORS
PORTS #1-4
Figure 2, Latch Connectors on the ends of the garment tubing
8. AUXILIARY AIR SUPPLY PORT FOR BILATERAL USE (WITH BLOCKER BAR
INSTALLED)
Figure 3, Blocker Bars placed on auxiliary ports for single garment use
8 7 6
5
4 3 2 1
