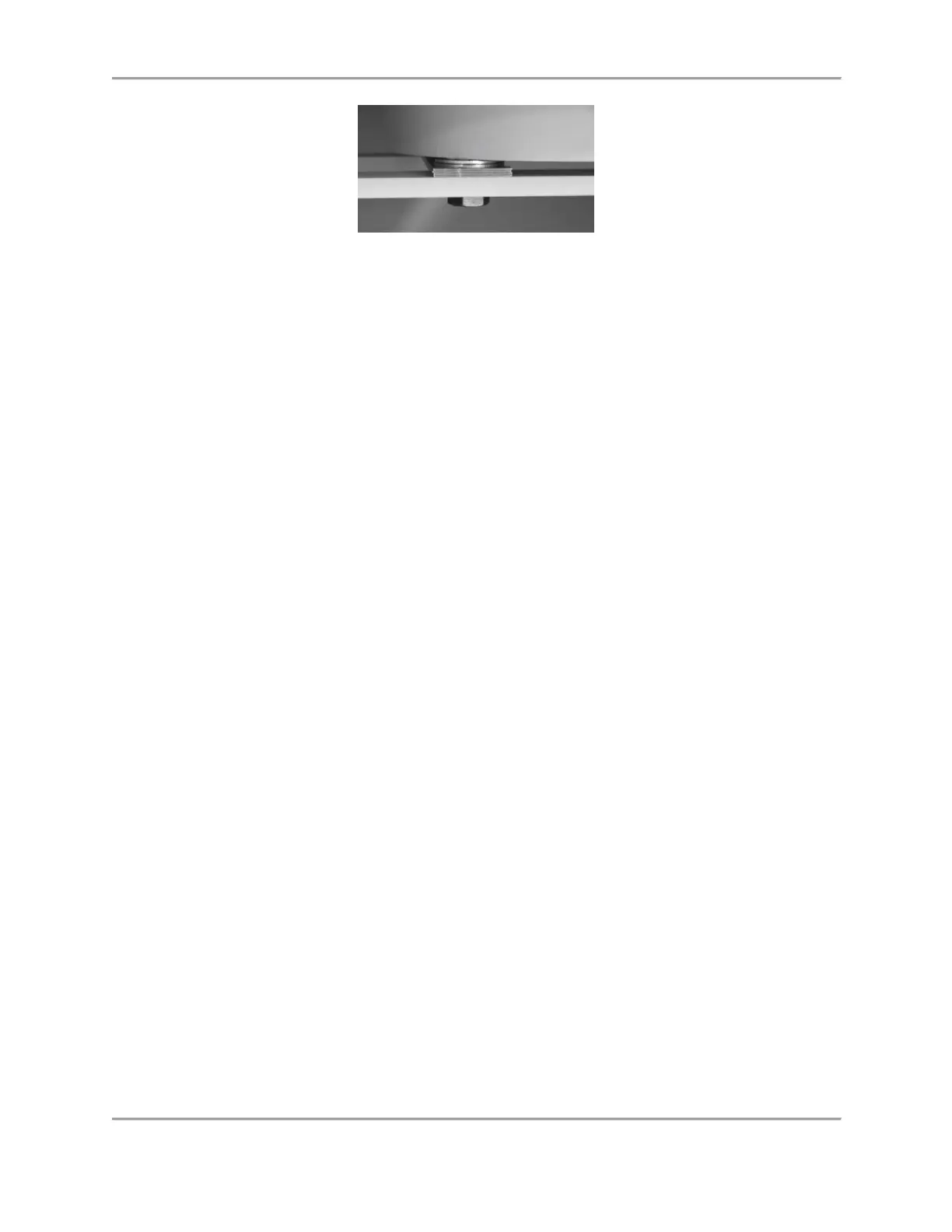

Figure 2.1. Shims

Installing the L-Block Shield

1. Insert a 3/8” shackle through the holes and use a block and tackle to hoist the shield into

position.

Note: The L-block Shield can be hoisted using the two lifting holes located on each side of

the shield near the viewing area and the lifting eye on the back of the L-block Shield.

2. Lower the L-block Shield onto the countertop and slide it into position ensuring it fits over

the Dose Calibrator detector hole in the cabinet counter top.

Note: For model 244-205 only, install the Lead Brick Cave (if ordered) after installing the

chamber.

Installing the Dose Calibrator Chamber

Note: Two people are required to complete the following procedure.

1. Open the left cabinet door and fully pull out the top left shelf.

2. The Lead Tray and the Access Door and metal spacer on the top left shelf are wrapped. They

must be removed, unwrapped, and set aside to be used later.

3. Depress the tabs located on each side of the slide tray and slide the shelf straight out to

remove.

4. Feed one end of the chamber-to-display cable from the top of the cabinet through the hole

on the right side of the cabinet where the Display Stand Arm mounts.

5. From the inside of the cabinet, take the chamber-to display cable and feed it through the

cutout in the top rear of the center vertical divider inside the cabinet.

6. Run the cable into the shielded chamber support from the back under the cabinet top.

7. Raise the chamber up from inside the cabinet through the L-Block Shield.

8. With one person supporting the chamber from above, have a second person slide the lead

tray into the opening at the bottom of the Dose Calibrator Shield and lower the chamber

down ensuring it rests on the lead tray.

Note: If the top of the chamber is below the top of the L-Block (chamber shield), lift the

chamber up and slide the metal spacer in under the chamber to raise the chamber height.

9. Rotate the chamber ensuring the connectors face the opening in the cabinet door and plug

the chamber RJ-12 cable into the chamber connector.
